Parts Location

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

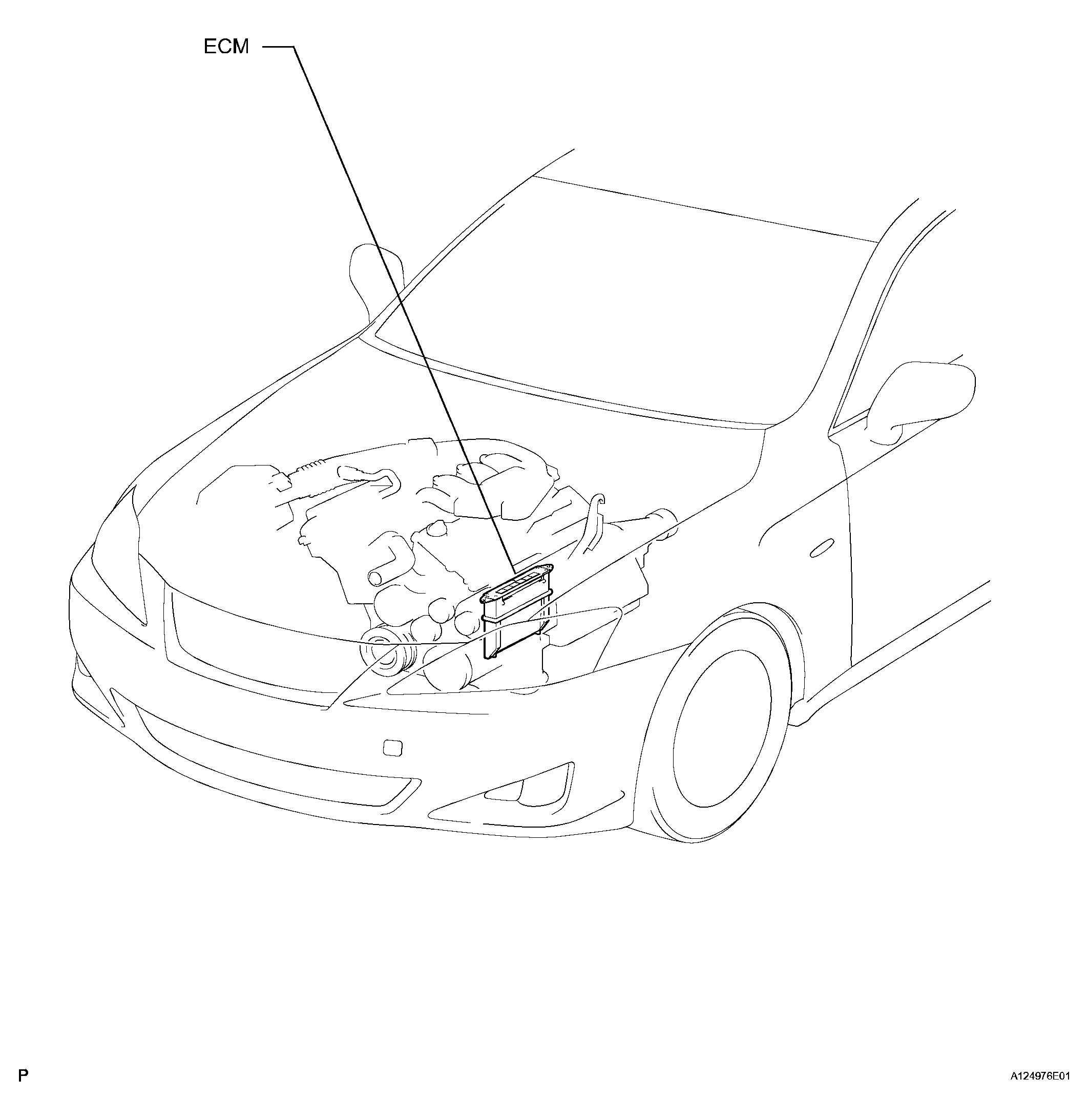

Fig 1: Identifying Ignition System Parts Location (1 Of 2)
G04052642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

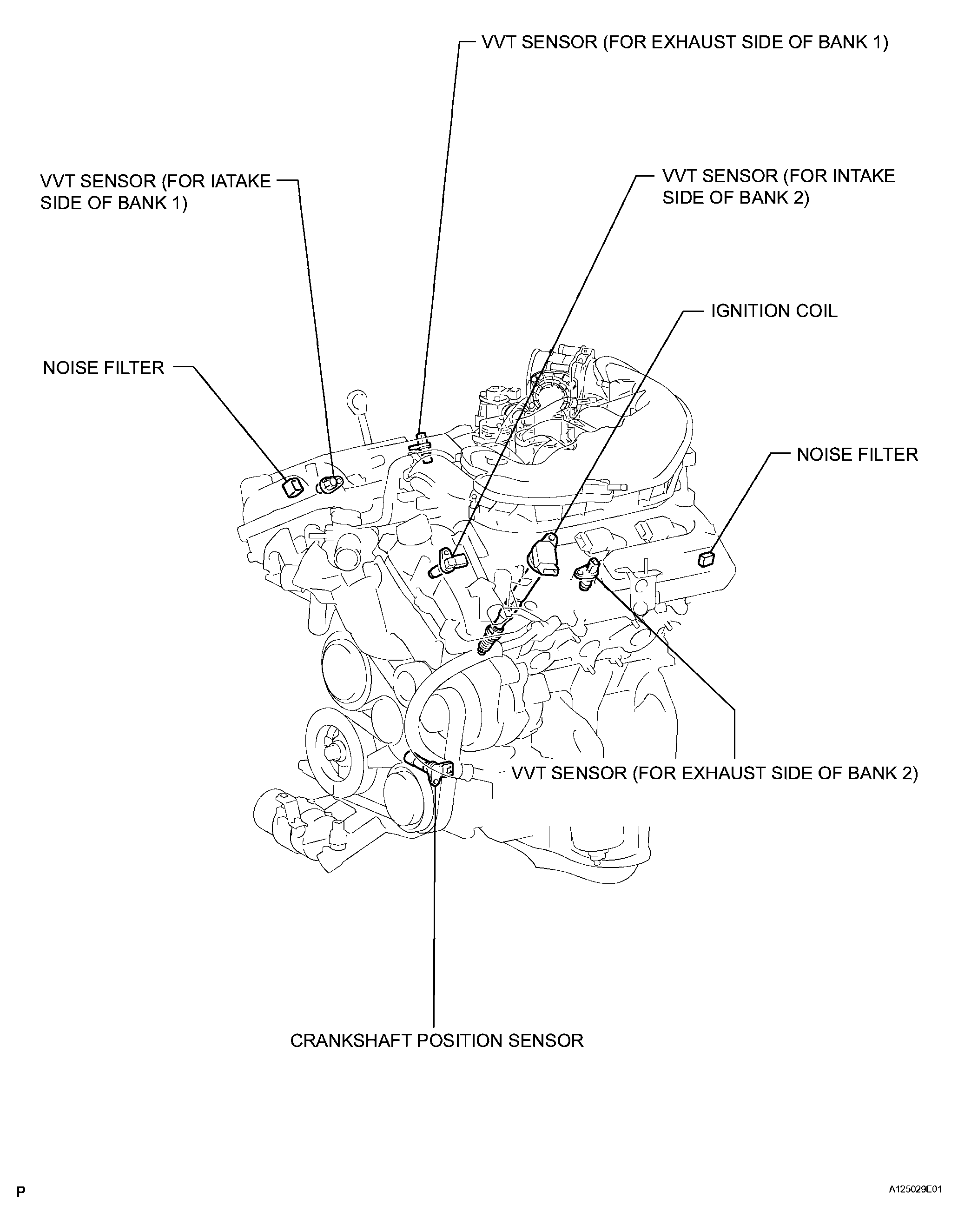

Fig 2: Identifying Ignition System Parts Location (2 Of 2)
G04052643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
