Fuel Pump Resistor: Removal
WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL
)
- REMOVE ENGINE ROOM SIDE COVER RH (See REMOVAL
)
- REMOVE FUEL PUMP RESISTOR

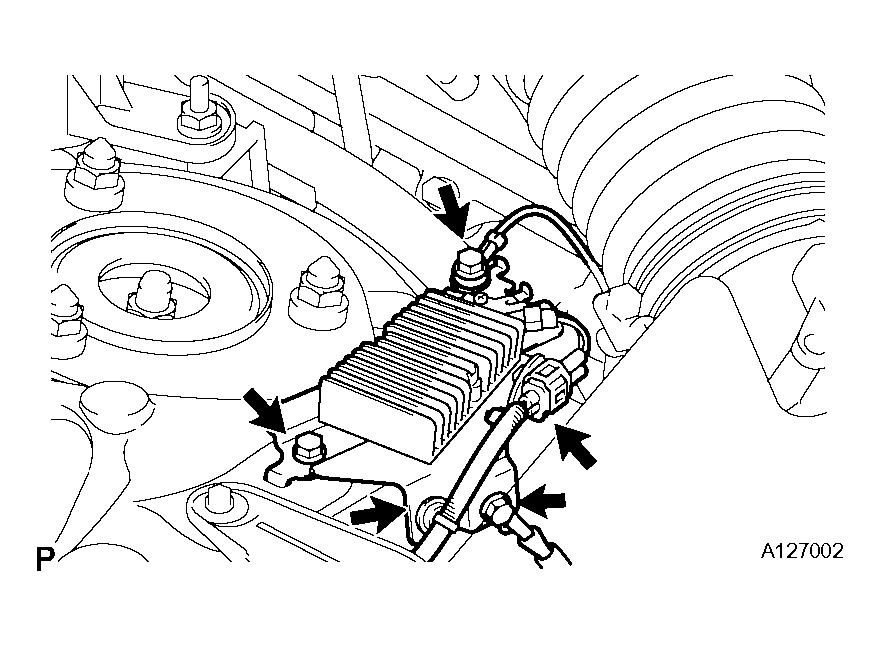

- Disconnect the connector and clamp from the fuel pump resistor.
- Remove the 3 bolts and fuel pump resistor, and disconnect the ground wires.
