DTC B2282 Vehicle Speed Signal Malfunction (Cable-Information does not Match to Bean-Information) ; DTC B2283 Vehicle Speed Sensor Malfunction: Description
WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
The power source control ECU and the combination meter are connected by a cable and the BEAN. DTC B2282 is output when: 1) the cable information and BEAN information are inconsistent; and 2) a malfunction is detected between the vehicle speed sensor and combination meter.
DTC DETECTION CONDITION CHART
| DTC No. | DTC Detection Condition Trouble Area | Trouble Area |
|---|---|---|
| B2282 | When both conditions below are met:
|
|

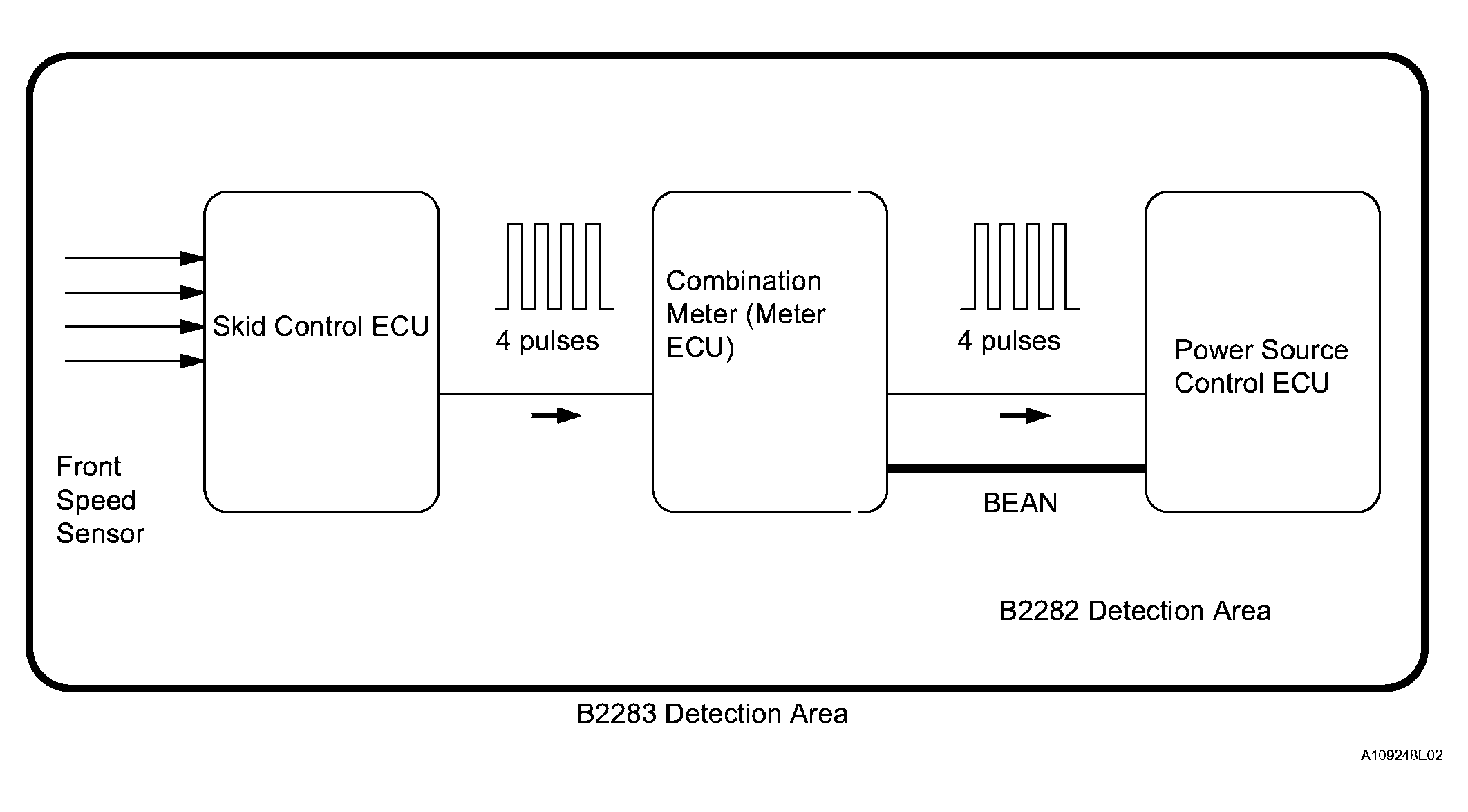

The skid control ECU converts these signals into 4-pulse signals and sends them to the combination meter. After this signal is converted into a more precise rectangular waveform by the waveform shaping circuit inside the combination meter, it is then transmitted to the power source control ECU. The power source control ECU determines the vehicle speed based on the frequency of these pulse signals.
DTC DETECTION CONDITION CHART
| DTC No. | DTC Detection Condition | Trouble Area |
|---|---|---|
| B2283 | When both conditions below are met:
|
|
