TS and CG Terminal Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

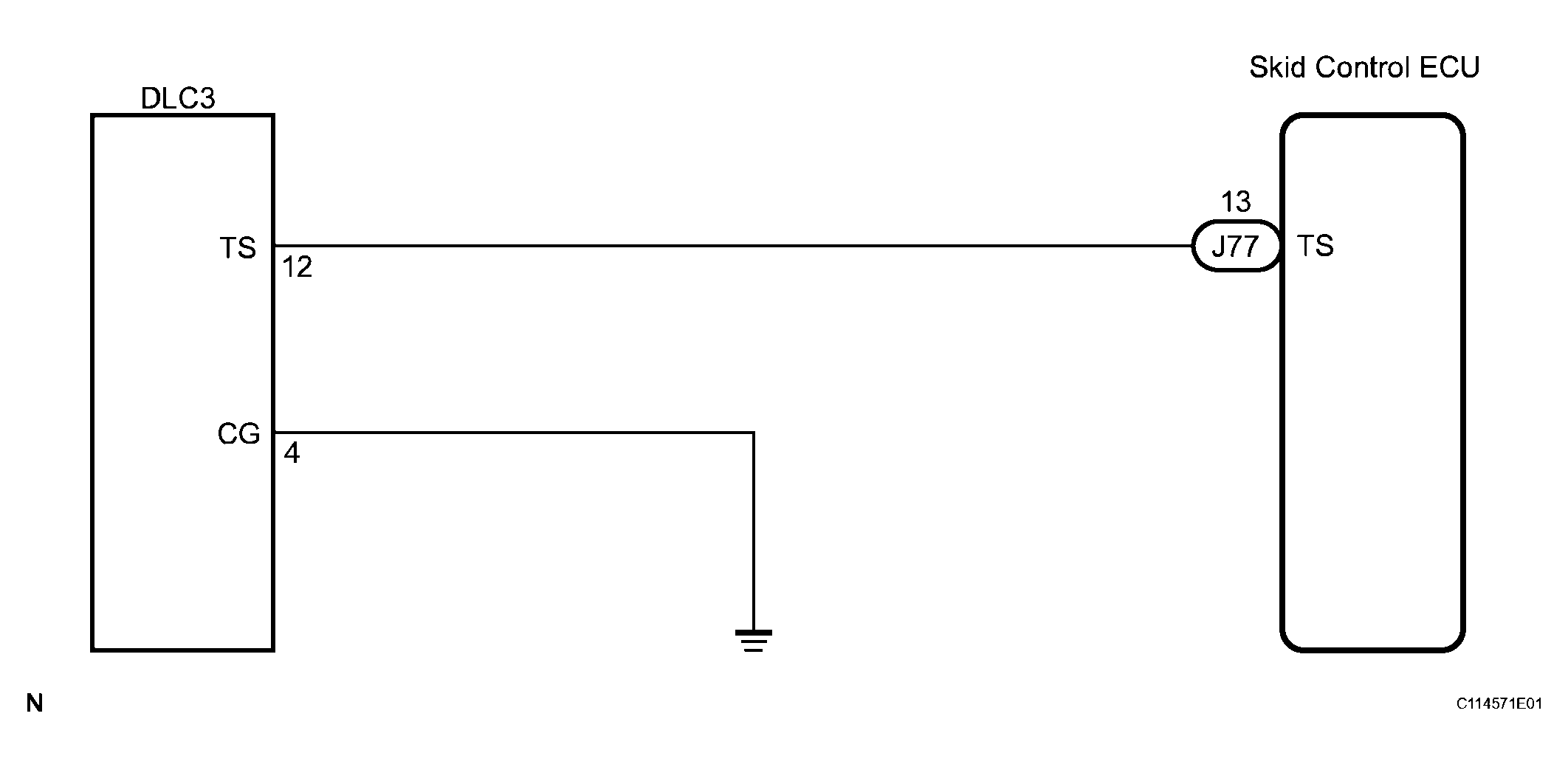

Fig 1: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: When replacing the skid control ECU, perform zero point calibration (See CALIBRATION ).

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - TS of DLC3)

Disconnect the skid control ECU connector.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION AND SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
J77-13 (TS) - J21-12 (TS)	Always	Below 1 Ω

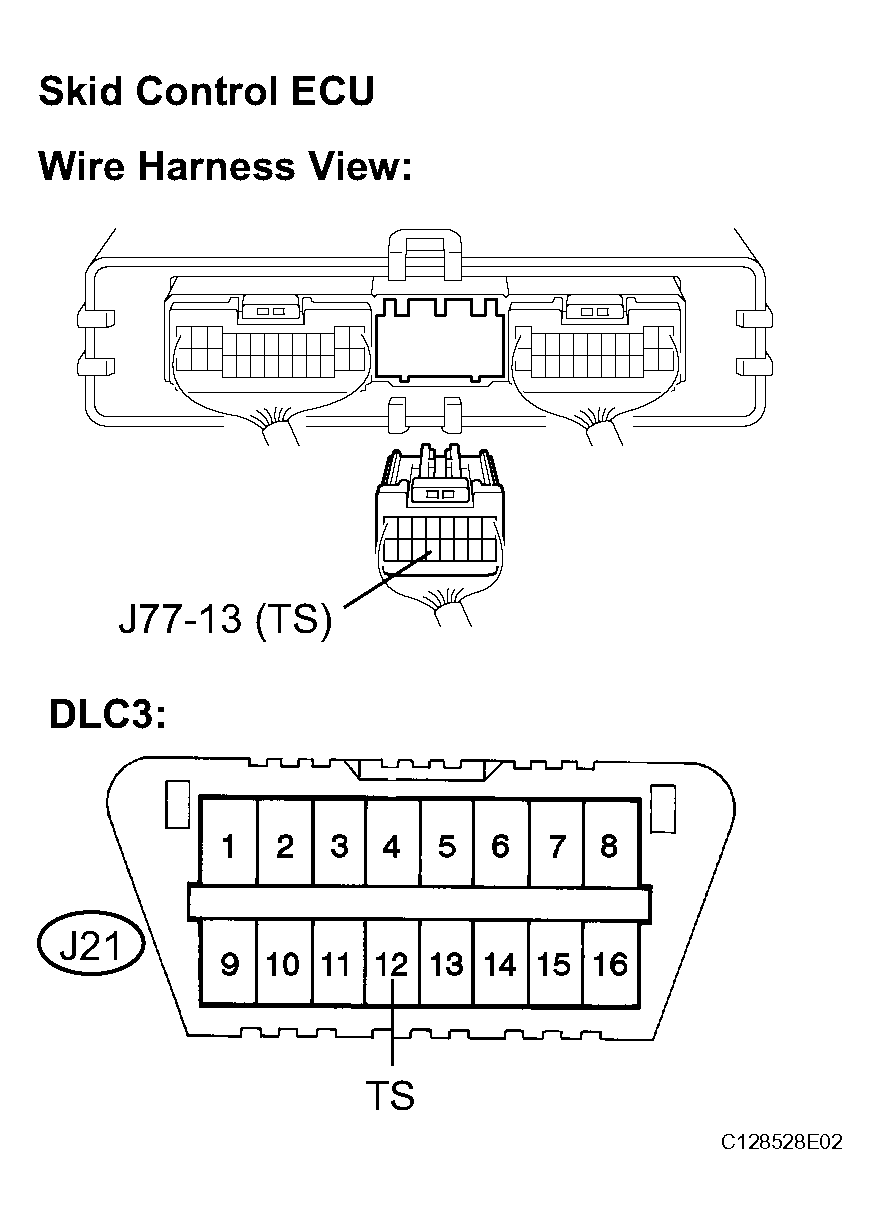

Fig 2: Checking Harness And Connector (Skid Control ECU - TS Of DLC3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : GO TO NEXT STEP

CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION AND SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
J21-4 (CG) - Body ground	Always	Below 1 Ω

Fig 3: Checking Harness And Connector (CG Of DLC3 - Body Ground)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : GO TO NEXT STEP

CHECK HARNESS AND CONNECTOR (TS of DLC3 - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION AND SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
J21-12 (TS) - Body ground	Always	10 kΩ or higher

HINT:

If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part (See PROBLEM SYMPTOMS TABLE ).

Fig 4: Checking Harness And Connector (TS Of DLC3 - Body Ground)

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : REPLACE SKID CONTROL ECU
