DTC C1305/21 Solenoid Identification Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

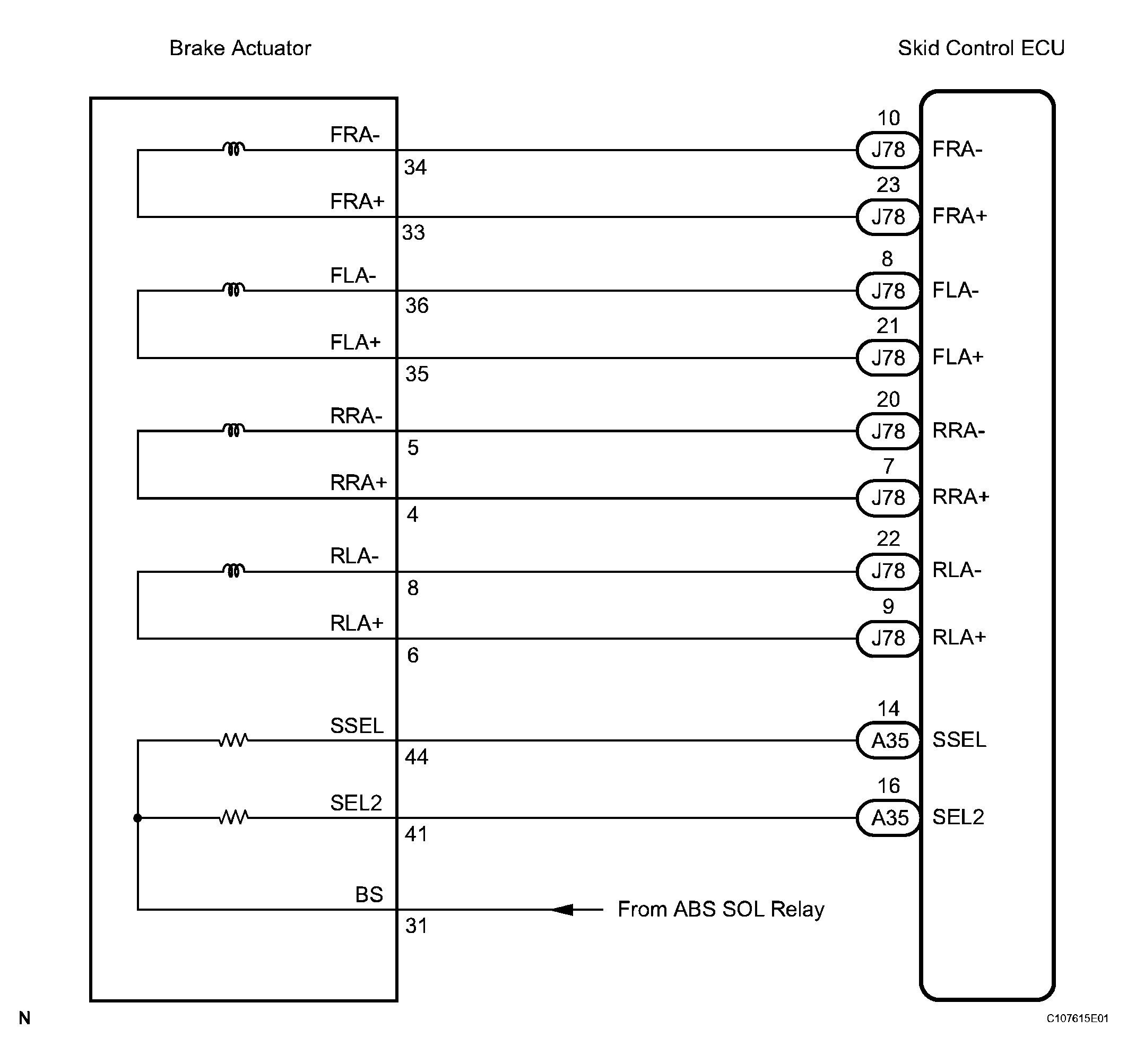

Fig 1: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: When replacing the skid control ECU, perform zero point calibration (See CALIBRATION ).

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - BRAKE ACTUATOR ASSEMBLY)

Disconnect the skid control ECU connector and the brake actuator connector.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION AND SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
A35-14 (SSEL) - A13-44 (SSEL)	Always	Below 1 Ω
A35-14 (SSEL) - Body ground	Always	10 kΩ or higher
A35-16 (SEL2) - A13-41 (SEL2)	Always	Below 1 Ω
A35-16 (SEL2) - Body ground	Always	10 kΩ or higher

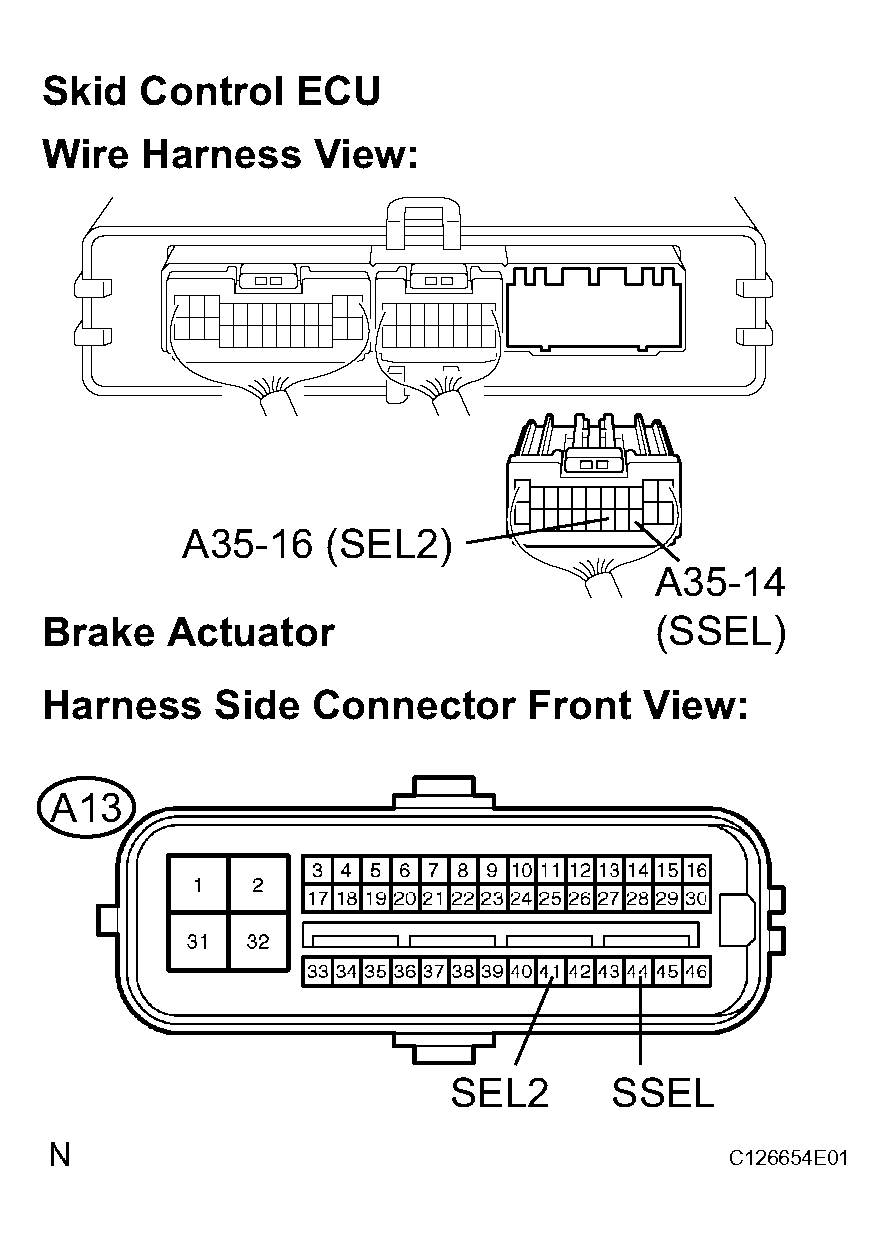

Fig 2: Checking Harness And Connector (Skid Control ECU - Brake Actuator Assembly)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : GO TO NEXT STEP

INSPECT SKID CONTROL ECU (IDENTIFICATION OUTPUT)

Reconnect the skid control ECU connector and the brake actuator connector.
Start the engine.

Measure the voltage according to the value(s) in the table below.

Standard voltage

TESTER CONNECTION AND SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
A35-14 (SSEL) - Body ground	Low (Normal)	0 V
A35-14 (SSEL) - Body ground	Middle	3.7 to 8.26 V
A35-14 (SSEL) - Body ground	High	7.8 to 14 V
A35-16 (SEL2) - Body ground	Low (Normal)	0 V
A35-16 (SEL2) - Body ground	Middle	3.7 to 8.26 V
A35-16 (SEL2) - Body ground	High	7.8 to 14 V

Fig 3: Inspecting Skid Control ECU (Identification Output)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Input voltage of SSEL and SEL2 is the same under all conditions.

NG : REPLACE BRAKE ACTUATOR ASSEMBLY

OK : GO TO NEXT STEP

RECONFIRM DTC

Turn the engine switch off.
Clear the DTC (See DTC CHECK / CLEAR ).
Drive the vehicle at the speed of 15 mph (24 km/h) or more.

Check if the same DTC is recorded (See DTC CHECK / CLEAR ).

Result

CONDITION CHART

Condition	Proceed to
DTC (C1305/21) is not output	A
DTC (C1305/21) is output	B

HINT:

If the normal system code is output (the trouble code is not output), slightly jiggle the connectors, wire harness, and fuses of the skid control ECU and brake actuator assembly. Make sure that no DTCs are output.
If any DTCs are output while jiggling a connector or wire harness of the skid control ECU and brake actuator assembly, inspect and repair the connector or wire harness.

B : REPLACE SKID CONTROL ECU

A : USE SIMULATION METHOD TO CHECK
