SKID CONTROL ECU (w/ VDIM): Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL SKID CONTROL ECU

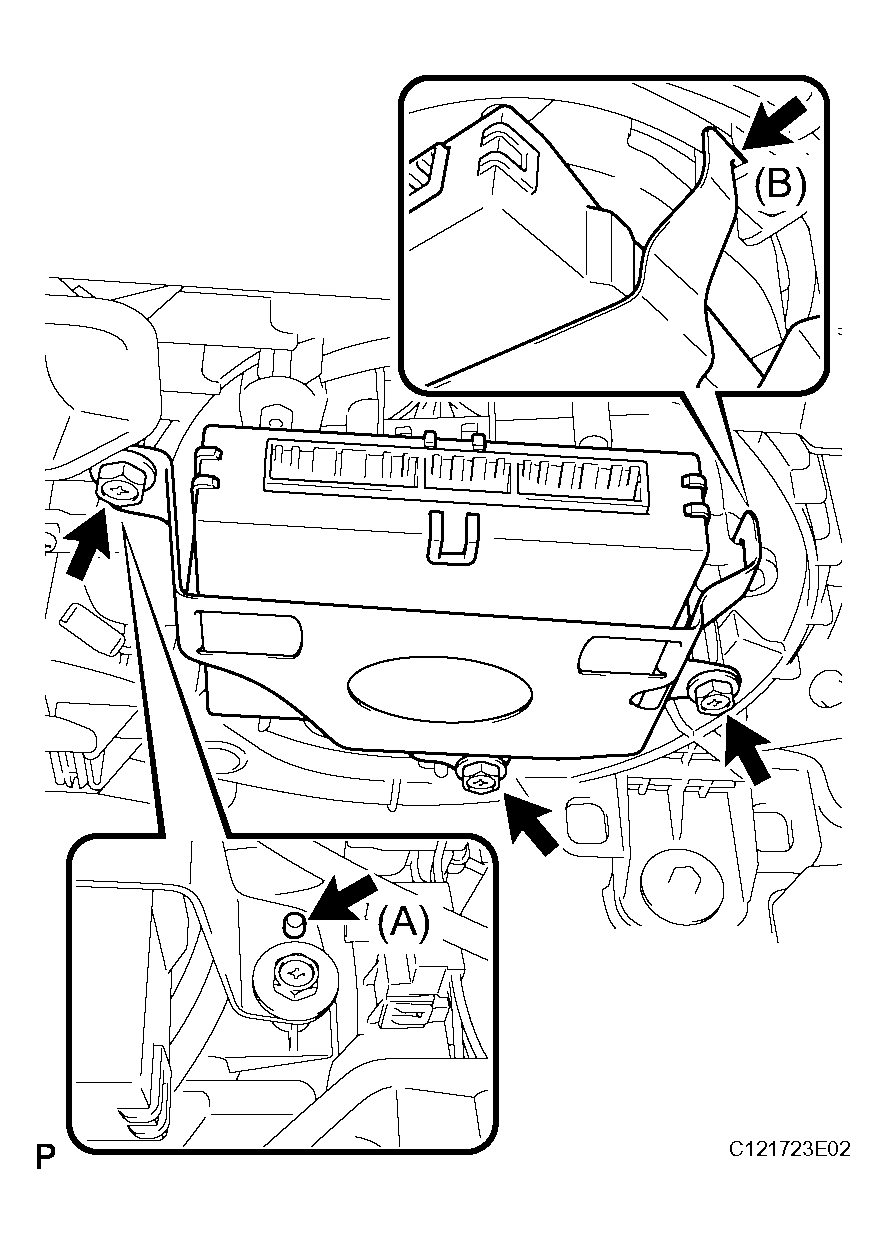

1. Install the skid control ECU with the 3 screws.

  Fig 1: Identifying Skid Control ECU With 3 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 4.8 N*m (49 kgf*cm, 42 in.*lbf)

  HINT:
  - Align positioning boss (A) of the blower assembly with the hole of the skid control ECU.
  - Securely engage the hook (B) of the skid control ECU with the blower assembly.

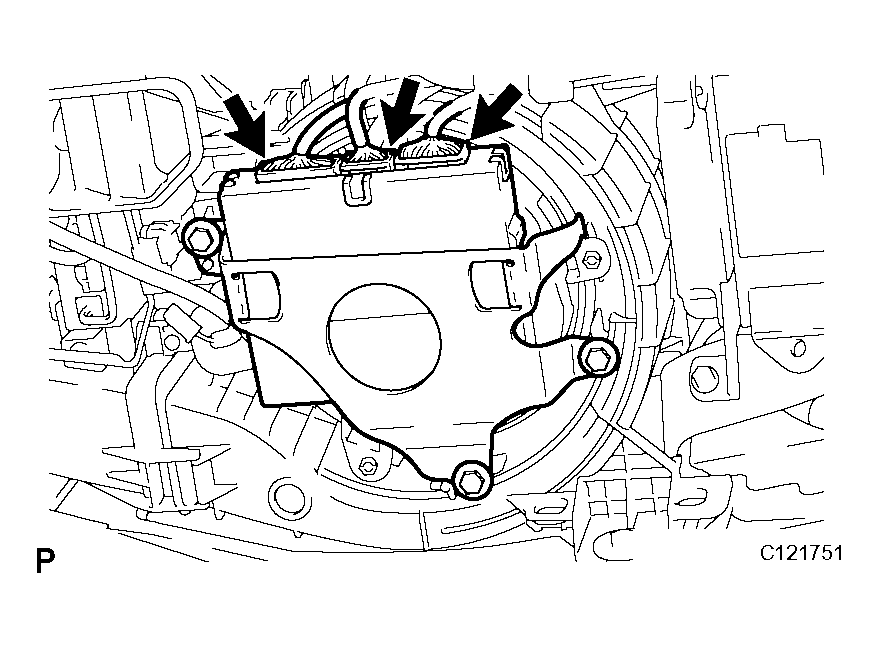

2. Connect the 3 connectors to the skid control ECU.

  Fig 2: Connecting 3 Connectors To Skid Control ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See INSTALLATION )
CHECK AND CLEAR DTC
HINT:

(See DTC CHECK / CLEAR )
