SKID CONTROL ECU (w/ VDIM): Components

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

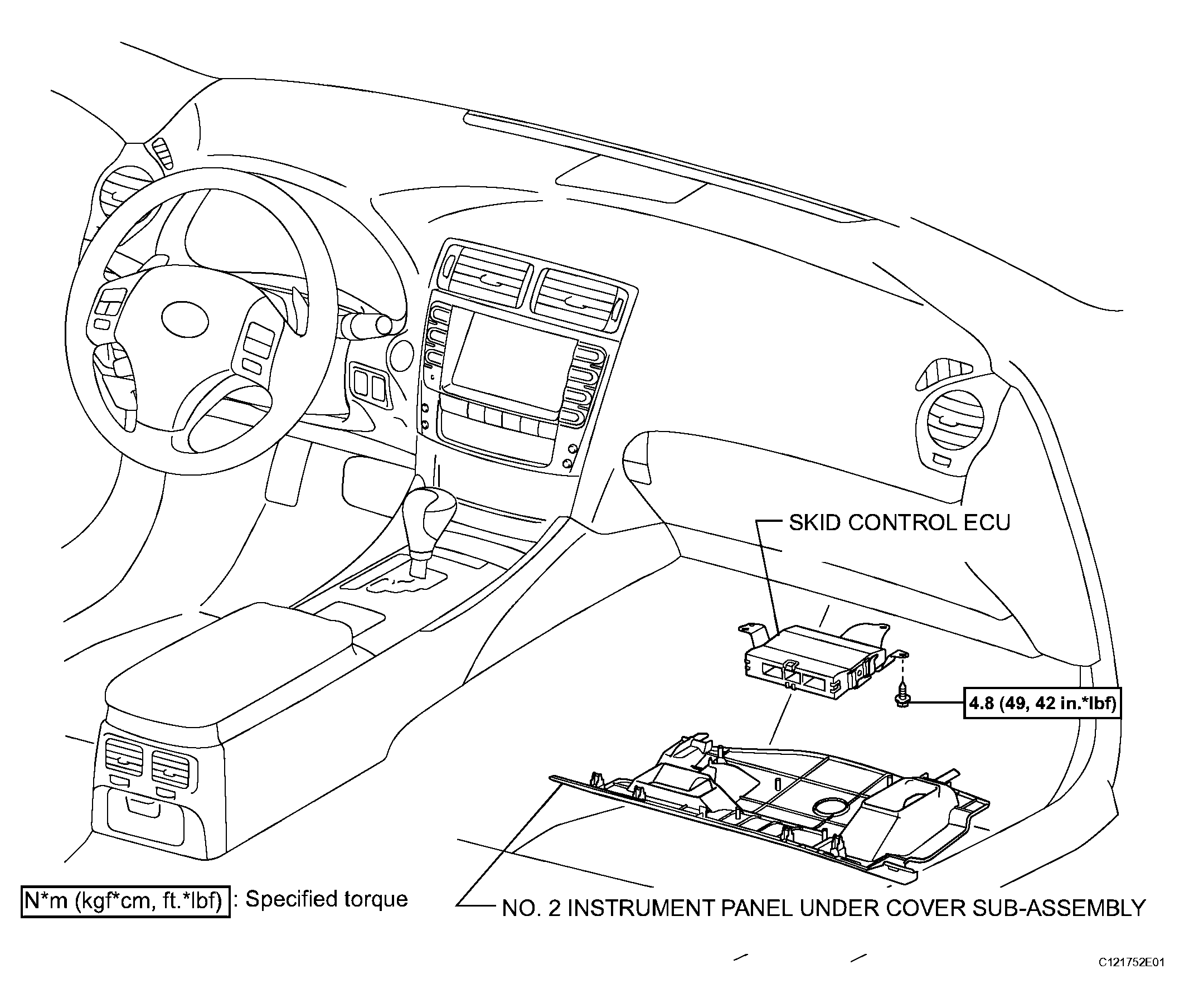

Fig 1: Skid Control ECU (W/ VDIM) Replacement Components With Torque Specifications
G04052216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
