FRONT SPEED SENSOR (for 2WD): Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT SPEED SENSOR
1. Wipe off sealant attached to the front speed sensor's fitting surface with white gasoline.
  NOTE: Prevent foreign matter from attaching to the sensor rotor.
2. Install a new front speed sensor to the hub and bearing assembly. The front speed sensor connector should be placed in the upper position.

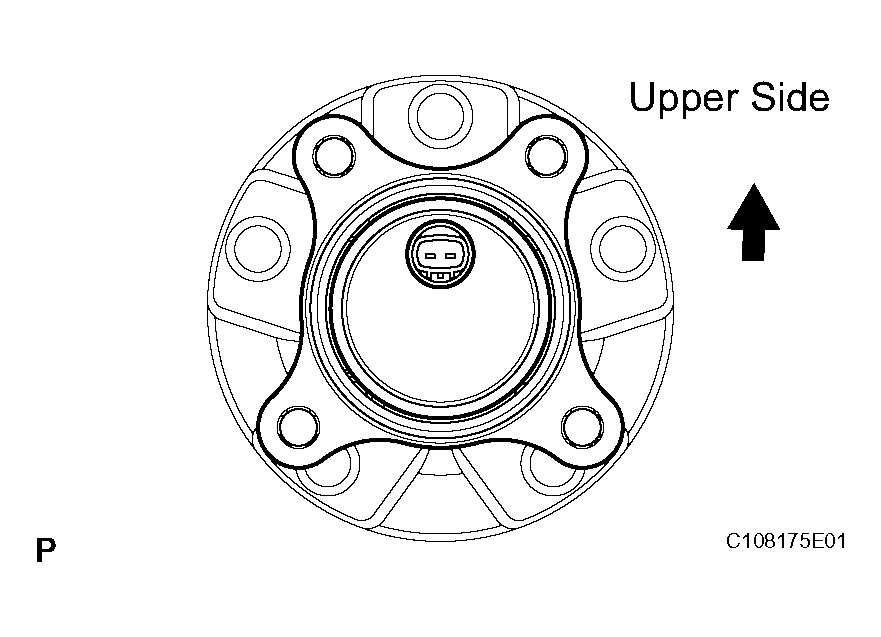

  Fig 1: Installing Front Speed Sensor To Hub And Bearing Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using the SST and press, install the skid control sensor onto the hub and bearing.

  Fig 2: Installing Skid Control Sensor Onto Hub And Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09214-76011
  NOTE:
  - Keep the sensor away from magnets.
  - Do not use a hammer on the front speed sensor.
  - Check that there is no foreign matter such as iron chips on the front speed sensor's detecting portion.
  - Slowly press the front speed sensor straight.
INSTALL FRONT AXLE HUB SUB-ASSEMBLY (See REMOVAL )
INSPECT FRONT AXLE HUB BEARING FOR LOOSENESS (See ON-VEHICLE INSPECTION )
INSPECT FRONT AXLE HUB FOR RUNOUT (See ON-VEHICLE INSPECTION )
INSTALL FRONT DISC (See REASSEMBLY )
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (See INSTALLATION )
CONNECT FRONT SPEED SENSOR
1. Connect the speed sensor connector to the front speed sensor.

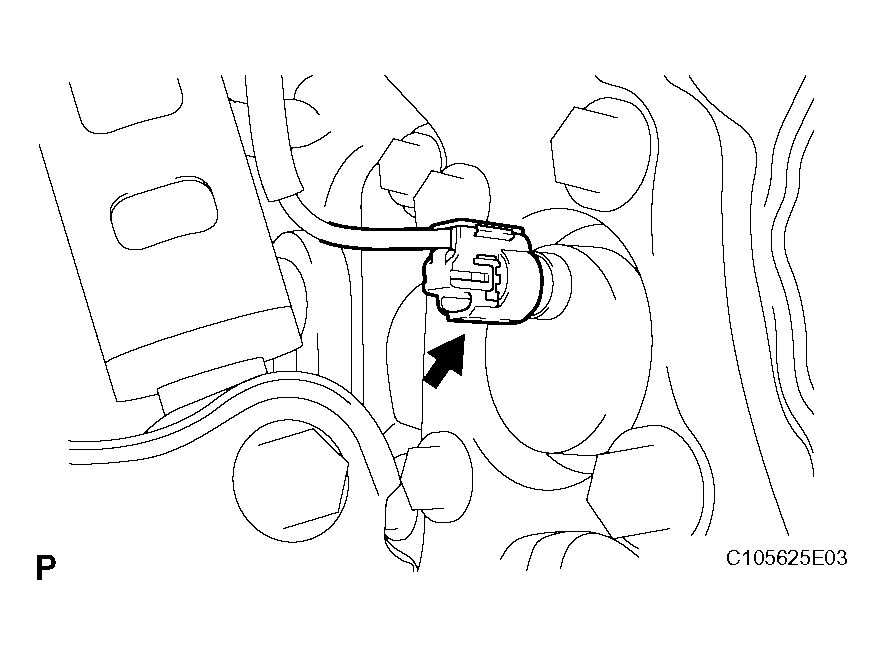

  Fig 3: Connecting Speed Sensor Connector To Front Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not twist the sensor wire.
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSPECT SPEED SENSOR SIGNAL
HINT:

(See TEST MODE PROCEDURE )
