FRONT SPEED SENSOR (for 2WD): Components

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

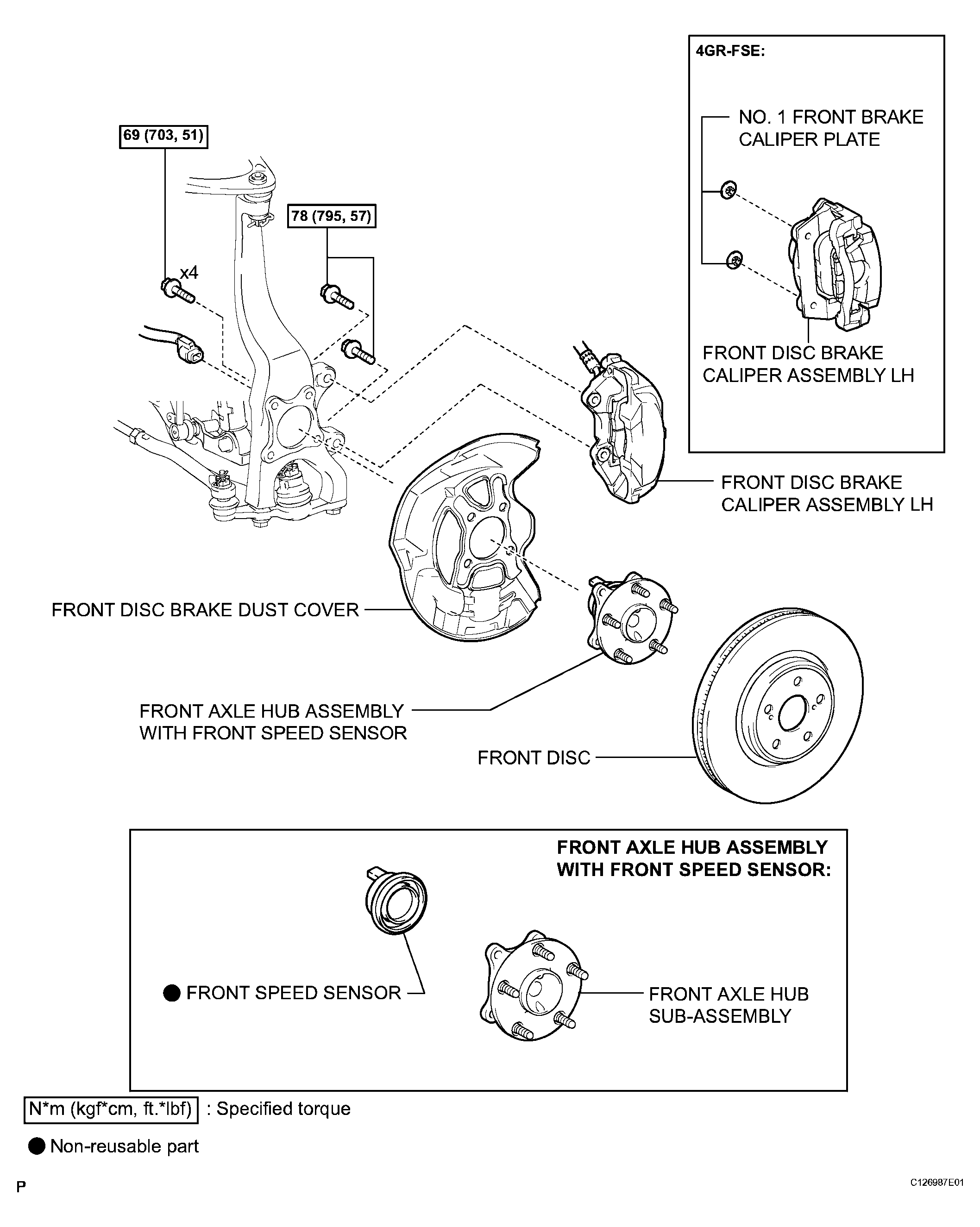

Fig 1: Identifying Front Speed Sensor (For 2WD) Components
G04052194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
