Section 11 (Charging (2GR-FSE)): Generator: Components

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Generator Replacement Components With Torque Specifications (1 Of 2)
G04052785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

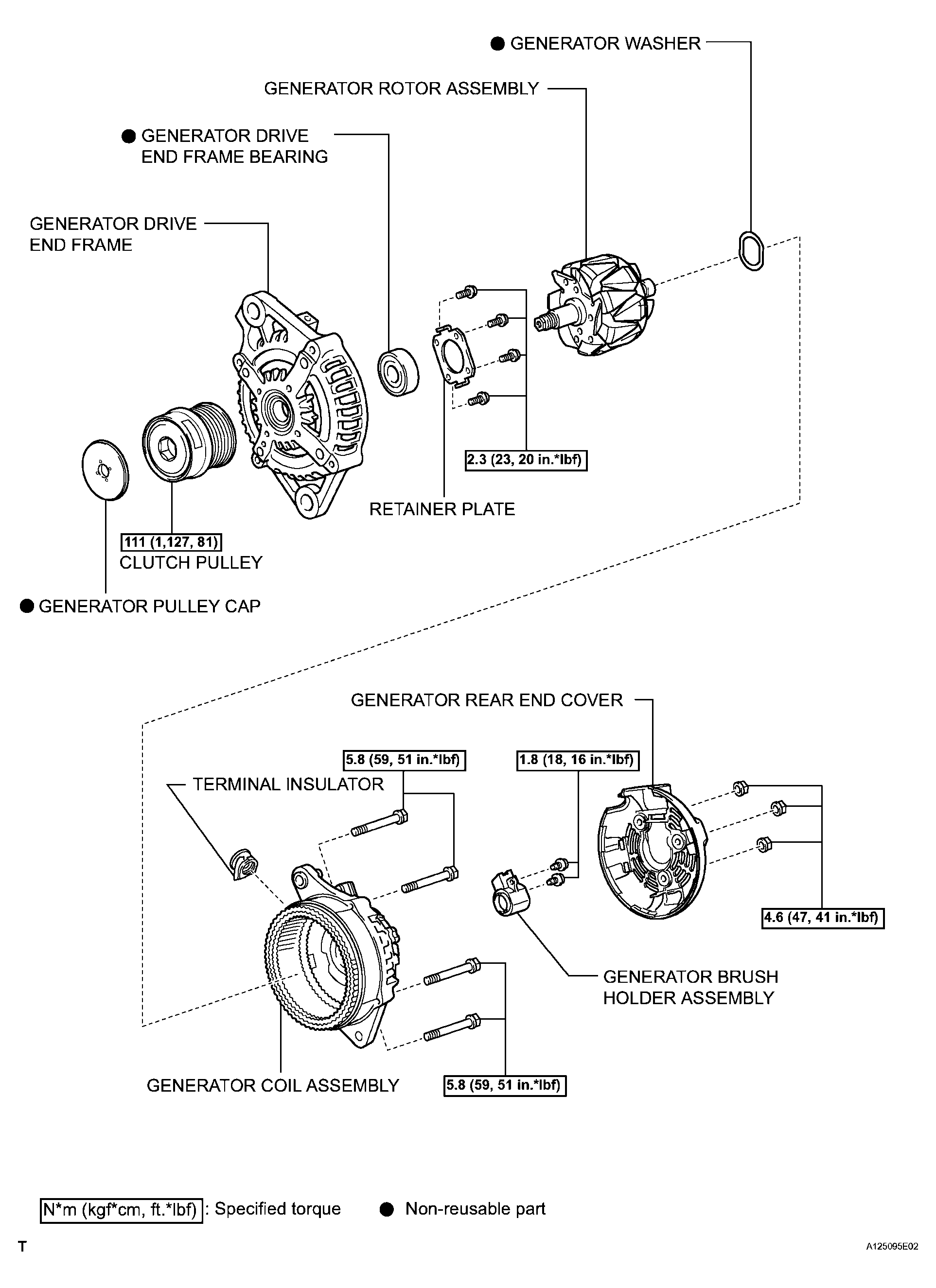

Fig 2: Generator Replacement Components With Torque Specifications (2 Of 2)
G04052786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
