System Diagram

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

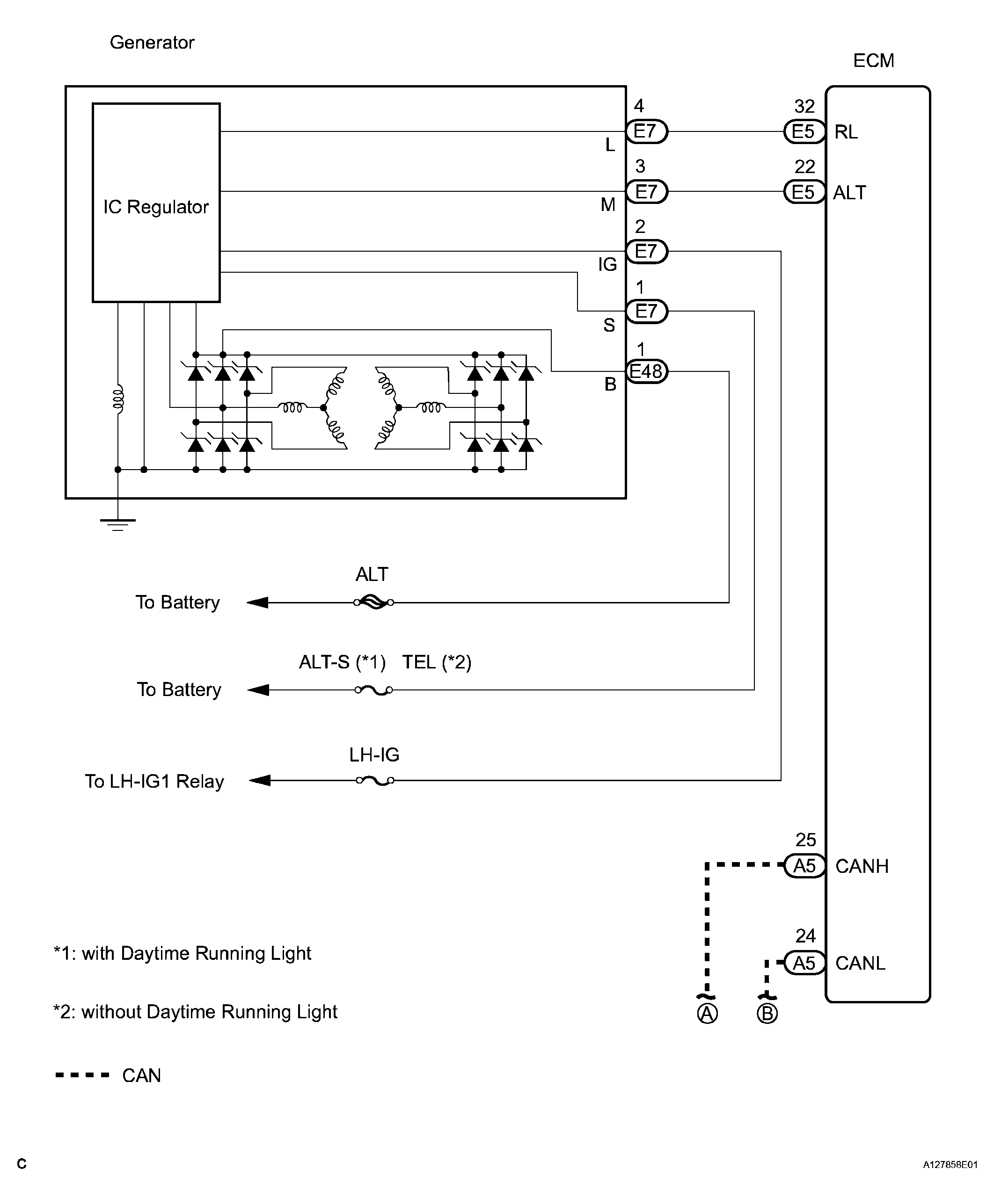

Fig 1: Charging System Diagram (1 Of 2)
G04052777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

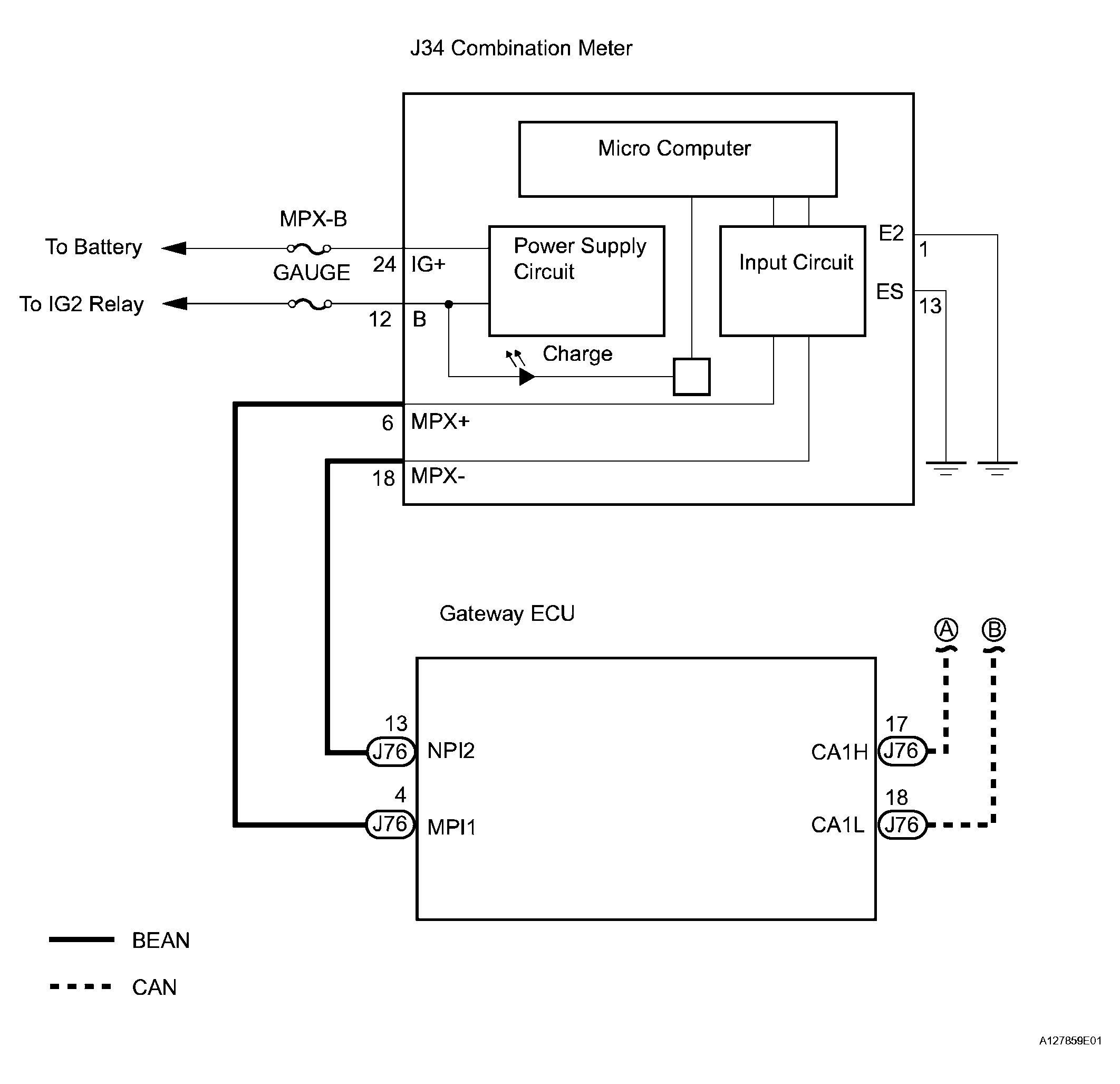

Fig 2: Charging System Diagram (2 Of 2)
G04052778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
