Oil Pump: Components

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

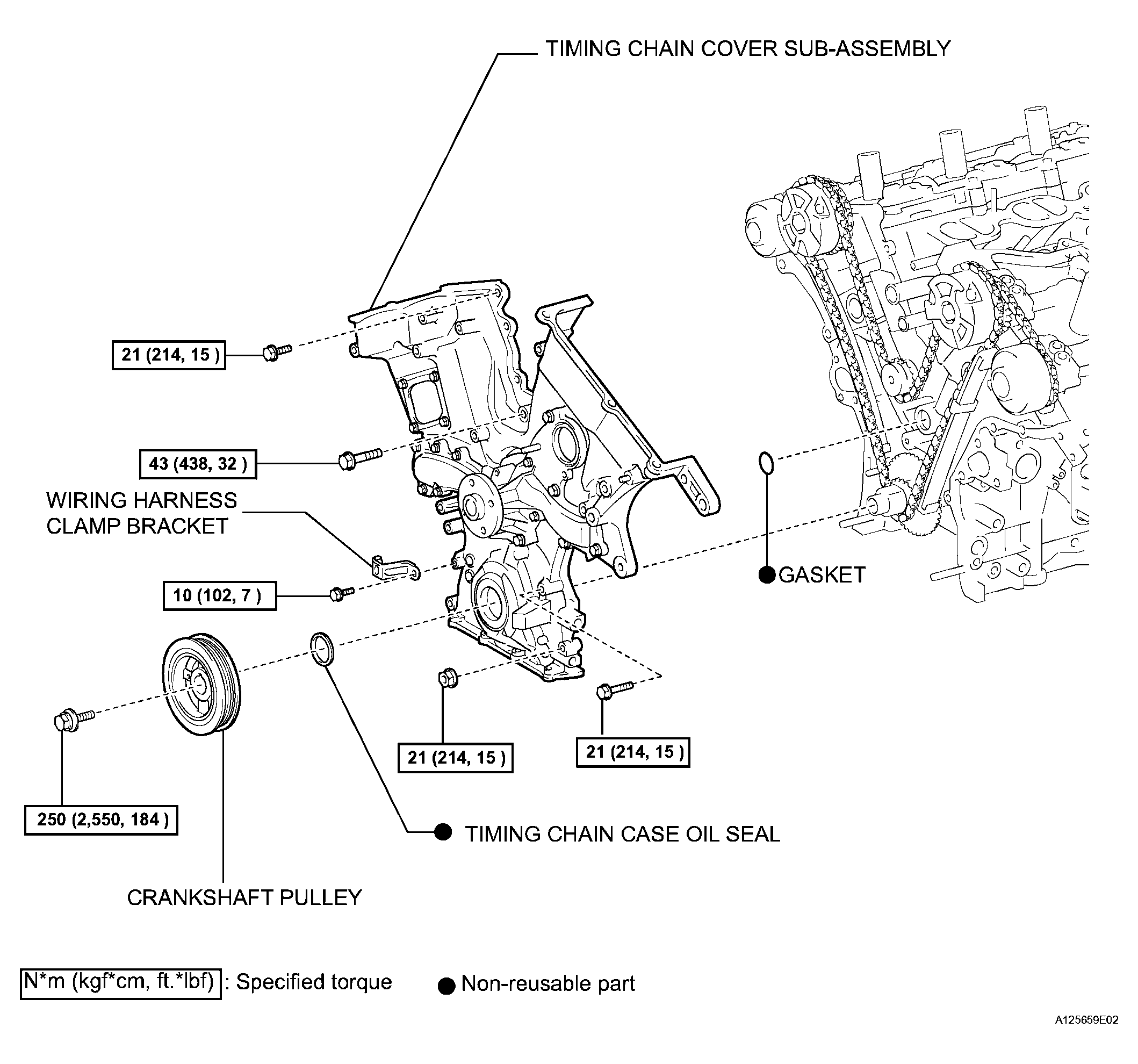

Fig 1: Oil Pump Replacement Components With Torque Specifications (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

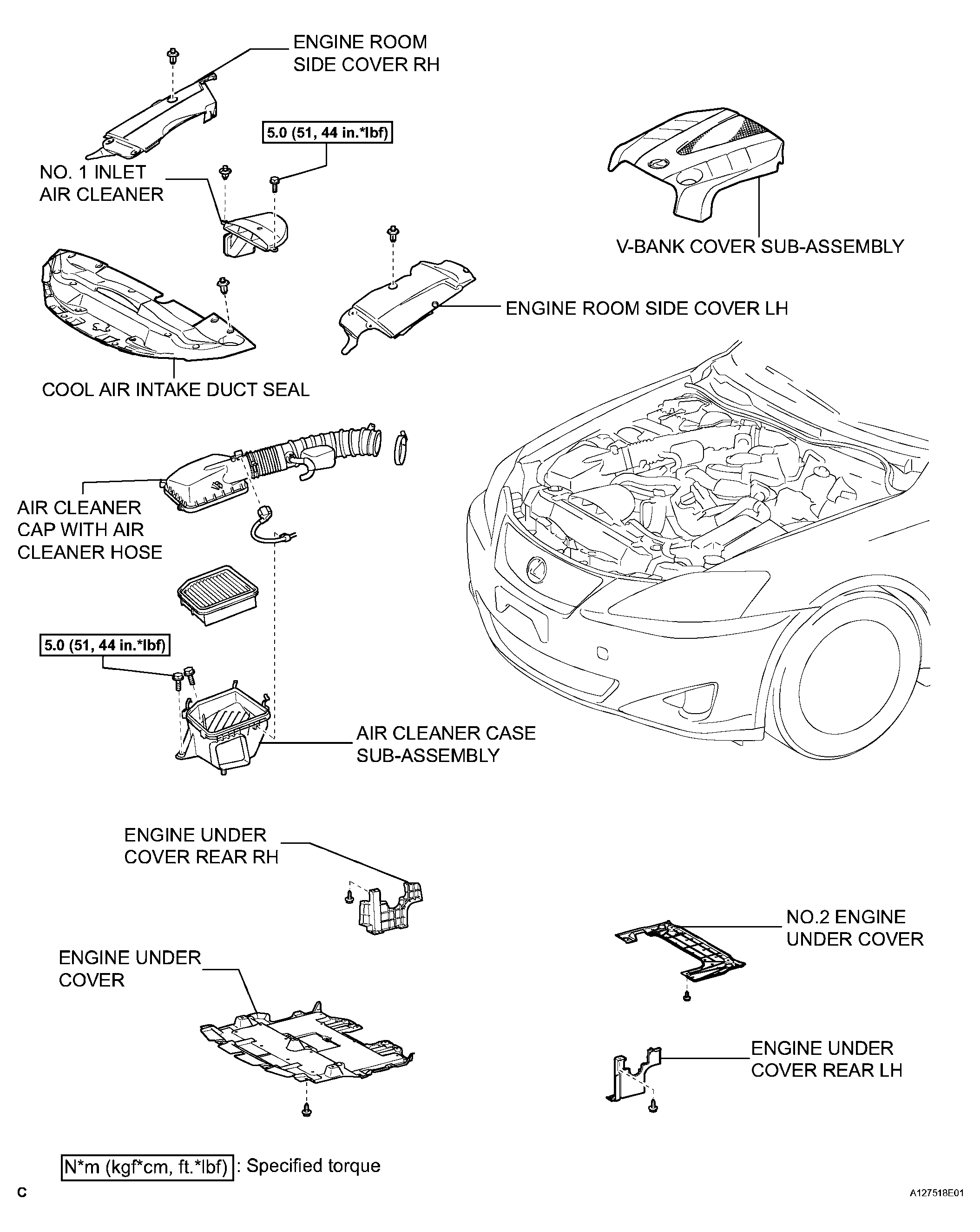

Fig 2: Oil Pump Replacement Components With Torque Specifications (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

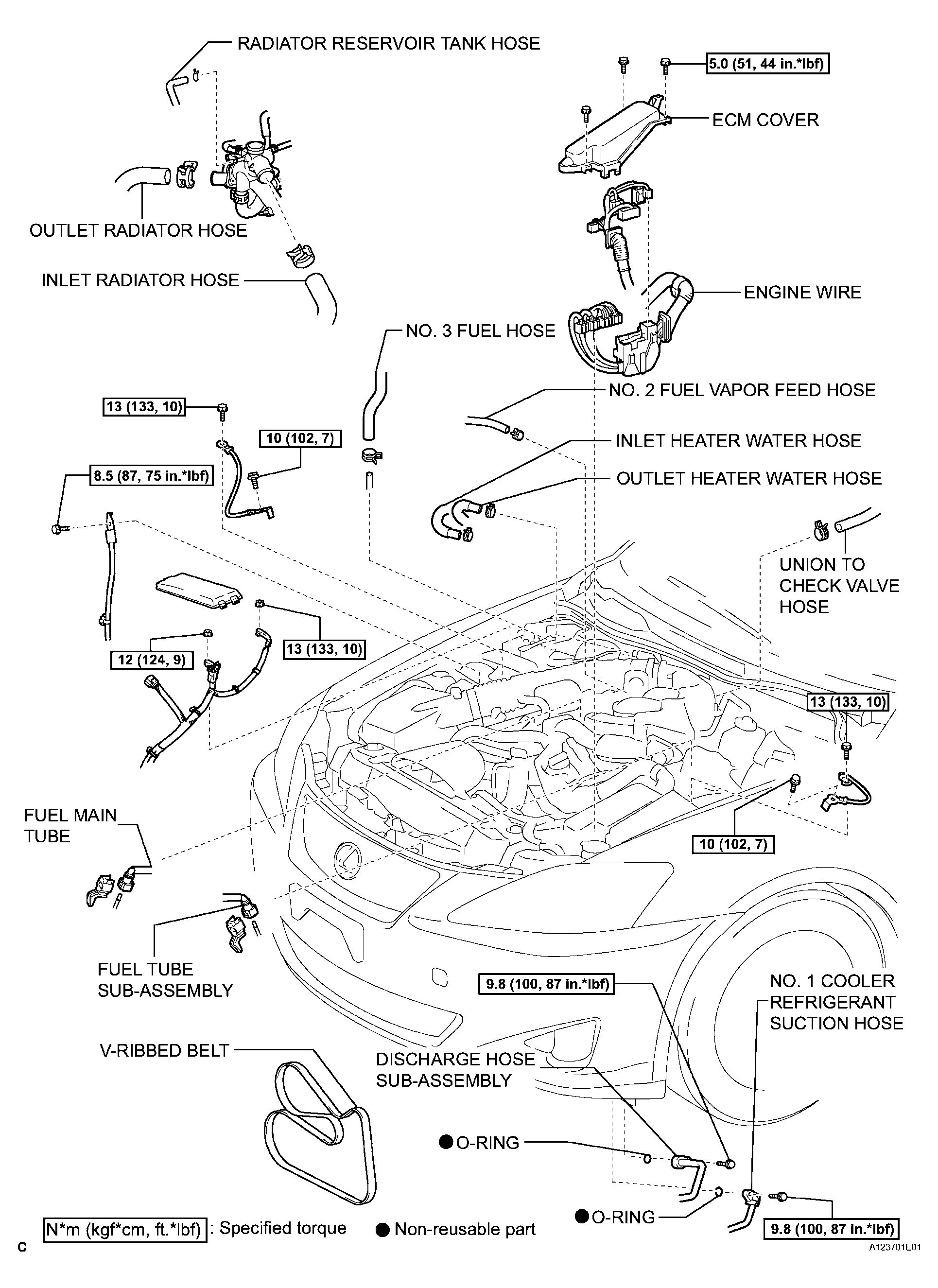

Fig 3: Oil Pump Replacement Components With Torque Specifications (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

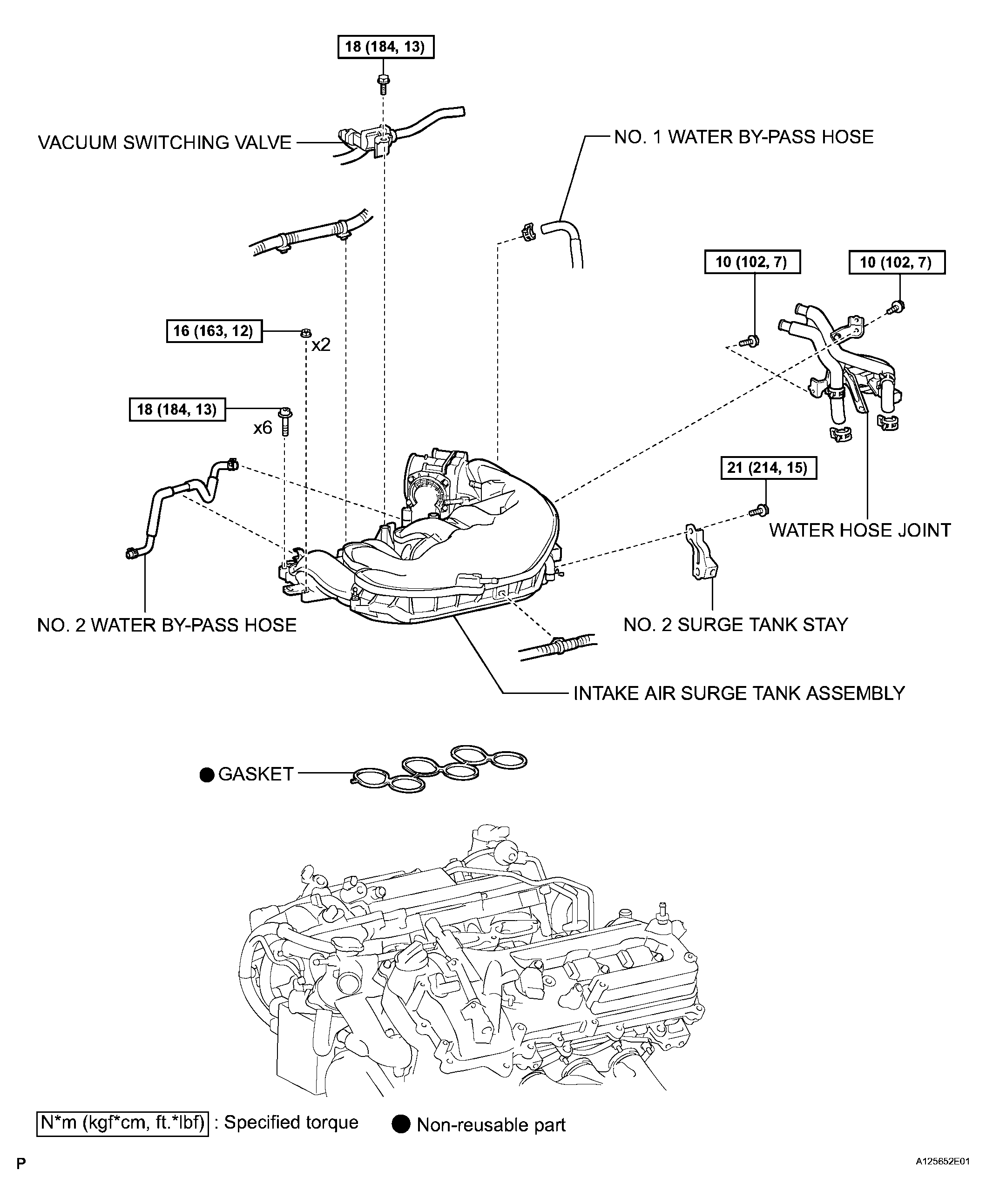

Fig 4: Oil Pump Replacement Components With Torque Specifications (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

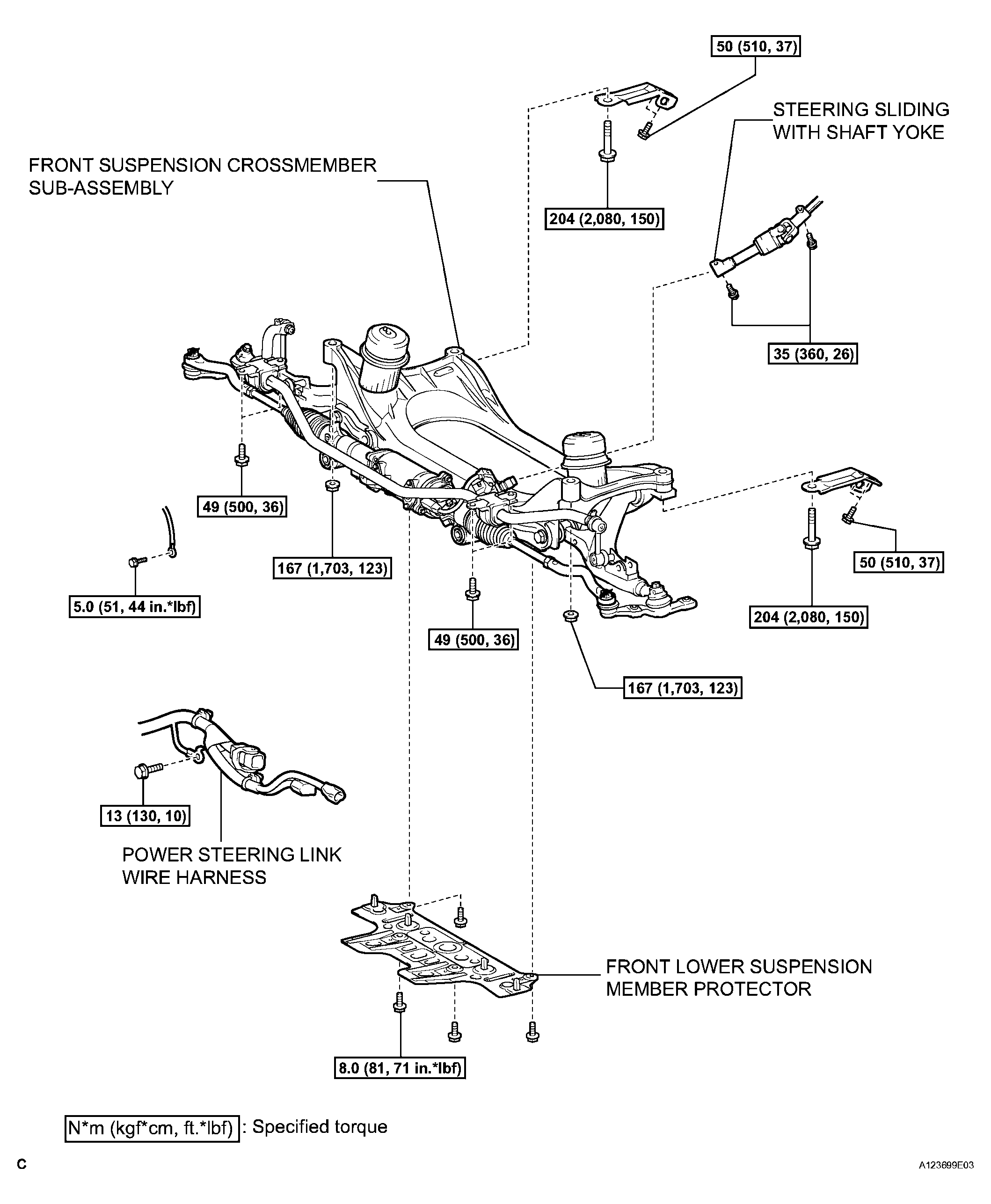

Fig 5: Oil Pump Replacement Components With Torque Specifications (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Oil Pump Replacement Components With Torque Specifications (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Oil Pump Replacement Components With Torque Specifications (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Oil Pump Replacement Components With Torque Specifications (8 Of 12)

Fig 9: Oil Pump Replacement Components With Torque Specifications (9 Of 12)

Fig 10: Oil Pump Replacement Components With Torque Specifications (10 Of 12)

Fig 11: Oil Pump Replacement Components With Torque Specifications (11 Of 12)

Fig 12: Oil Pump Replacement Components With Torque Specifications (12 Of 12)
