Data List / Active Test

  1. DATA LIST

    HINT:

    Using the intelligent tester to read the DATA LIST allows the values or states of switches, sensors, actuators, and other items to be read without removing any parts. This non intrusive inspection can be very useful as intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the DATA LIST information early in troubleshooting is one way to save diagnostic time.

    1. Warm up the engine.
    2. Engine switch off.
    3. Connect the intelligent tester to the DLC3.
    4. Engine switch on (IG) position.
    5. Turn the tester ON.
    6. Enter following menus: DIAGNOSIS / OBD/MOBD / METER / DATA LIST
    7. Check the values by referring to the table below.
    Fig 1: Connecting Intelligent Tester To DLC3 Terminals
    G04050010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    METER:

    METER DISPLAY DIAGNOSTIC REFERENCE

    Item Measurement Item/Range (Display) Normal Condition Diagnostic Note
    SPEED METER Vehicle speed/Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph) Almost same as actual vehicle speed (When driving) -
    TACHO METER Engine speed/Min.: 0 rpm, Max.: 12,750 rpm Almost same as actual engine speed (When engine is running) -
    FUEL GAUGE Fuel input signal Min.: 0, Max.: 255 Fuel gauge indicates (F): 35
    Fuel gauge indicates (3/4): 85
    Fuel gauge indicates (1/2): 145
    Fuel gauge indicates (1/4): 186
    Fuel gauge indicates (E): 205    		 -
    LIGHT RHEOSTAT Light Control Rheostat/Min.: 0, Max.: 255 Light control rheostat switch is Dark (0) --> Bright (255) -
    ODO/TRIP SW ODO/TRIP switch is ON/OFF ON: Switch is pushed
    OFF: Switch is released    		 -
    TAIL CANCEL SW TAIL CANCEL switch is ON/OFF ON: Light control rheostat turns fully clockwise
    OFF: Light control rheostat does not turn fully clockwise    		 -

    HINT:

    The tail cancel switch is used to cancel the link between taillight operation and dimming of the combination meter.

    ABS/VSC/TRAC:

    ABS/VSC/TRAC DISPLAY DIAGNOSTIC REFERENCE

    Item Measurement Item/Range (Display) Normal Condition Diagnostic Note
    FR/FL/RR/RL WHEEL SPD Vehicle speed/Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph) Almost same as actual vehicle speed (When driving) -
    VEHICLE SPD Vehicle speed/Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph) Almost same as actual vehicle speed (When driving) -
    LEVER POSITION A/T shift position P/R/N/D/B Same as actual shift position -
    PARKING BRAKE SW Parking brake switch is ON/OFF ON: Parking brake is on
    OFF: Parking brake is released    		 -

    ENGINE:

    ENGINE DISPLAY DIAGNOSTIC REFERENCE

    Item Measurement Item/Range (Display) Normal Condition Diagnostic Note
    VEHICLE SPD Vehicle speed/Min.: -256 km/h (- 159 mph), Max.: 254 km/h (158 mph) Almost same as actual vehicle speed (When driving) -
    COOLANT TEMP Coolant temperature/Min.: -40°C (-40°F), Max.: 140°C (284°F) After warming up: 80 to 95°C (176 to 203°F) If the value is "-40°C (-40°F)" or "140°C (284°F)", sensor circuits are open or shorted.
  2. ACTIVE TEST

    HINT:

    Performing the ACTIVE TEST using the intelligent tester allows the meters, indicators and so on to operate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one way to shorten diagnosis time.

    It is possible to display the DATA LIST on the intelligent tester during the ACTIVE TEST.

    1. Connect the intelligent tester to the DLC3.
    2. Engine switch on (IG).
    3. Turn the tester ON.
    4. Enter following menus: DIAGNOSIS / OBD/MOBD / METER / ACTIVE TEST
    5. From the display on tester, perform "ACTIVE TEST".

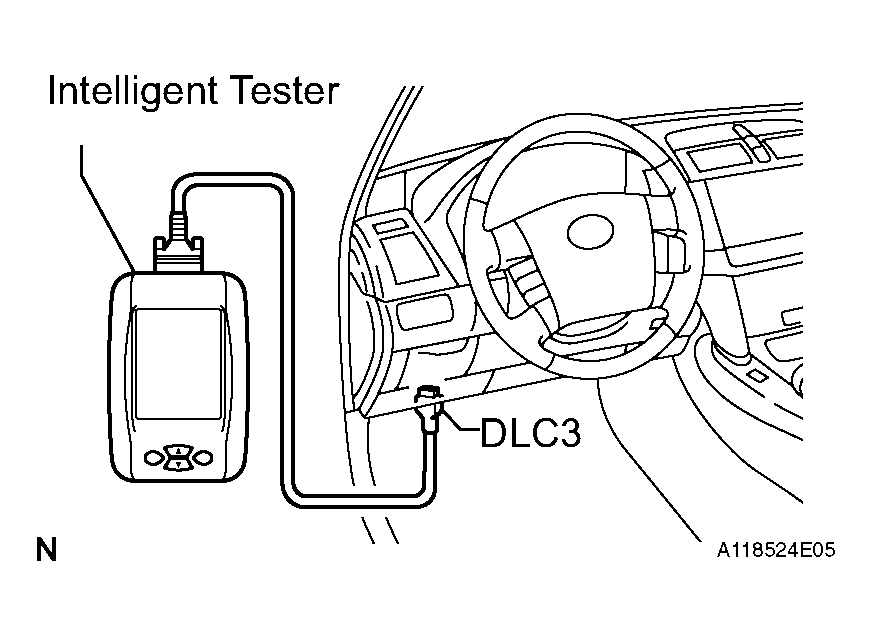

    Fig 2: Connecting Intelligent Tester To DLC3 Terminal
    G04050011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    METER:

    METER DIAGNOSTIC REFERENCE

    Item Test Details Diagnostic Note
    SPEED METER 0, 40 (24), 80 (48), 120 (72), 160 (96), 200 (120) km/h (mph) -
    TACHO METER 0, 1,000, 2,000, 3,000, 4,000, 5,000, 6,000, 7,000 (rpm) -
    FUEL GAUGE EMPTY, 1/2, FULL -
    COOLANT TEMP LOW, NORMAL, HIGH -
    SHIFT INDIC P/R/ N/D/S (*1) A/T shift indicator light P/R/N/D/S (OFF/ON) Confirm that the vehicle is stopped with the idling
    BRAKE WARN BRAKE warning light (OFF/ON) Confirm that the vehicle is stopped with the idling
    DISCHARGE WARN CHARGE warning light (OFF/ON) Confirm that the vehicle is stopped with the idling
    D-BELT REMIND D-SEAT BELT indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling
    P-BELT REMIND P-SEAT BELT indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling
    OPEN DOOR WARN DOOR warning light (OFF/ON) Confirm that the vehicle is stopped with the idling
    LOW FUEL WARN FUEL warning light (OFF/ON) Confirm that the vehicle is stopped with the idling
    ECT PWR INDIC (*1) ECT PWR indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling
    ECT SNOW INDIC (*1) ECT SNOW indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling
    CRUISE INDIC CLUISE indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling
    HEADLIGHT INDIC (*2) HEAD indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling
    TAILLIGHT INDIC (*3) TAIL indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling
    HIGH BEAM INDIC BEAM indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling
    SRS WARN AIRBAG indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling
    SLIP INDIC SLIP indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling
    ABS WARN ABS indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling
    ODO/TRIP DISP All the dot in the multi-information display (OFF/ON) Confirm that the vehicle is stopped with the idling
    TIRE PRESS WARN (*4) TIRE PRESS warning light (OFF/ON) Confirm that the vehicle is stopped with the idling
    KEY REMND BUZZR Key reminder buzzer (OFF/ON) Confirm that the vehicle is stopped with the idling
    SEAT BELT BUZZR Seat belt buzzer (OFF/ON) Confirm that the vehicle is stopped with the idling
    S SHFT RJCT BUZ Sports shift reject buzzer (OFF/ON) Confirm that the vehicle is stopped with the idling
    WARNING BUZZER Warning buzzer (OFF/ON) Confirm that the vehicle is stopped with the idling
    CLEARANCE SONAR (*5) CLEARANCE SONAR indicator light (OFF/ ON) Confirm that the vehicle is stopped with the idling
    A/T SHFT (*1) All the dot in the multi-information display (OFF/ON) Confirm that the vehicle is stopped with the idling
    AFS INDICATOR (*6) AFS OFF indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling
    EMPS EPS indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling
    MASTER WARN MASTER warning light (OFF/ON) Confirm that the vehicle is stopped with the idling
    MULTI-DISP All the dot in the multi-information display (OFF/ON) Confirm that the vehicle is stopped with the idling
    PCS (*7) PCS indicator light (OFF/ON) Confirm that the vehicle is stopped with the idling

    MAIN BODY:

    MAIN BODY DIAGNOSTIC CHART

    Item Test Details Diagnostic Notes
    DIMMER SIG Auto dimmer signal is (OFF/ON) Confirm that the vehicle is stopped with the idling

    *1: for Automatic Transmission

    *2: for U.S.A.

    *3: for Canada

    *4: with Tire Pressure Warning System

    *5: with Clearance Sonar System

    *6: with Intelligent AFS

    *7: with Pre-collision System
