Brake Master Cylinder: Removal

  1. PRECAUTION

    HINT:

    (See PRECAUTION )

  2. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  3. REMOVE ENGINE ROOM SIDE COVER LH (See Step 2 in  REMOVAL  )
  4. REMOVE ENGINE ROOM COVER SIDE RH (See Step 3 in  REMOVAL  )
  5. REMOVE FRONT UPPER FENDER PROTECTOR LH (See Step 4 in  REMOVAL  )
  6. REMOVE FRONT UPPER FENDER PROTECTOR RH (See Step 5 in  REMOVAL  )
  7. REMOVE ROOF DRIP SIDE FINISH MOLDING LH (See  REMOVAL  )
  8. REMOVE ROOF DRIP SIDE FINISH MOLDING RH (See Step 7 in  REMOVAL  )
  9. REMOVE FRONT WIPER ARM HEAD CAP (See Step 8 in  REMOVAL  )
  10. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (See Step 9 in  REMOVAL  )
  11. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (See Step 10 in  REMOVAL  )
  12. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (See Step 11 in  REMOVAL  )
  13. DRAIN BRAKE FLUID
    NOTE: If brake fluid leaks onto any painted surface, wash off or remove the brake fluid completely.
  14. REMOVE NO. 3 ENGINE ROOM RELAY BLOCK
    1. Remove the bolt, nut and No. 3 engine room relay block.
      NOTE: Cover the No. 3 engine room relay block with a shop rag or a piece of cloth to prevent brake fluid from getting on it.
  15. SEPARATE CLUTCH RESERVOIR HOSE (for Manual Transmission)
    1. Remove the clip and separate the clutch reservoir hose.
    Fig 1: Identifying No. 3 Engine Room Relay Block
    G04047778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE BRAKE MASTER CYLINDER SUBASSEMBLY

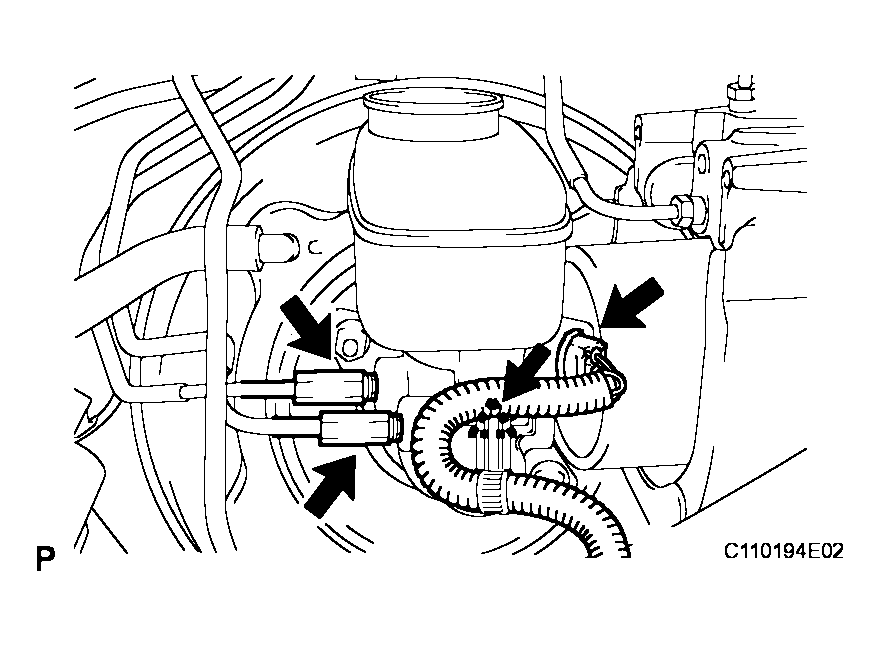

    1. Disengage the clamp and disconnect the warning switch connector.
    2. Using SST, disconnect the 2 brake tubes from the brake master cylinder sub-assembly.

      SST 09023-00101

      Fig 2: Disengaging Clamp & Disconnecting Warning Switch Connector
      G04047770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

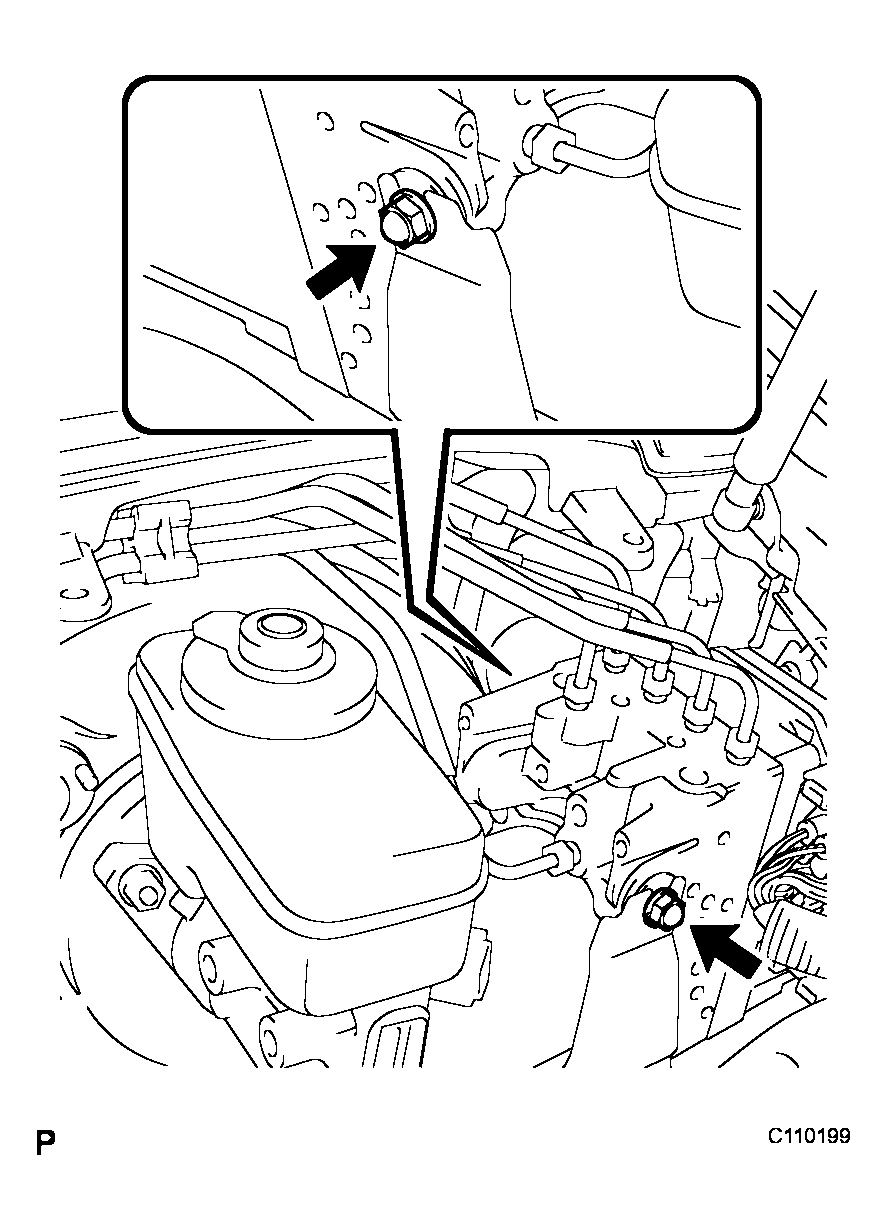

    3. Remove the 2 nuts and separate the brake actuator assembly.
      Fig 3: Removing Nuts & Separate Brake Actuator Assembly
      G04047771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

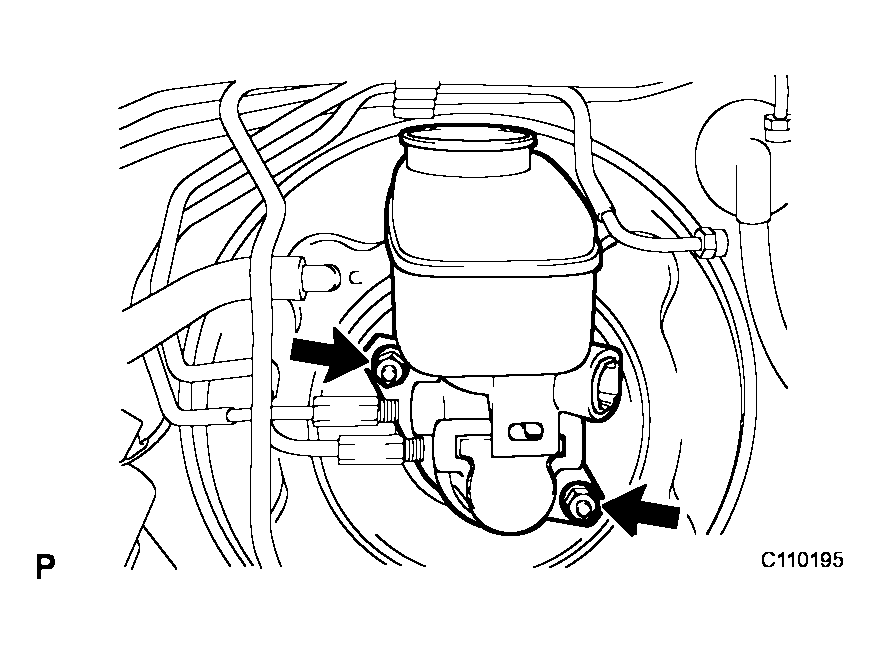

    4. Remove the 2 nuts and brake master cylinder subassembly from the brake booster assembly.
    5. Remove the O-ring from the brake master cylinder sub-assembly.
Fig 4: Removing Nuts & Brake Master Cylinder Subassembly From Brake Booster Assembly
G04047772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
