Wiper Switch: Removal

REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic)

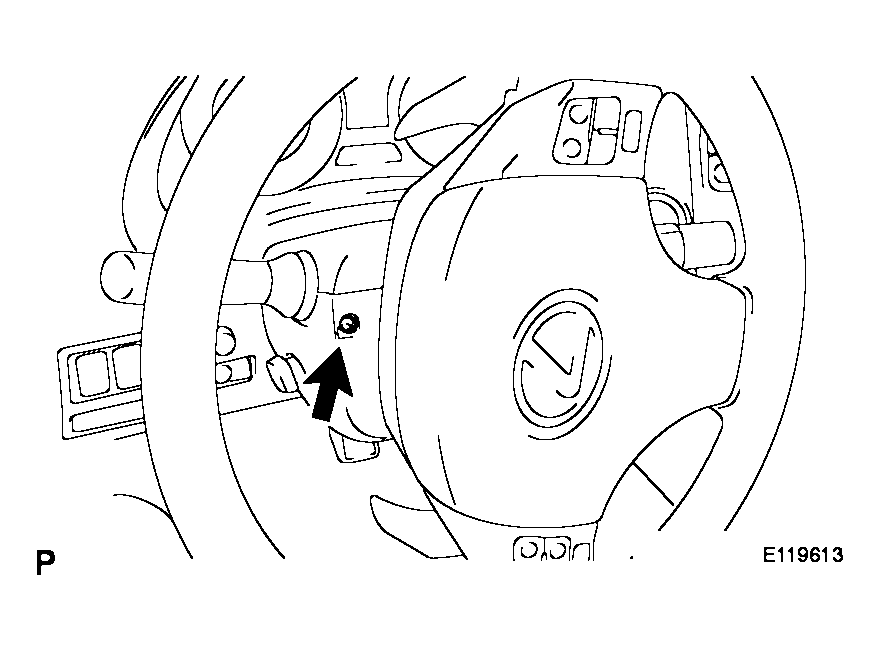

1. The steering wheel assembly is turned to the right and remove the screw.

  Fig 1: Identifying Screw (Right)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

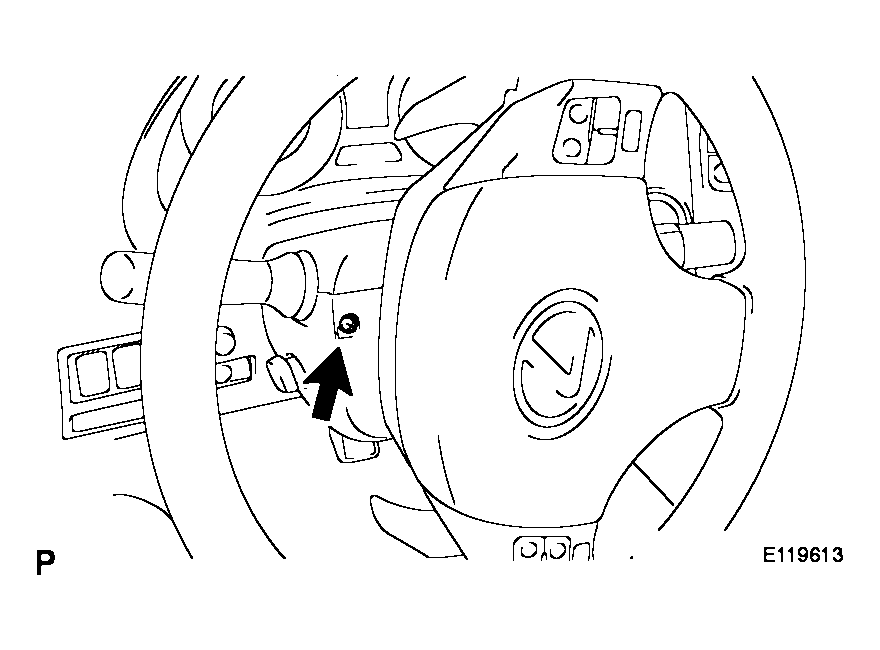

2. The steering wheel assembly is turned to the left and remove the screw.

  Fig 2: Identifying Screw (Left)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

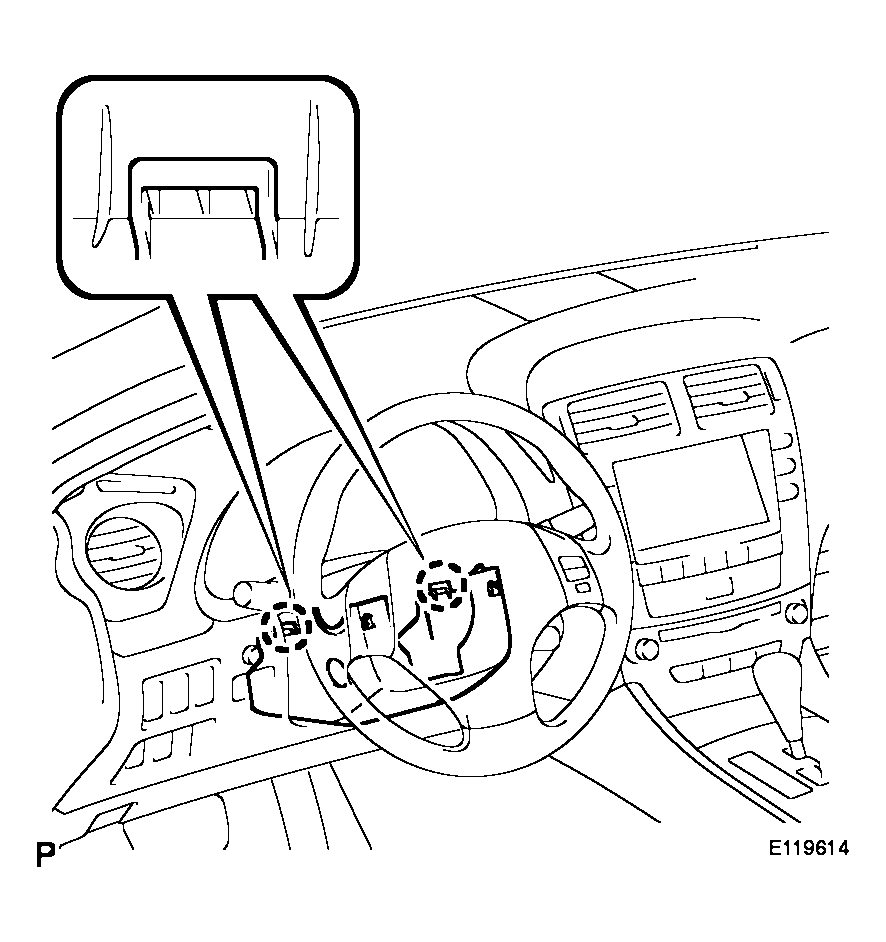

3. Disengage the 2 claws and remove the steering column cover lower.

  Fig 3: Identifying Steering Column Cover Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

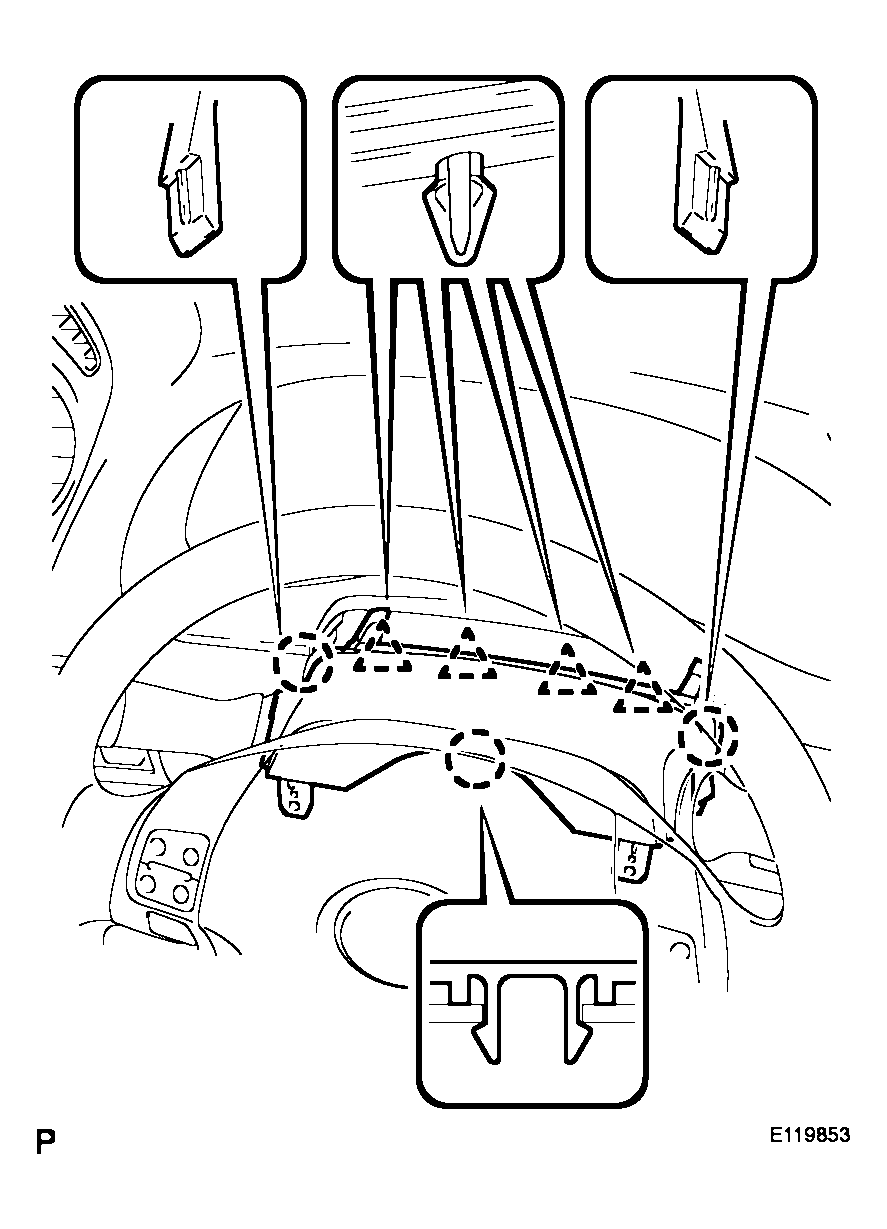

4. Disengage the 4 clips and 3 claws to remove the steering column cover upper.
Fig 4: Disengaging Clips & Claws To Remove Steering Column Cover Upper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
1. The steering wheel assembly is turned to the right and remove the screw.

  Fig 5: Identifying Screw (Right)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. The steering wheel assembly is turned to the left and remove the screw.

  Fig 6: Identifying Screw (Left)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

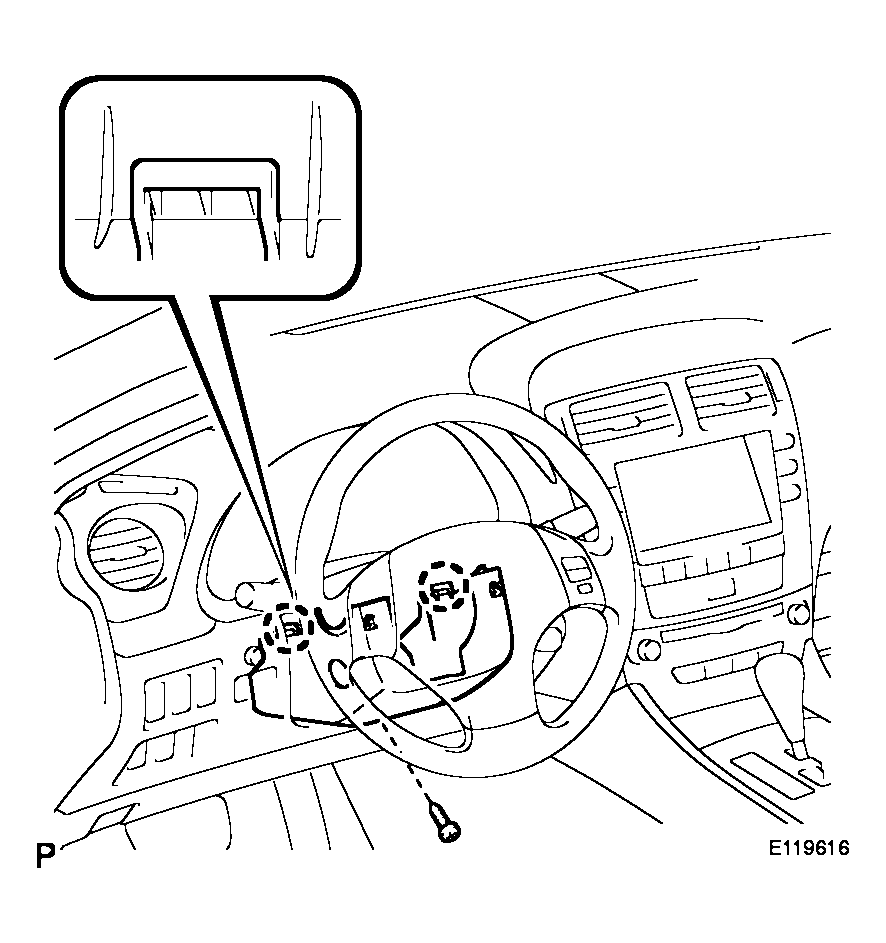

3. Disengage the 2 claws and remove the screw and the steering column cover lower.

  Fig 7: Identifying Screw & Steering Column Cover Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disengage the 4 clips and 3 claws to remove the steering column cover upper.
Fig 8: Disengaging Clips & Claws To Remove Steering Column Cover Upper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

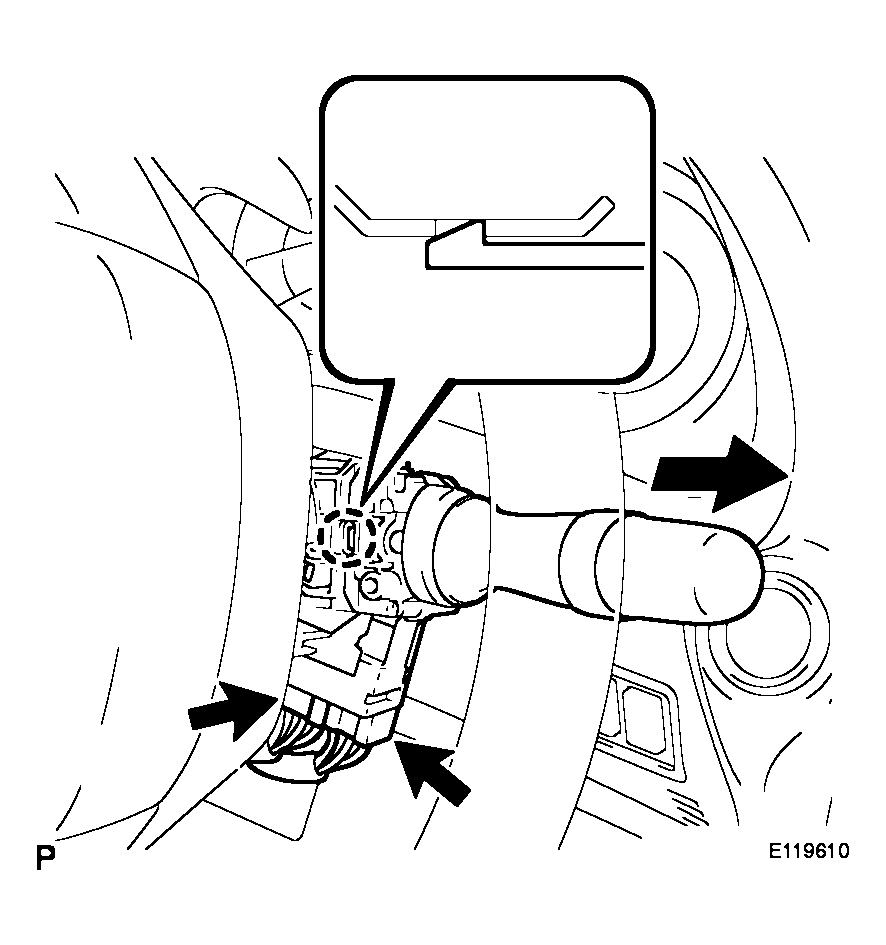

1. Disconnect the 2 connectors.
2. Disengage the claw and remove the windshield wiper switch assembly.
Fig 9: Removing Windshield Wiper Switch Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: If the claw is pushed with excessive force, it may break.
