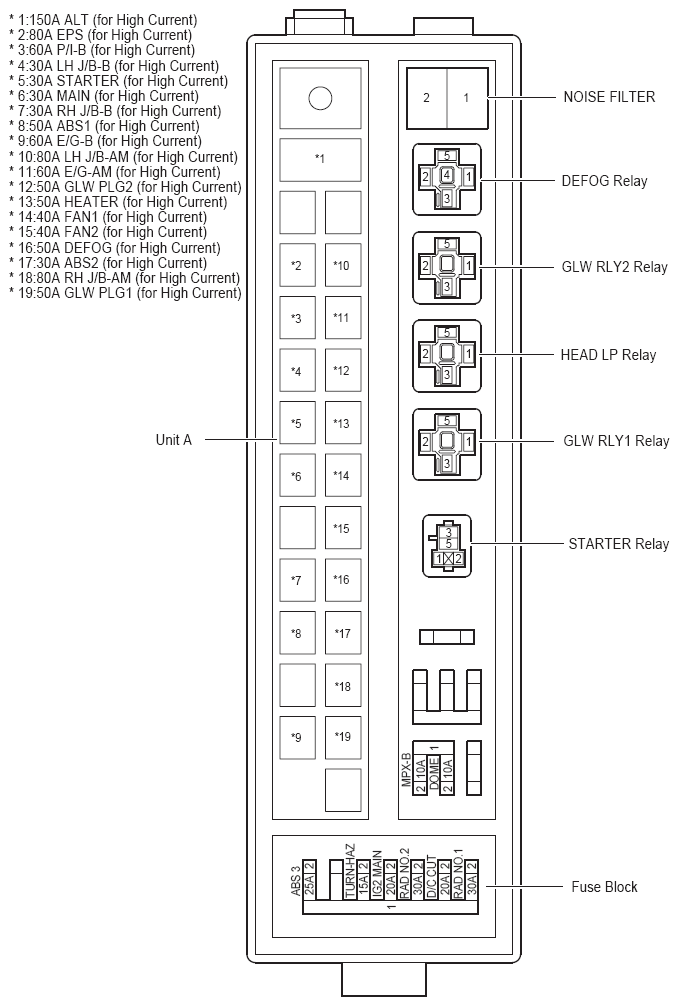

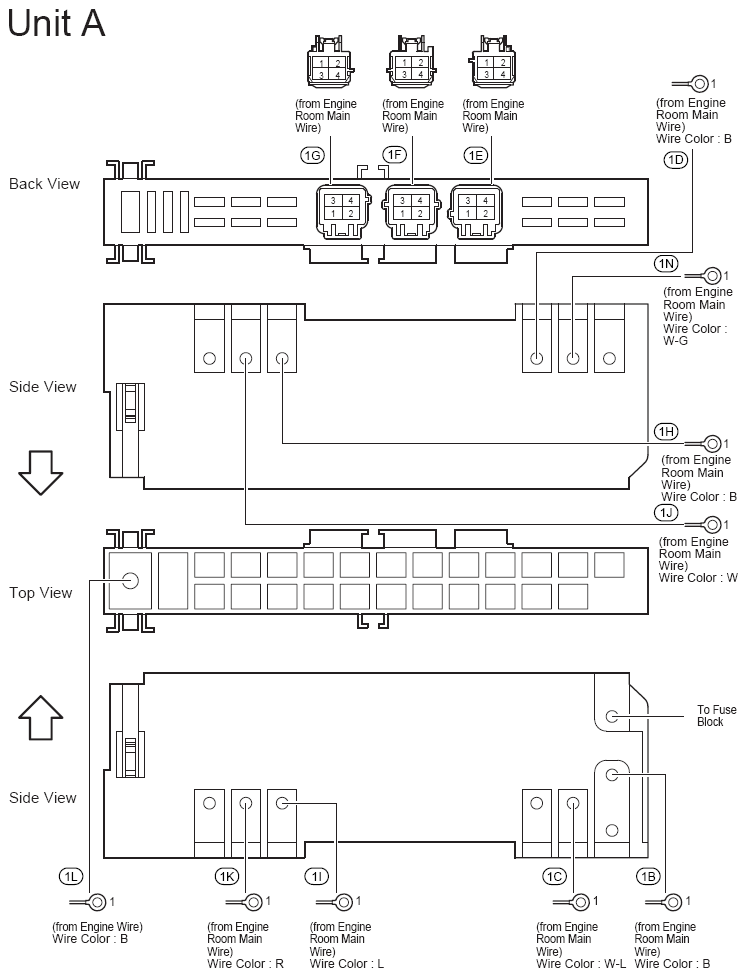

Engine Room Relay Block No. 1 And Engine Room Junction Block No. 1 - Near the Battery
ENGINE ROOM R/B AND J/B NO. 1 RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Defog Relay |
| GLW RLY2 Relay |
| Head LP Relay |
| GLW RLY1 Relay |
| Starter Relay |
Engine Room R/B And J/B No. 1 Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 10A | DOME | ABS and TRAC and VSC |
| Adaptive Front-Lighting System | ||
| Combination Meter | ||
| Cruise Control (2GR-FSE) | ||
| Cruise Control (4GR-FSE) | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Engine Control (2GR-FSE) | ||
| Engine Control (4GR-FSE) | ||
| Front Fog Light | ||
| Garage Door Opener | ||
| Headlight | ||
| Interior Light | ||
| LEXUS Parking Assist (Clearance Sonar) | ||
| Pre-Collision System | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Taillight | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Vehicle Dynamics Integrated Management | ||
| 4WD | ||
| 10A | MPX-B | ABS and TRAC and VSC |
| Adaptive Front-Lighting System | ||
| Audio System and LEXUS Navigation System and LEXUS Parking Assist (Rear View Monitor) | ||
| Automatic Light Control | ||
| Charging | ||
| Clock | ||
| Combination Meter | ||
| Cruise Control (2GR-FSE) | ||
| Cruise Control (4GR-FSE) | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Engine Control (2GR-FSE) | ||
| Engine Control (4GR-FSE) | ||
| EPS | ||
| Front Fog Light | ||
| Front Wiper and Washer | ||
| Headlight | ||
| Headlight Cleaner | ||
| Illumination | ||
| Interior Light | ||
| LEXUS Parking Assist (Clearance Sonar) | ||
| Light Auto Turn Off System | ||
| Luggage Compartment Door Opener | ||
| Multiplex Communication System (AVC-LAN) | ||
| Multiplex Communication System (BEAN) | ||
| Multiplex Communication System (CAN) | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Seat (Front Passenger's Seat w/Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Pre-Collision System | ||
| Rear Sunshade | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| SRS | ||
| Taillight | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Dynamics Integrated Management | ||
| 4WD | ||
| 15A | TURN-HAZ | Turn Signal and Hazard Warning Light |
| 25A | ABS 3 | Dynamic Radar Cruise Control (2GR-FSE) |
| Vehicle Dynamics Integrated Management | ||
| 30A | ABS2 | ABS and TRAC and VSC |
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| 30A | MAIN | Adaptive Front-Lighting System |
| Automatic Light Control | ||
| Headlight | ||
| Headlight Cleaner | ||
| Light Auto Turn Off System | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 30A | RAD NO. 1 | Audio System and LEXUS Navigation System and LEXUS Parking Assist (Rear View Monitor) |
| 30A | RAD NO. 2 | Audio System and LEXUS Navigation System and LEXUS Parking Assist (Rear View Monitor) |
| 30A | STARTER | Smart Access System with Push-Button Start |
| 40A | FAN1 | Cooling Fan |
| 40A | FAN2 | Cooling Fan |
| 50A | ABS1 | ABS and TRAC and VSC |
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Vehicle Dynamics Integrated Management | ||
| 50A | DEFOG | Mirror Heater and Rear Window Defogger |
| 50A | GLW PLG1 | Air Conditioning |
| 50A | GLW PLG2 | Air Conditioning |
| 50A | HEATER | Air Conditioning |
| 80A | EPS | EPS |
| 80A | LH J/B-AM | Climate Control Seat and Seat Heater (w/Climate Control Seat) |
| Fuel Lid Opener | ||
| Illumination | ||
| Seat Heater (w/o Climate Control Seat) | ||
| Taillight | ||
| 150A | ALT | Charging |
