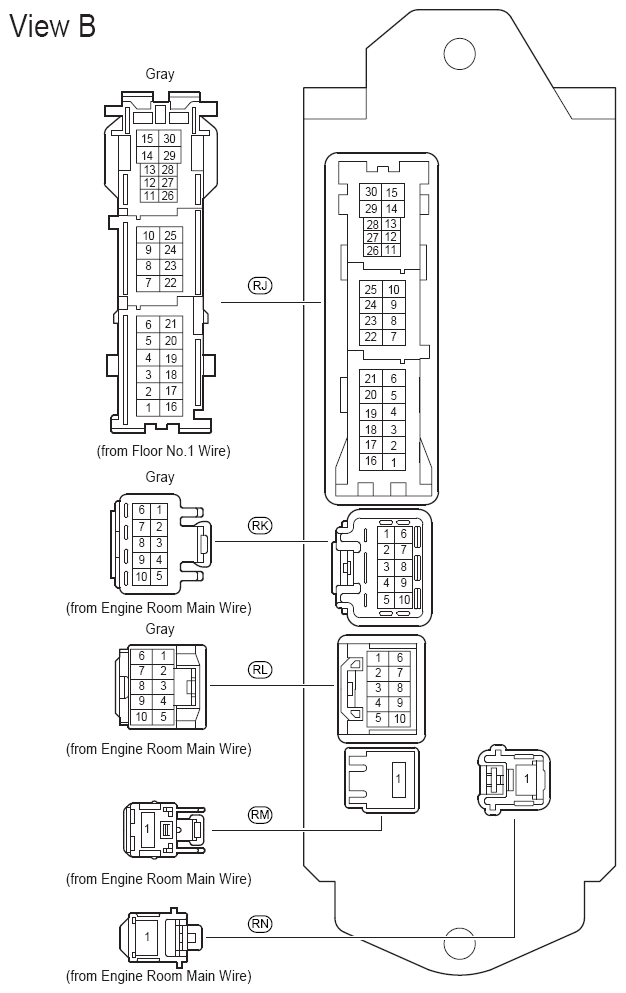

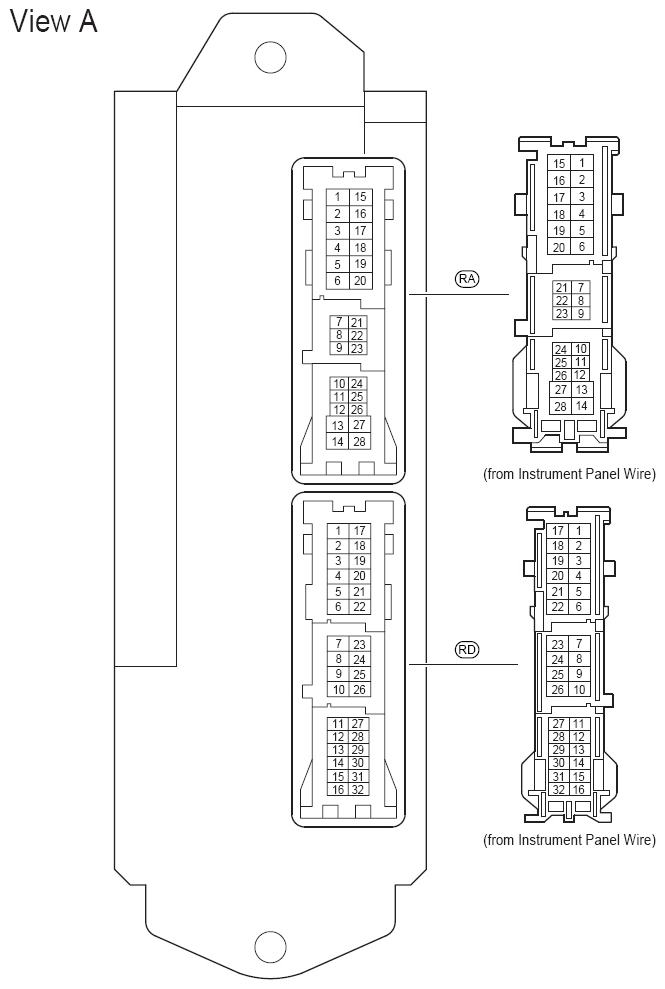

Cowl Side Junction Block RH - Cowl Side Right
Cowl Side J/B RH Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 7.5A | ACC | Audio System and LEXUS Navigation System and LEXUS Parking Assist (Rear View Monitor) |
| Automatic Light Control | ||
| Clock | ||
| Door Lock Control | ||
| Front Fog Light | ||
| Headlight | ||
| Illumination | ||
| Interior Light | ||
| Light Auto Turn Off System | ||
| Luggage Compartment Door Opener | ||
| Multiplex Communication System (AVC-LAN) | ||
| Multiplex Communication System (BEAN) | ||
| Multiplex Communication System (CAN) | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| Remote Control Mirror (w/o Seat Position Memory) | ||
| Smart Access System with Push-Button Start | ||
| Taillight | ||
| Theft Deterrent | ||
| 7.5A | GAUGE | ABS and TRAC and VSC |
| Adaptive Front-Lighting System | ||
| Audio System and LEXUS Navigation System and LEXUS Parking Assist (Rear View Monitor) | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control (2GR-FSE) | ||
| Cruise Control (4GR-FSE) | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Engine Control (2GR-FSE) | ||
| Engine Control (4GR-FSE) | ||
| EPS | ||
| Front Fog Light | ||
| Front Wiper and Washer | ||
| Headlight | ||
| Illumination | ||
| Interior Light | ||
| LEXUS Parking Assist (Clearance Sonar) | ||
| Pre-Collision System | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| SRS | ||
| Taillight | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Vehicle Dynamics Integrated Management | ||
| 4WD | ||
| 7.5A | OBD | Data Link Connector 3 |
| 7.5A | RH-IG | Climate Control Seat and Seat Heater (w/Climate Control Seat) |
| Cruise Control (2GR-FSE) | ||
| Cruise Control (4GR-FSE) | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Electric Tension Reducer | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| LEXUS Parking Assist (Clearance Sonar) | ||
| Seat Heater (w/o Climate Control Seat) | ||
| 7.5A | STOP SW | ABS and TRAC and VSC |
| Cruise Control (2GR-FSE) | ||
| Cruise Control (4GR-FSE) | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Engine Control (2GR-FSE) | ||
| Engine Control (4GR-FSE) | ||
| Shift Lock | ||
| Smart Access System with Push-Button Start | ||
| Stop Light | ||
| Vehicle Dynamics Integrated Management | ||
| 10A | ECU-IG RH | ABS and TRAC and VSC |
| Adaptive Front-Lighting System | ||
| Audio System and LEXUS Navigation System and LEXUS Parking Assist (Rear View Monitor) | ||
| Automatic Light Control | ||
| Clock | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| EPS | ||
| Front Fog Light | ||
| Front Wiper and Washer | ||
| Headlight | ||
| Headlight Cleaner | ||
| Illumination | ||
| Interior Light | ||
| Light Auto Turn Off System | ||
| Luggage Compartment Door Opener | ||
| Multiplex Communication System (AVC-LAN) | ||
| Multiplex Communication System (BEAN) | ||
| Multiplex Communication System (CAN) | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Seat (Front Passenger's Seat w/Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Pre-Collision System | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| Seat Belt Warning | ||
| Smart Access System with Push-Button Start | ||
| SRS | ||
| Taillight | ||
| Theft Deterrent | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Dynamics Integrated Management | ||
| 4WD | ||
| 10A | IGN | Cruise Control (2GR-FSE) |
| Cruise Control (4GR-FSE) | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Engine Control (2GR-FSE) | ||
| Engine Control (4GR-FSE) | ||
| Smart Access System with Push-Button Start | ||
| SRS | ||
| 10A | RAD NO. 3 | Audio System and LEXUS Navigation System and LEXUS Parking Assist (Rear View Monitor) |
| 15A | AM2 | Engine Control (2GR-FSE) |
| Engine Control (4GR-FSE) | ||
| Interior Light | ||
| Smart Access System with Push-Button Start | ||
| 15A | CIG | Cigarette Lighter |
| 15A | FR S/HTR RH | Climate Control Seat and Seat Heater (w/Climate Control Seat) |
| Seat Heater (w/o Climate Control Seat) | ||
| 15A | PWR OUTLET | Power Outlet |
| 20A | FR DOOR RH | Automatic Light Control |
| Door Lock Control | ||
| Front Fog Light | ||
| Headlight | ||
| Illumination | ||
| Interior Light | ||
| Light Auto Turn Off System | ||
| Luggage Compartment Door Opener | ||
| Power Seat (Front Passenger's Seat w/Seat Position Memory) | ||
| Power Window | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| Smart Access System with Push-Button Start | ||
| Taillight | ||
| Theft Deterrent | ||
| 20A | RR DOOR RH | Power Window |
| 20A | TI & TE | Automatic Light Control |
| Door Lock Control | ||
| Front Fog Light | ||
| Headlight | ||
| Illumination | ||
| Interior Light | ||
| Light Auto Turn Off System | ||
| Luggage Compartment Door Opener | ||
| Power Tilt and Power Telescopic | ||
| Smart Access System with Push-Button Start | ||
| Taillight | ||
| Theft Deterrent | ||
| 30A | FR P/SEAT RH | Power Seat (Front Passenger's Seat w/Seat Position Memory) |
| Power Seat (Front Passenger's Seat w/o Seat Position Memory) | ||
