Parking Brake Assembly: Disassembly

1. Remove the 2 bolts and separate the rear disc brake caliper assembly.
   NOTE: Hang the caliper with wire or equivalent.
2. Remove the No. 1 caliper plate (2 pieces).

Fig 1: Identifying Rear Disc Brake Caliper Assembly Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Release the parking brake.
2. Put matchmarks on the rear disc and rear axle hub.
3. Remove the rear disc.

   HINT:

   If the disc cannot be removed easily, turn the shoe adjuster until the wheel turns smoothly.

   Fig 2: Removing Rear Disc

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

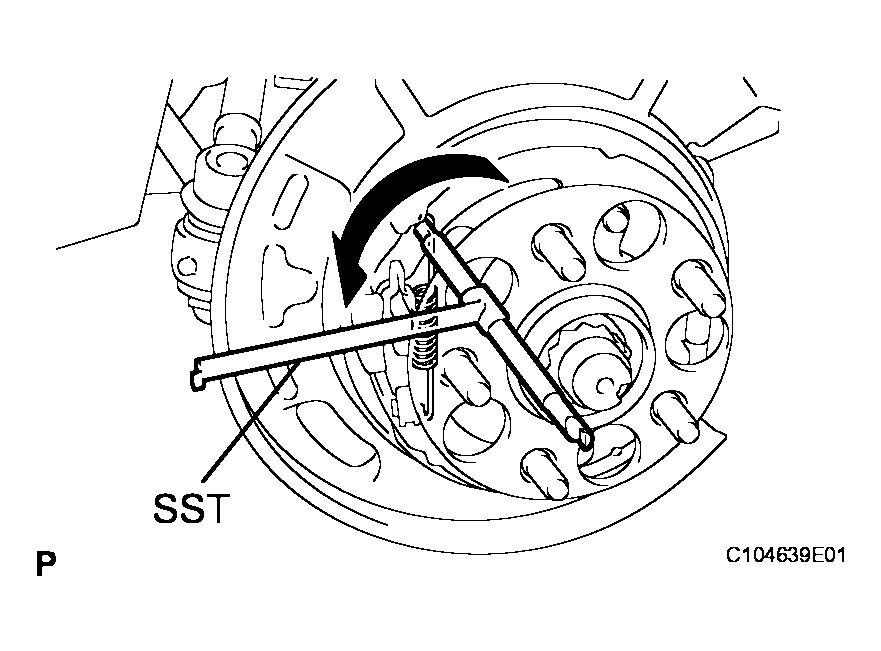

1. Using SST, remove the No. 2 parking brake shoe return spring.

SST 09703-30011

Fig 3: Removing No. 2 Parking Brake Shoe Return Spring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, remove the No. 1 parking brake shoe return spring.

SST 09703-30011

Fig 4: Removing No. 1 Parking Brake Shoe Return Spring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Slide the parking brake shoe, and remove the parking brake shoe adjusting screw set.

Fig 5: Removing Parking Brake Shoe Adjusting Screw Set

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, remove the No. 1 shoe hold down spring cup, No. 1 compression spring and No. 1 shoe hold down spring pin.

   SST 09718-00010

2. Remove the No. 2 parking brake shoe assembly.

   HINT:

   Use the service hole to retain the No. 1 hold down spring pin with your finger.

   Fig 6: Removing No. 1 Shoe Hold Down Spring Cup, No. 1 Compression Spring & No. 1 Shoe Hold Down Spring Pin

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, remove the No. 1 shoe hold down spring cup, No. 1 compression spring and No. 1 shoe hold down spring pin.

   SST 09718-00010

2. Remove the No. 1 parking brake shoe assembly.

   HINT:

   Use the service hole to retain the No. 1 hold down spring pin with your finger.

   Fig 7: Removing No. 1 Shoe Hold Down Spring Cup, No. 1 Compression Spring & No. 1 Shoe Hold Down Spring Pin

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the parking brake shoe lever.

1. Remove the rear axle hub and bearing assembly (See Step 21 in REMOVAL
   Fig 8: Removing Parking Brake Shoe Lever

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts, cable support bracket and parking brake anchor block.

Fig 9: Identifying Parking Brake Anchor Block Sub-Assembly & Nuts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
