Rear Brake Pad, Brake Caliper & Brake Rotor: Installation

INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY LH
1. Install 2 new No. 1 caliper plates to the caliper support bracket.

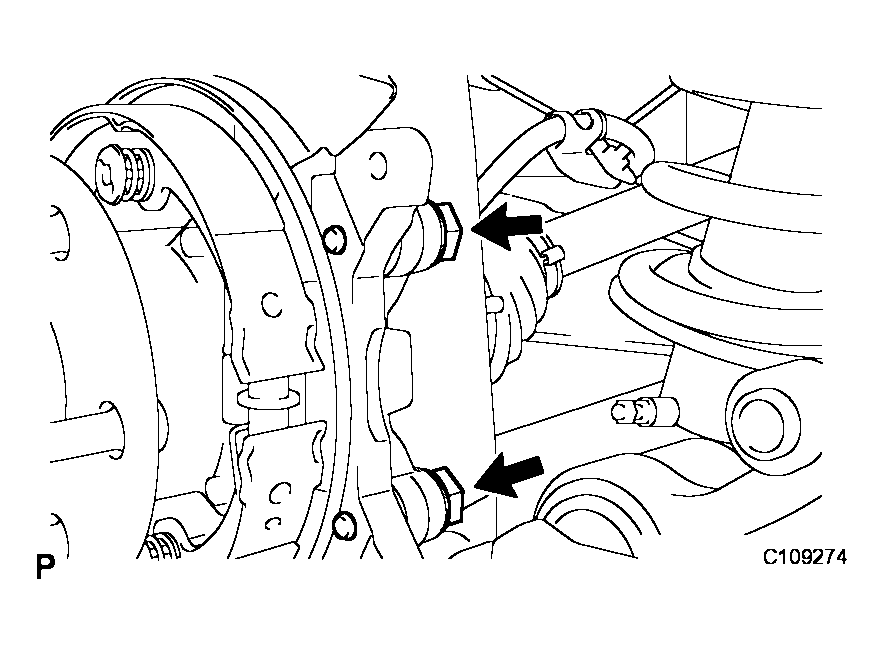

2. Install the cylinder assembly rear together with the caliper support bracket with the 2 bolts.
  Torque: 54 N*m (551 kgf*cm, 40 ft.*lbf)

  Fig 1: Installing Cylinder Assembly Rear With Caliper Support Bracket & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 REAR DISC BRAKE CYLINDER SUPPORT PIN

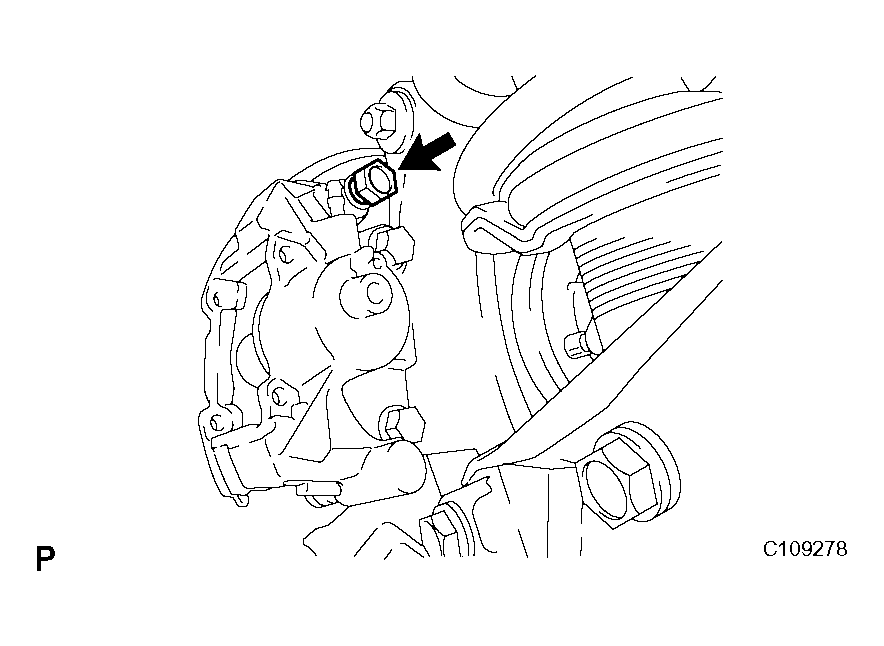

1. Install the rear cylinder assembly with the cylinder slide pin.
  Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf)

  Fig 2: Locating No. 1 Rear Disc Brake Cylinder Support Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ANTI-SQUEAL SHIM KIT REAR (for 2GR-FSE)
1. Apply disc brake grease to both sides of the 2 anti-squeal shims.

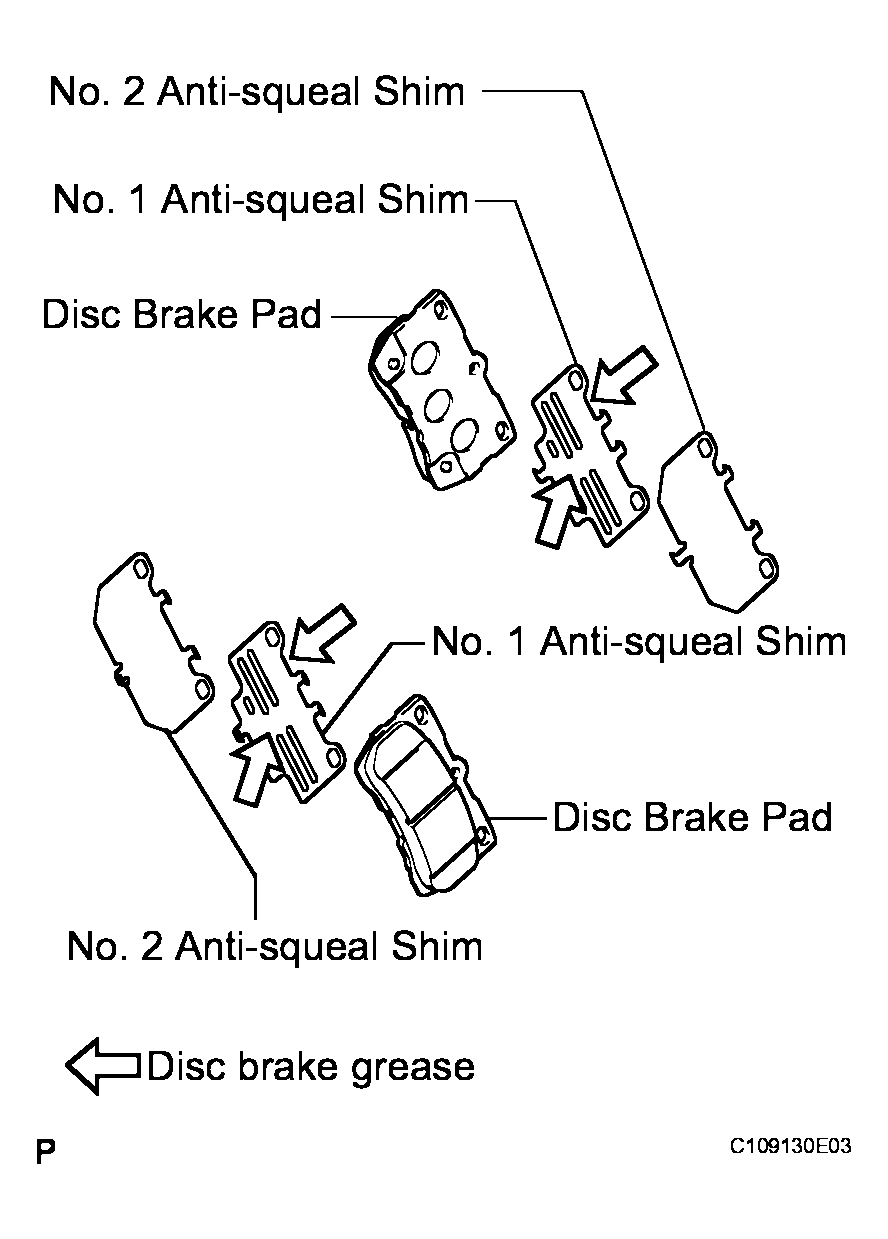

2. Install the 4 anti-squeal shims to each of the 2 brake pads.
  NOTE:
  - When replacing worn pads, the anti-squeal shims must be replaced together with the pads.
  - Install the anti-squeal shims in the correct positions and directions.
  Fig 3: Installing Anti-Squeal Shims In Correct Positions & Directions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ANTI-SQUEAL SHIM (for 4GR-FSE)
1. Apply disc brake grease to both sides of the 2 No. 1 anti-squeal shim.

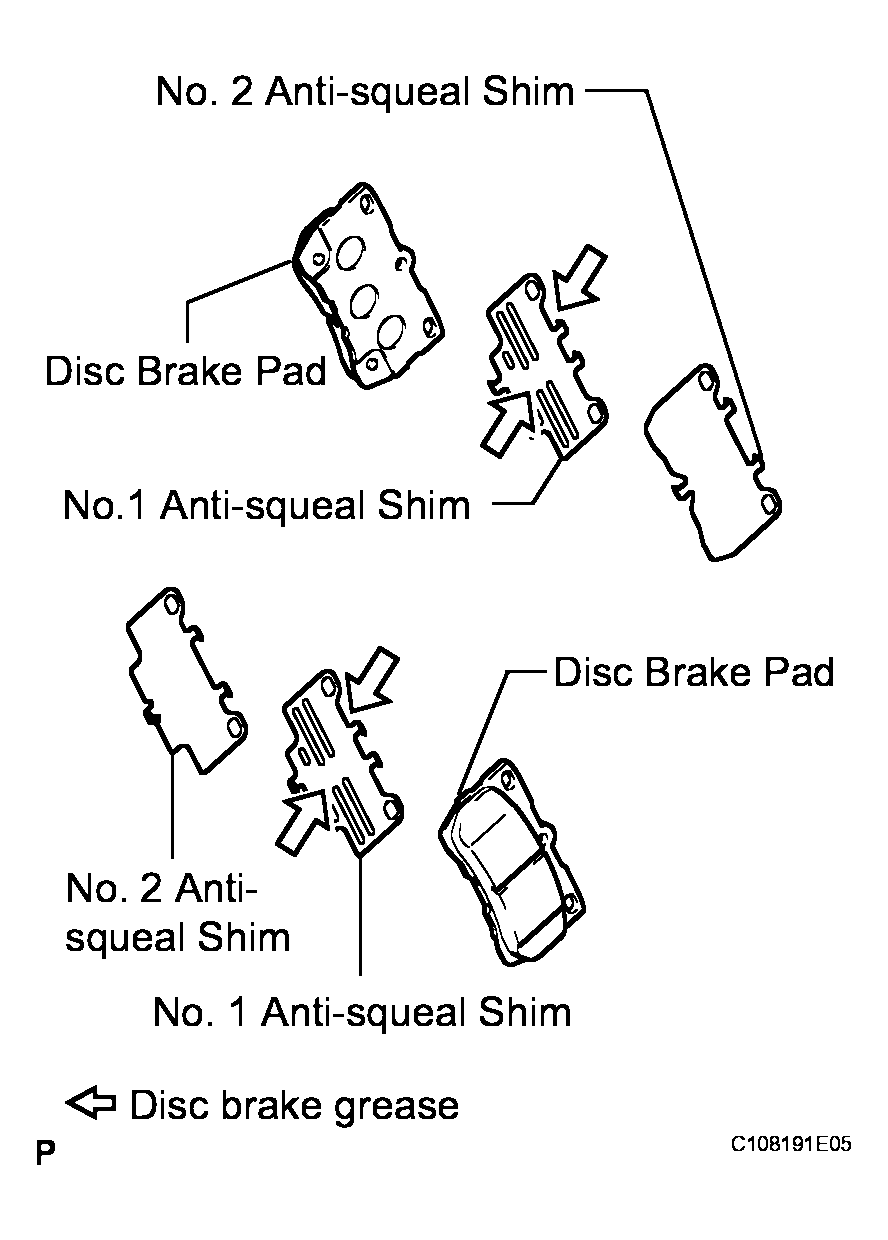

2. Install the 4 anti-squeal shims to each of the 2 brake pads.
  NOTE:
  - When replacing worn pads, the anti-squeal shims must be replaced together with the pads.
  - Install the anti-squeal shims in the correct positions and directions.
  Fig 4: Installing Anti-Squeal Shim (For 4GR-FSE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DISC BRAKE PAD WITH ANTI-SQUEAL SHIMS
1. Install the 2 brake pads with the anti-squeal shims to the rear cylinder assembly.

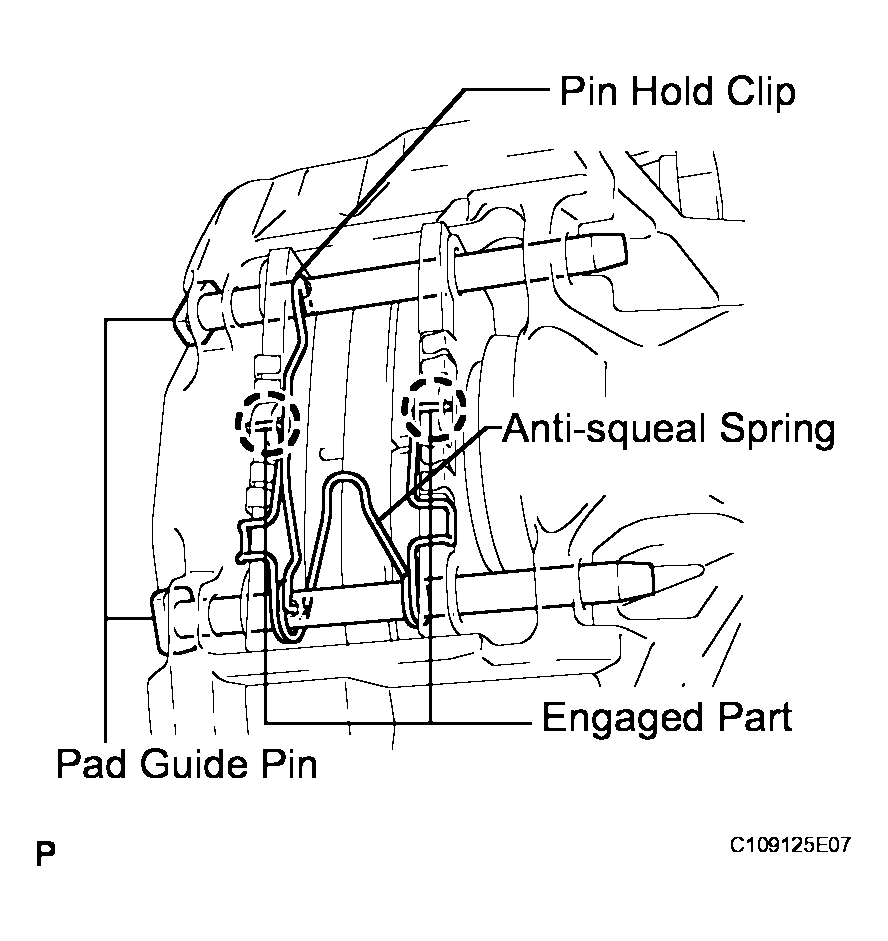

2. Install the 2 pad guide pins, anti-squeal spring and pin hold clip as shown in Fig 5 .
  NOTE: Make sure that the engaged parts of the anti-squeal spring are installed correctly.

  Fig 5: Installing Pad Guide Pins, Anti-Squeal Spring & Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT REAR LH FLEXIBLE HOSE

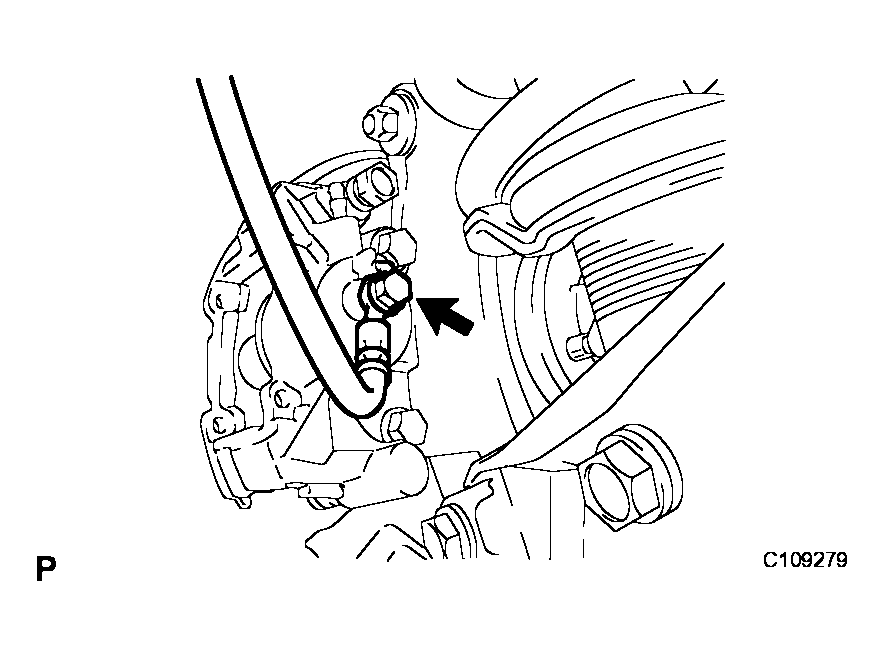

1. Connect the flexible hose with the union bolt and a new gasket.
  Torque: 30 N*m (310 kgf*cm, 22 ft.*lbf)

  NOTE: Install the flexible hose lock securely in the lock hole in the rear disc brake cylinder assembly.
FILL RESERVOIR WITH BRAKE FLUID (See BLEEDING )

Fig 6: Locating Flexible Hose Union Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BLEED BRAKE LINE (See Step 3 in BLEEDING )
BLEED BRAKE ACTUATOR ASSEMBLY (See Step 4 in BLEEDING )
CHECK BRAKE FLUID LEVEL (See Step 5 in BLEEDING )
INSPECT FOR CHECK BRAKE LEAKAGE
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
