Rear Brake Pad, Brake Caliper & Brake Rotor: Inspection
- INSPECT BRAKE CYLINDER AND PISTON
- Inspect the cylinder bore and the piston for rust or scoring.
If necessary, replace the brake cylinder assembly rear and piston.
- Inspect the cylinder bore and the piston for rust or scoring.

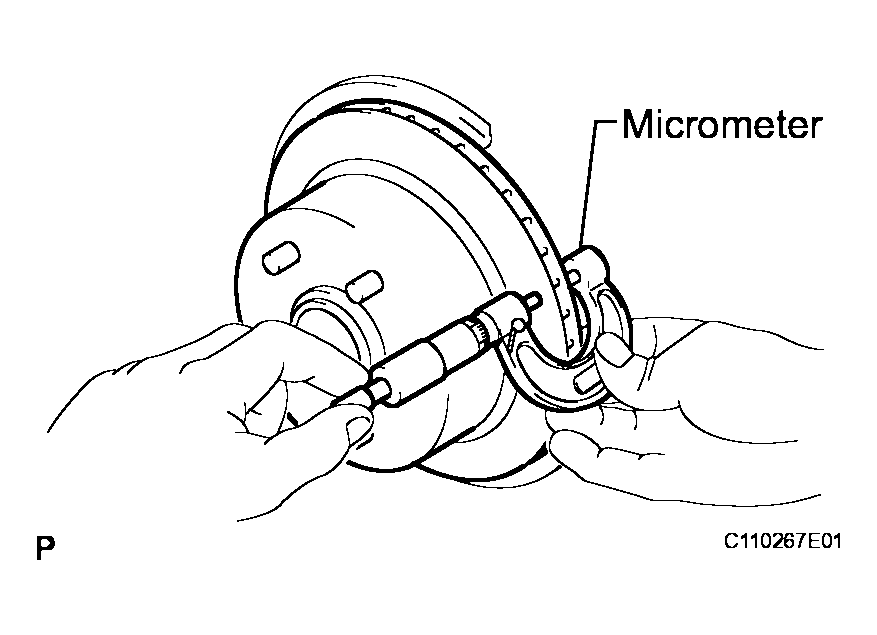

- INSPECT REAR DISC THICKNESS (for 2GR-FSE)
- Using a micrometer, measure the disc thickness (for 2GR-FSE).
Standard thickness:
18.0 mm (0.709 in.)
Minimum thickness:
16.5 mm (0.650 in.)
If the disc thickness is less than the minimum, replace the rear disc.
- Using a micrometer, measure the disc thickness (for 2GR-FSE).

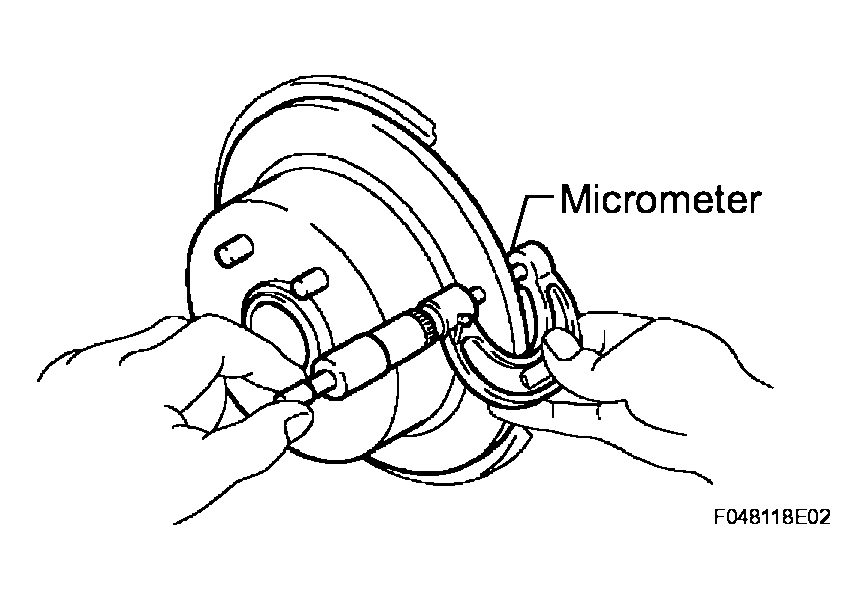

- INSPECT REAR DISC THICKNESS (for 4GR-FSE)
- Using a micrometer, measure the disc thickness (for 4GR-FSE).
Standard thickness:
10.0 mm (0.390 in.)
Minimum thickness:
8.5 mm (0.334 in.)
- Using a micrometer, measure the disc thickness (for 4GR-FSE).
- INSPECT PAD LINING THICKNESS
- Using a ruler, measure the pad lining thickness.
Standard thickness:
10.5 mm (0.413 in.)
Minimum thickness:
1.0 mm (0.039 in.)
- Using a ruler, measure the pad lining thickness.

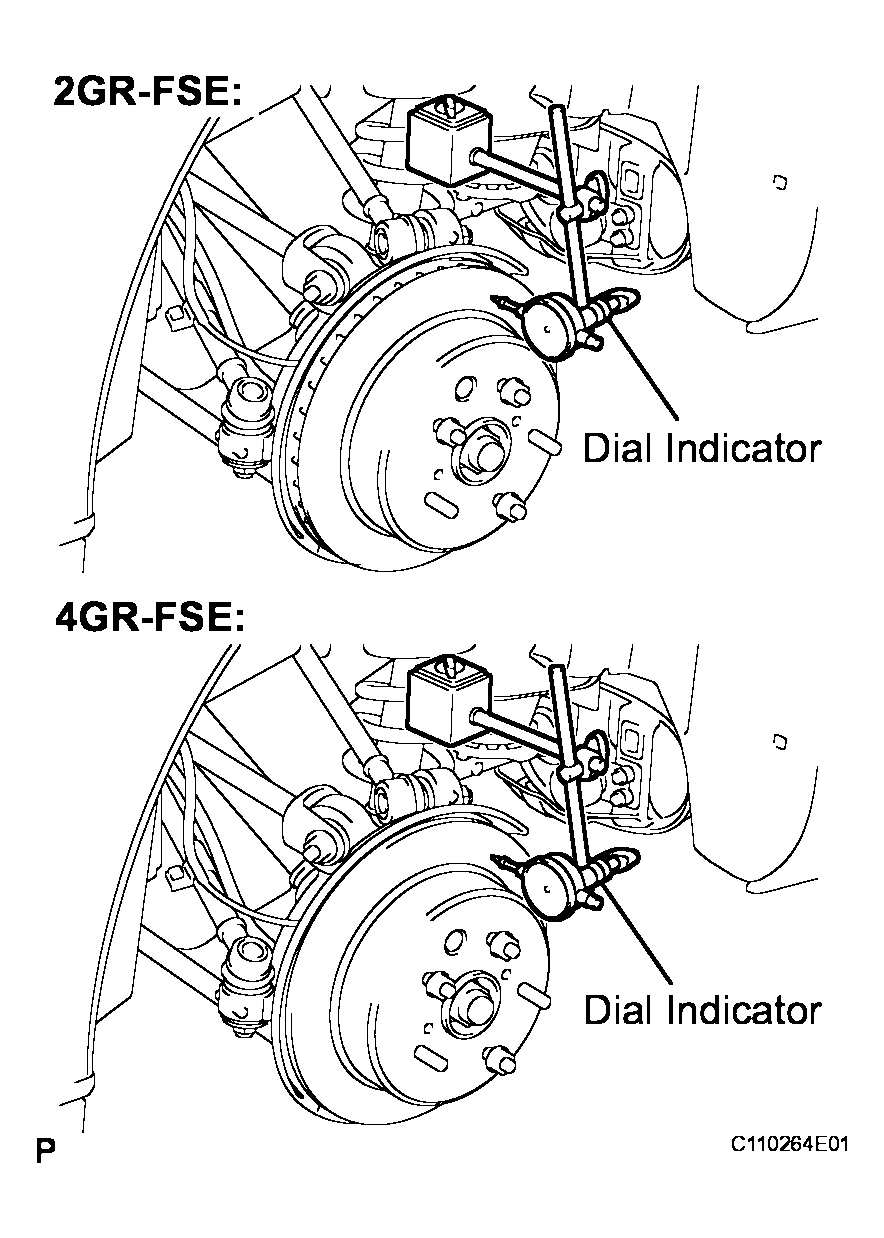

- INSPECT DISC RUNOUT
- Temporarily fasten the rear disc with the hub nuts.
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
- Using a dial indicator, measure the disc runout 10 mm (0.39 in.) away from the outer edge of the rear disc
Maximum disc runout:
0.05 mm (0.0020 in.)
- If the runout exceeds the maximum value, change the installation positions of the disc and axle so that the runout will become minimal. If the runout exceeds the maximum even when the installation positions are changed, check the bearing play in the axial direction and the axle hub runout (See ON-VEHICLE INSPECTION
- Remove the rear disc.
- Temporarily fasten the rear disc with the hub nuts.
