Rear Brake Pad, Brake Caliper & Brake Rotor: Disassembly

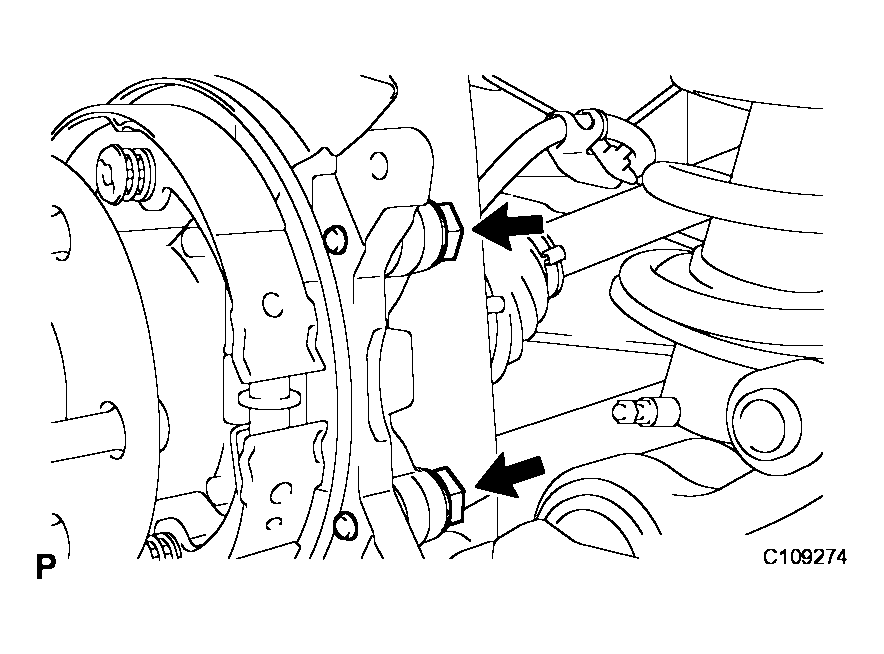

1. REMOVE CALIPER SUPPORT BRACKET
   1. Remove the caliper support bracket from the rear cylinder assembly.
2. REMOVE REAR DISC BRAKE CYLINDER SLIDE BUSHING
   1. Remove the cylinder slide bushing from the cylinder assembly rear.
   Fig 1: Removing Cylinder Slide Bushing From Cylinder Assembly Rear

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE REAR DISC BRAKE BUSHING DUST BOOT
   1. Remove the bushing dust boot from the cylinder assembly rear.
4. REMOVE REAR DISC BRAKE PISTON
   1. Place a piece of cloth between the piston and the rear cylinder assembly.
   2. Use compressed air to remove the piston from the rear cylinder assembly.
      CAUTION: Do not place your fingers in front of the brake piston when using compressed air.
      NOTE: Do not spatter the brake fluid.
5. REMOVE CYLINDER BOOT
   1. Remove the cylinder boot from the piston or rear cylinder assembly.

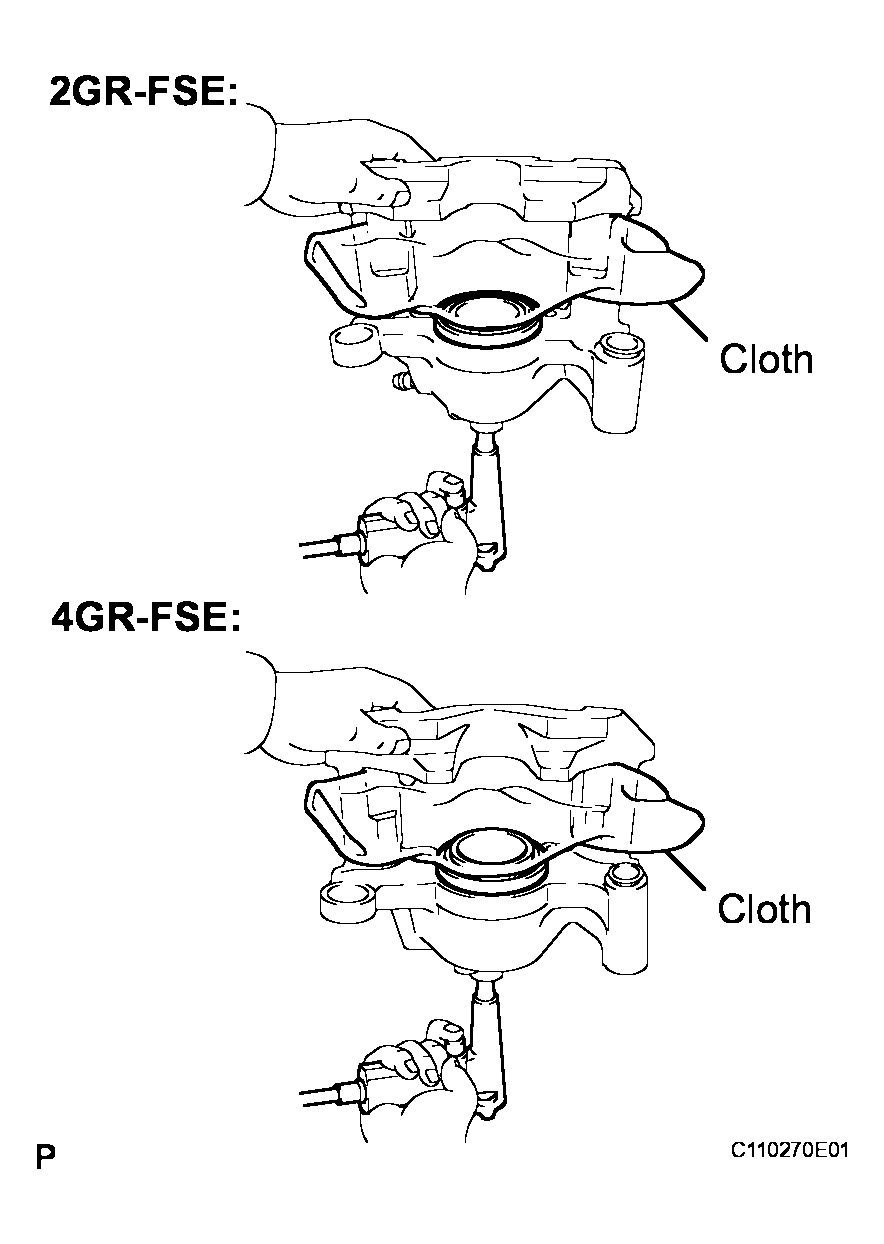

   Fig 2: Placing Piece Of Cloth Between Piston & Rear Cylinder Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE PISTON SEAL
   1. Using a screwdriver, remove the piston seal from the rear cylinder assembly.
      NOTE: Do not damage the inner cylinder and the cylinder groove.

      HINT:

      Tape the screwdriver tip before using.

7. REMOVE REAR DISC BRAKE BLEEDER PLUG CAP
8. REMOVE REAR DISC BRAKE BLEEDER PLUG

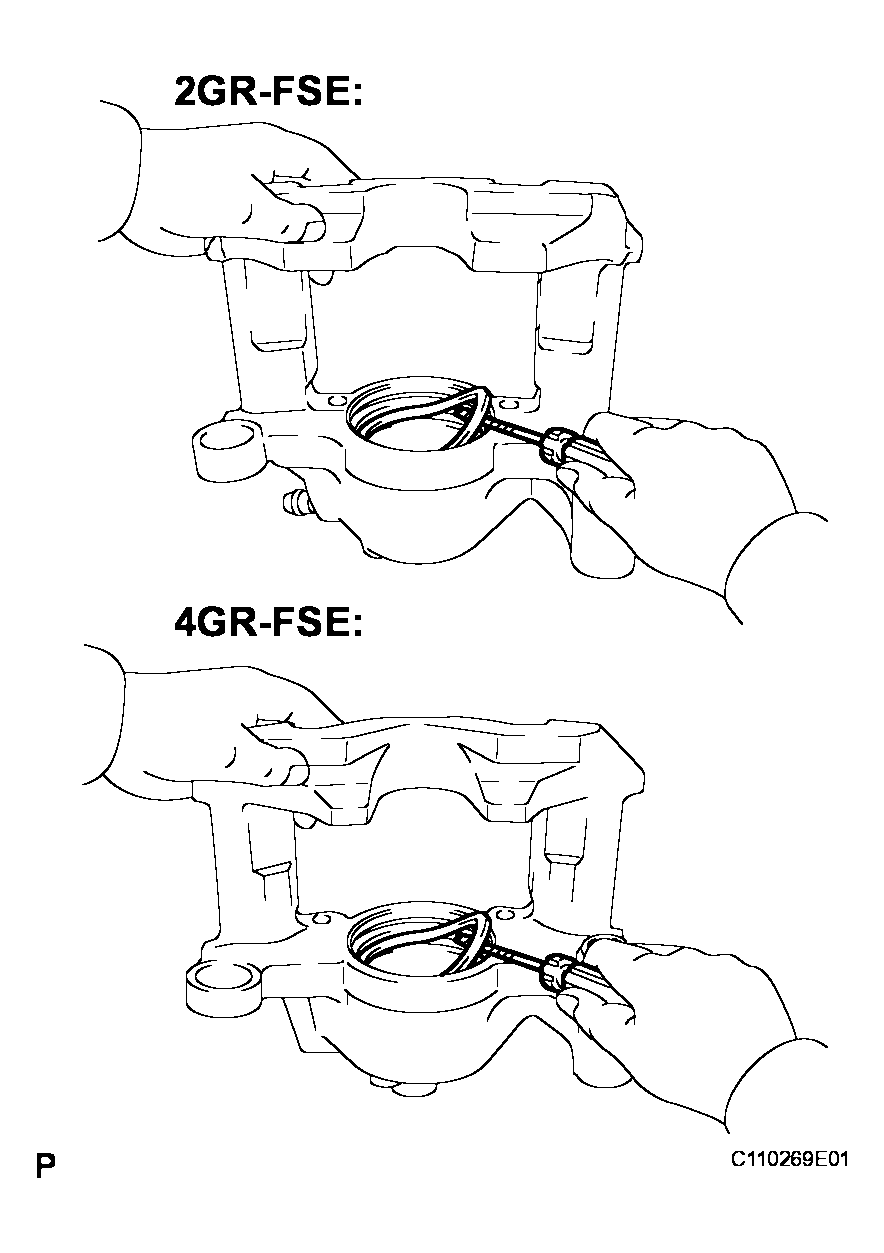

   Fig 3: Removing Piston Seal From Rear Cylinder Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE REAR DISC
   1. Put matchmarks on the rear disc and the axle hub.
   2. Remove the read disc.
10. REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG

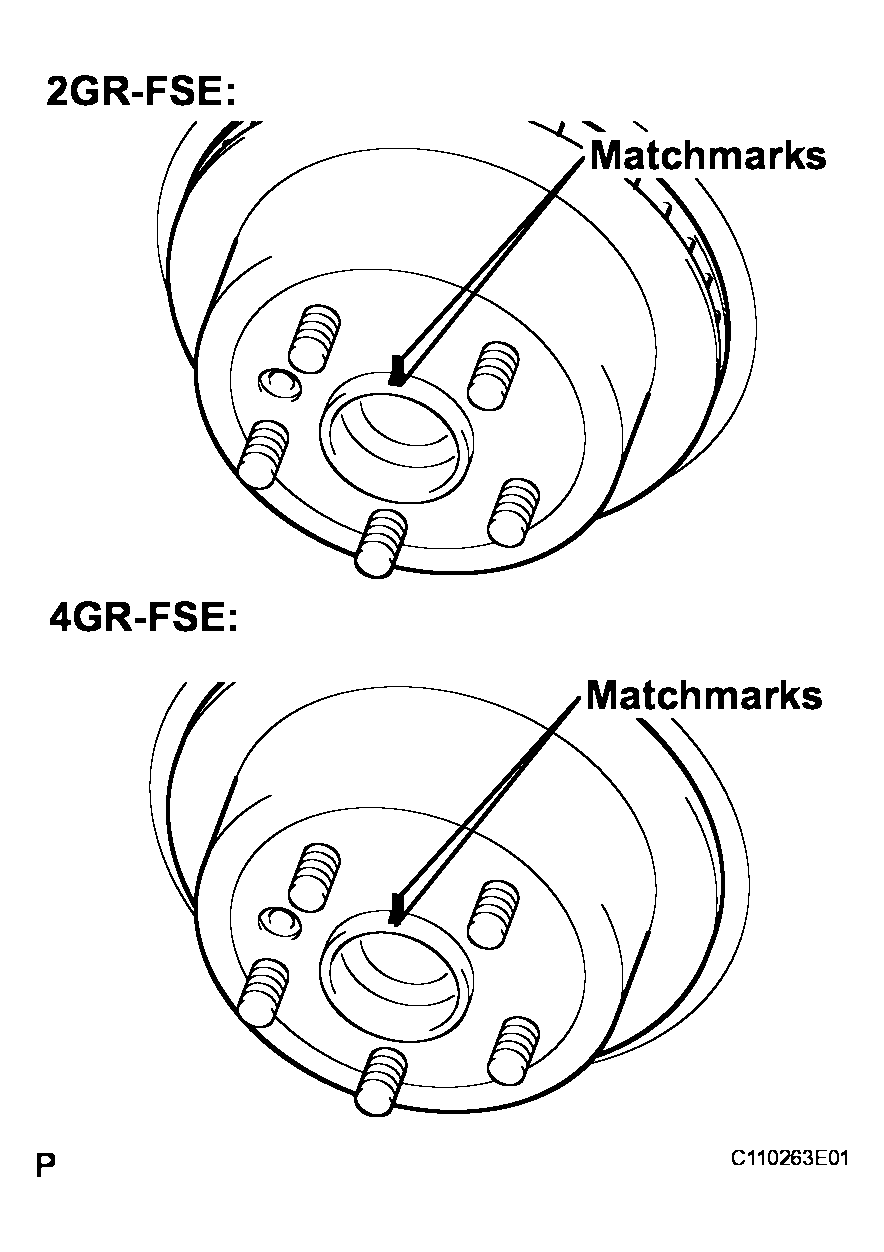

Fig 4: Putting Matchmarks On Rear Disc & Axle Hub

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
