Rear Brake Pad, Brake Caliper & Brake Rotor: Components

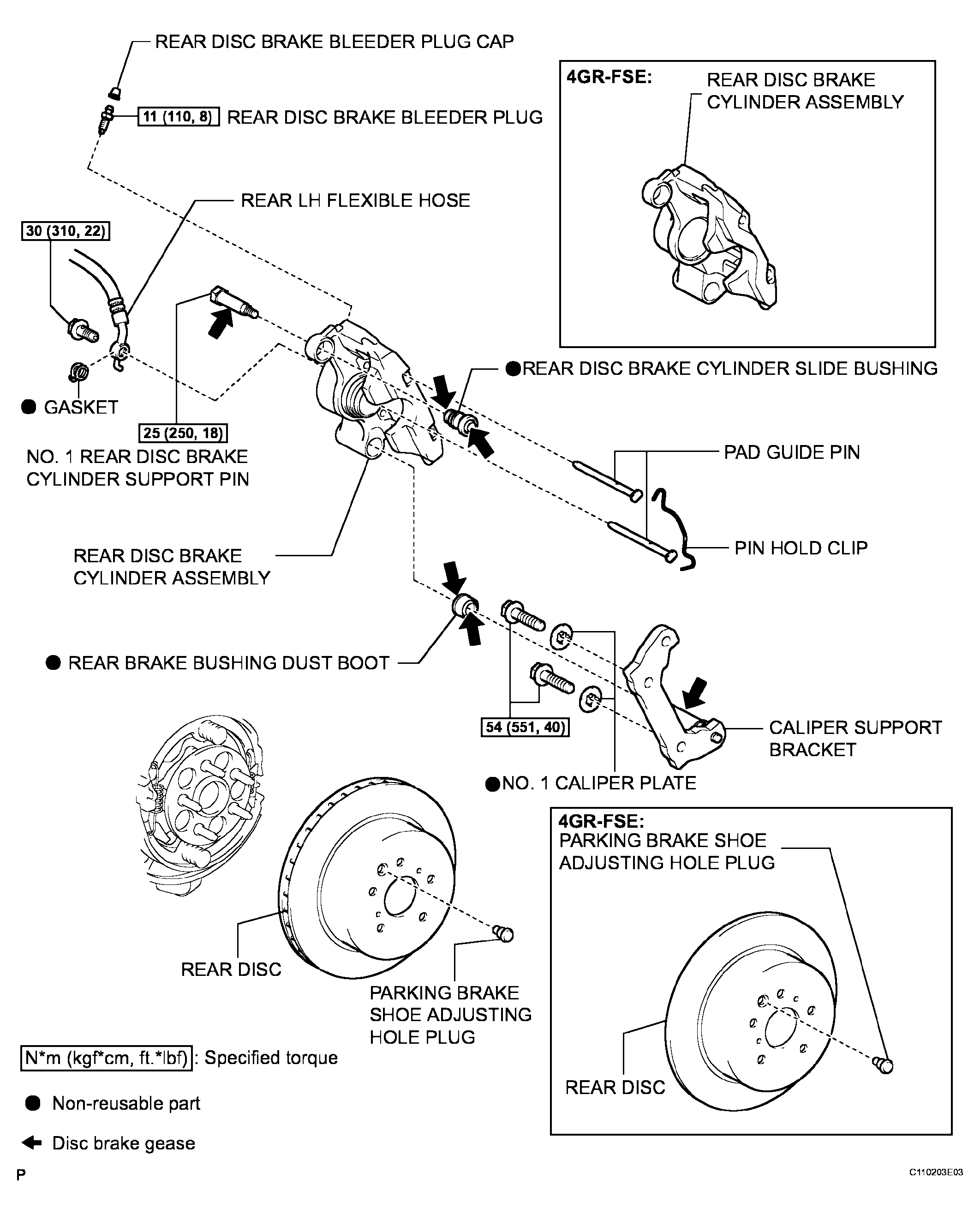

Fig 1: Identifying Rear Brake Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

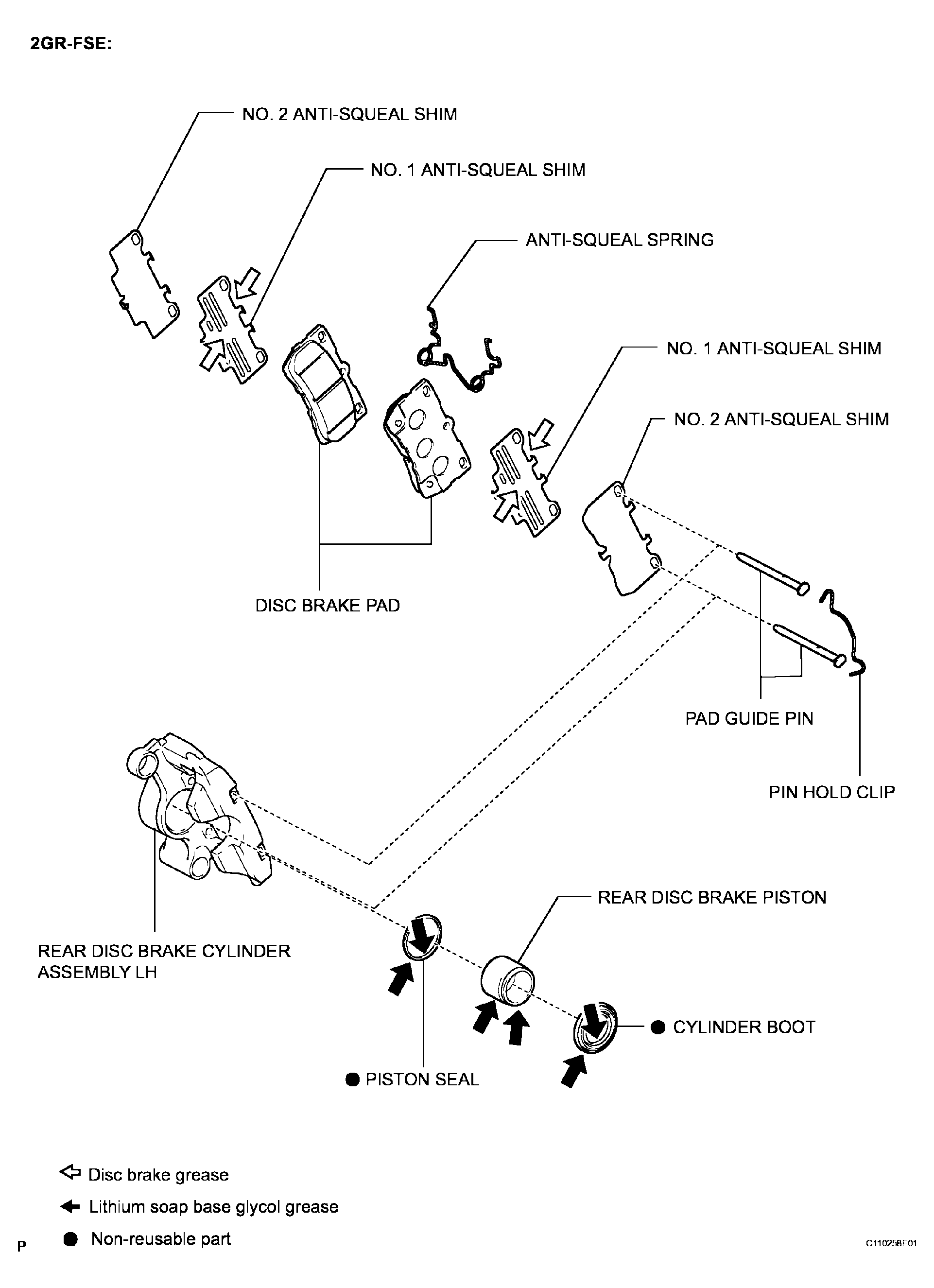

Fig 2: Identifying Rear Brake Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

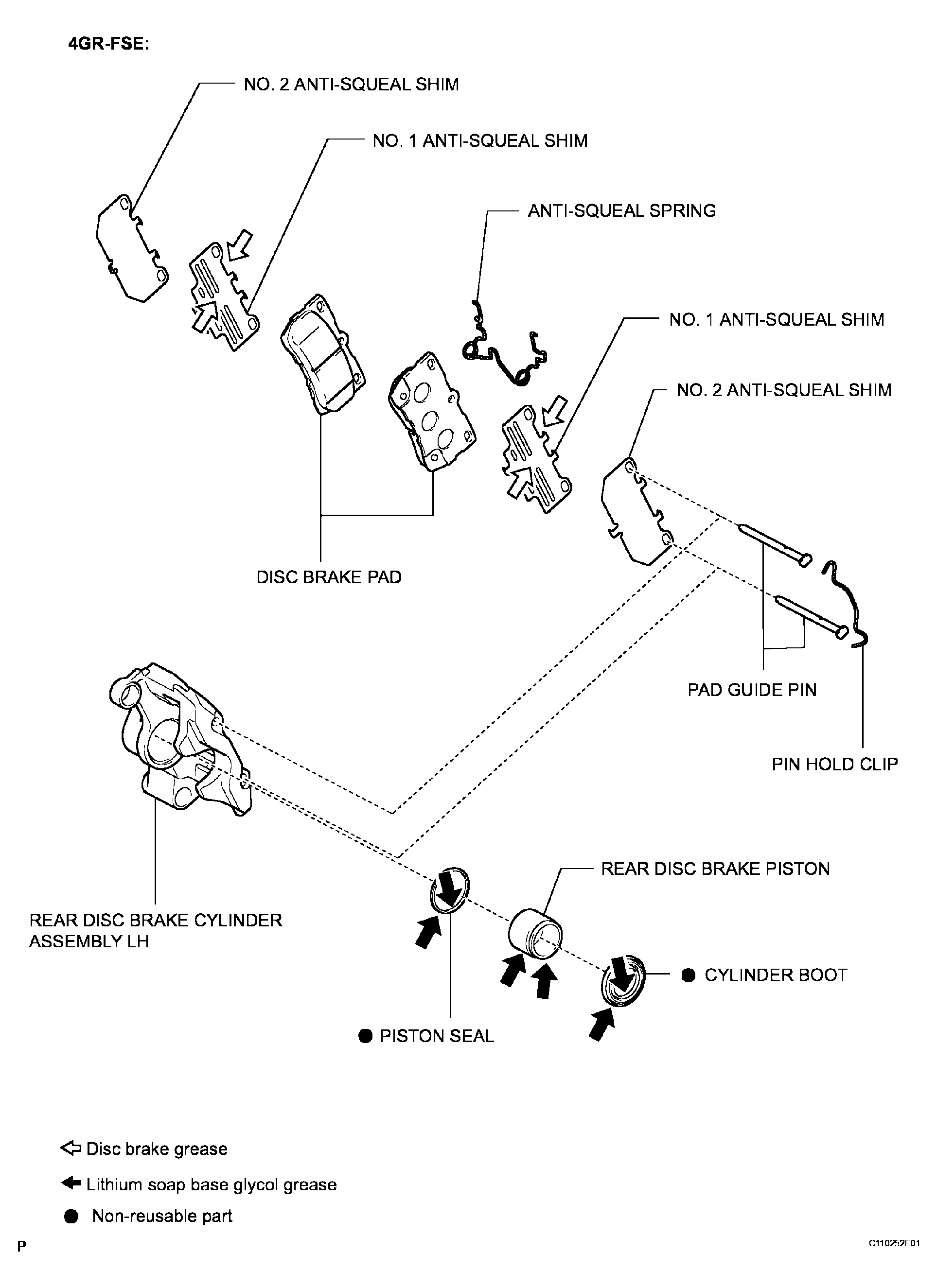

Fig 3: Identifying Rear Brake Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
