Rear Brake Flexible Hose: Installation

INSTALL REAR BRAKE FLEXIBLE HOSE
1. Connect the rear brake flexible hose with the union bolt and a new gasket.
  Torque: 30 N*m (310 kgf*cm, 22 ft.*lbf)

  NOTE: Install the flexible hose lock securely in the lock hole in the rear disc brake cylinder assembly.
2. Connect the brake tube to rear brake flexible hose with SST while holding the rear brake flexible hose with a wrench.
  SST 09023-00101

  Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)
  NOTE:
  - Do not bend or damage the brake line.
  - Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.
3. Install the flexible hose with a new clip.

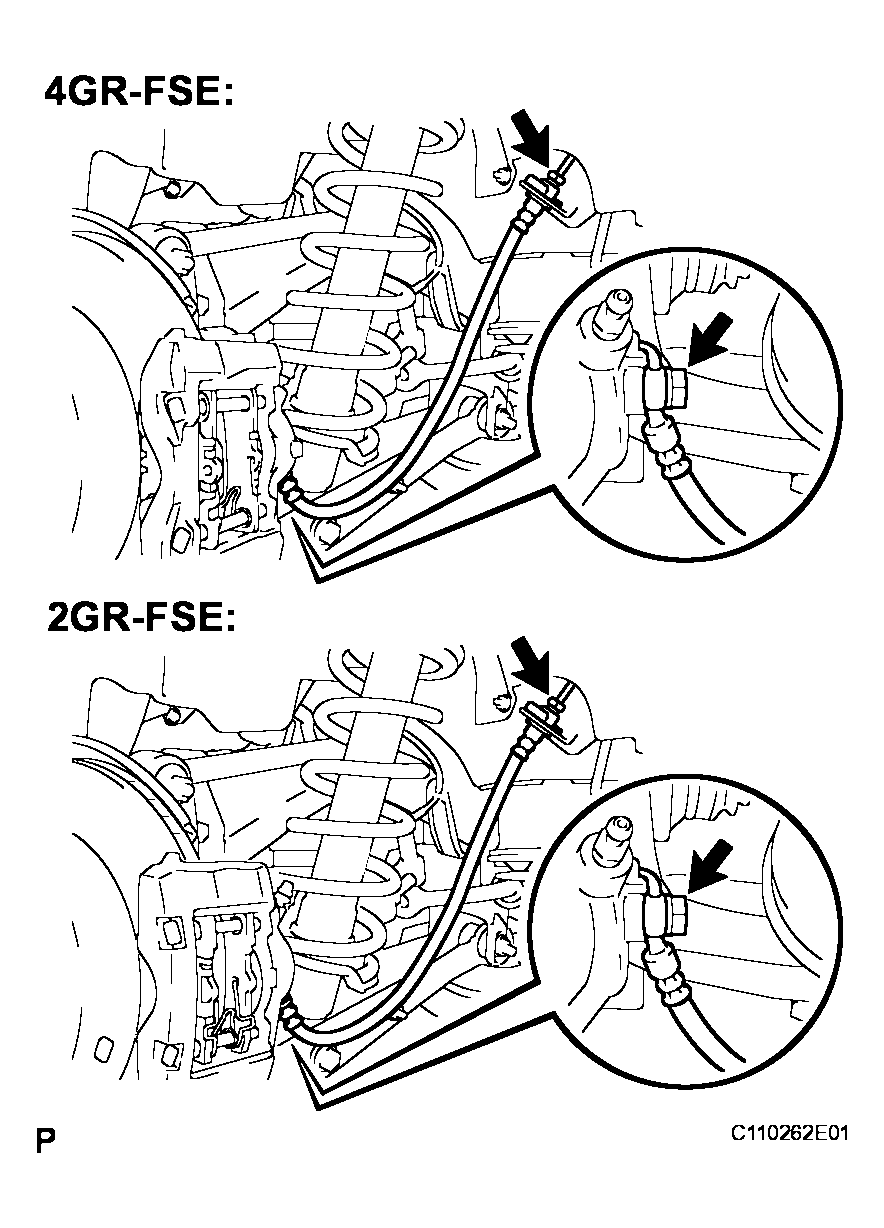

  Fig 1: Installing Flexible Hose With Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - When installing the rear brake flexible hose, face the identification mark to the outside of the vehicle and minimize twisting of the hose.
  - Install the clip as far as it will go.
FILL RESERVOIR WITH BRAKE FLUID (See BLEEDING )
BLEED BRAKE LINE (See Step 3 in BLEEDING )
BLEED BRAKE ACTUATOR ASSEMBLY (See Step 4 in BLEEDING )
INSPECT FLUID LEVEL IN RESERVOIR (See Step 5 in BLEEDING )
INSPECT FOR BRAKE FLUID LEAKAGE
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
