Front Brake Flexible Hose: Removal

HINT:

• Use the same procedure for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL
2. DRAIN BRAKE FLUID
3. REMOVE FRONT BRAKE FLEXIBLE HOSE
   1. Remove the brake tube with SST while holding the front brake flexible hose with a wrench.

      SST 09023-00101

      NOTE:

      • Do not bend or damage the brake tube.
      • Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.
   2. Remove the clip.
   3. Remove the union bolt, the front brake flexible hose and gasket.

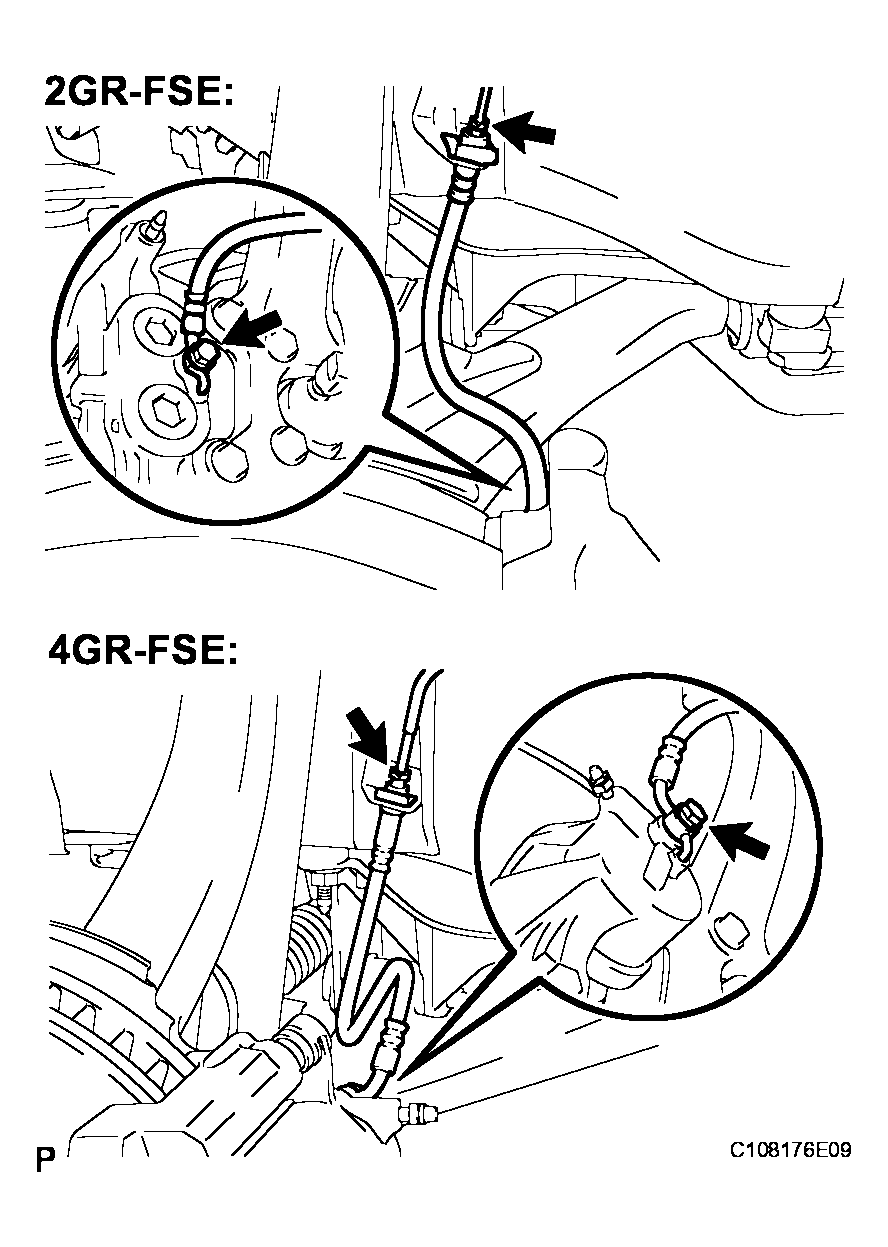

Fig 1: Removing Brake Tube With SST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
