FRONT BRAKE PAD, BRAKE CALIPER & BRAKE ROTOR (for 2GR-FSE): Installation

INSTALL DISC BRAKE CYLINDER ASSEMBLY LH
1. Install the caliper with the 2 bolts.

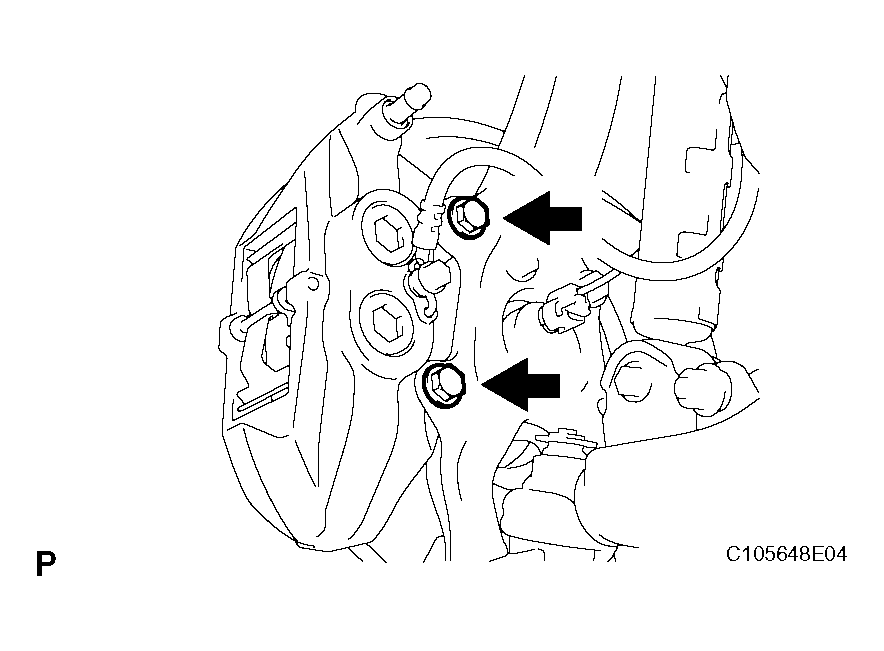

  Fig 1: Installing Caliper With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 78.4 N*m (800 kgf*cm, 58 ft.*lbf)
CONNECT FRONT FLEXIBLE HOSE
1. Connect the flexible hose with the union bolt and a new gasket.

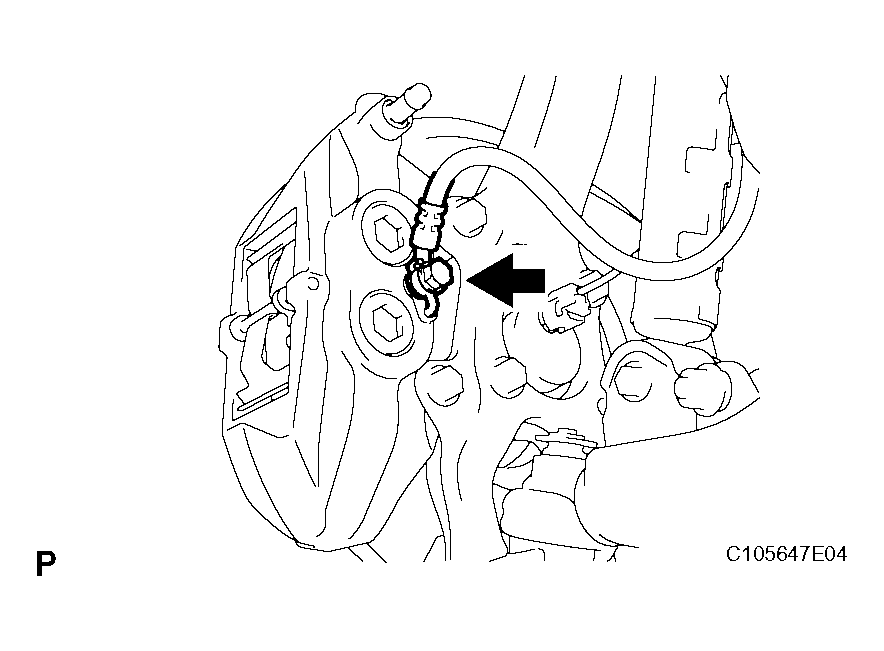

  Fig 2: Connecting Flexible Hose With Union Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

  NOTE: Install the flexible hose lock securely in the lock hole in the disc brake cylinder assembly.
INSTALL DISC BRAKE PAD AND ANTI-SQUEAL SHIMS
HINT:

Install the clip lock securely in the groove of the pad.
1. Apply disc brake grease to the anti-squeal shims and install them to each pad.

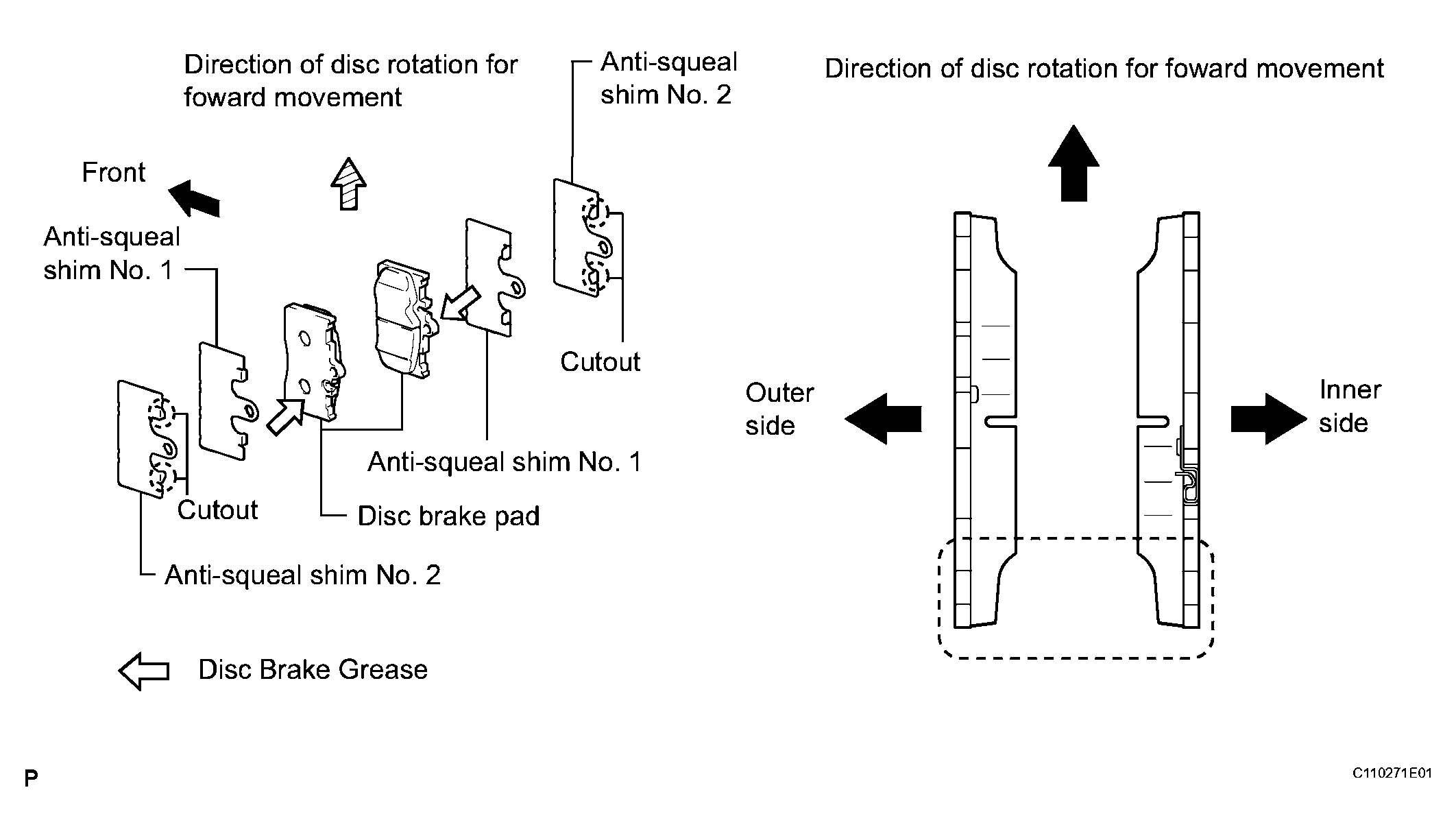

  Fig 3: Installing Disc Brake Pad & Anti-Squeal Shims
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - When replacing worn pads, the anti-squeal shims must be replaced together with the pad.
  - Install each shim in the correct position and direction.
  - There should be no oil or grease on the friction surfaces of the pads and the disc.
INSTALL FRONT DISC BRAKE ANTI-RATTLE SPRING
1. Install the hole pin while pushing on the front disc brake anti-rattle spring.
2. Install the clip.

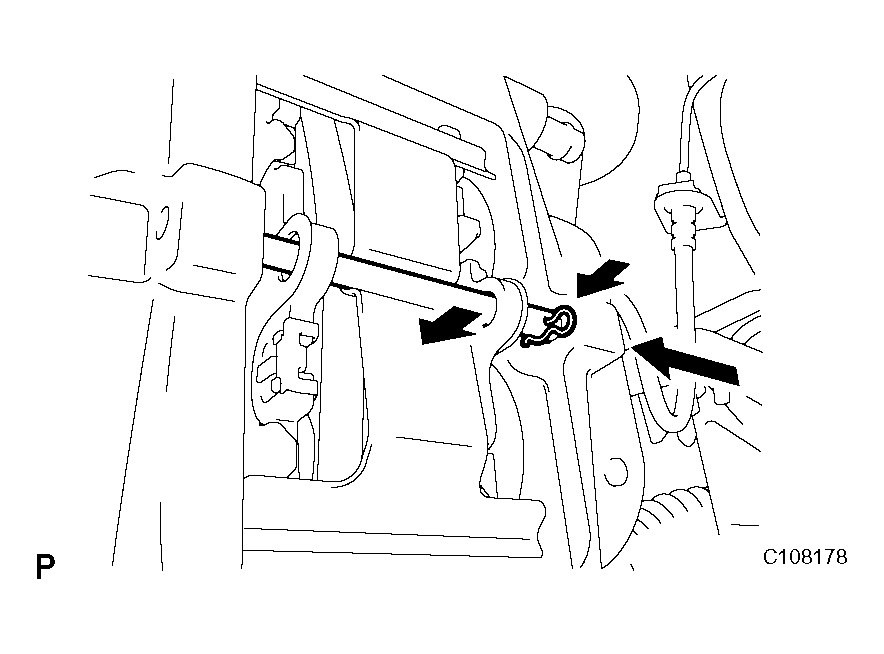

  Fig 4: Installing Front Disc Brake Anti-Rattle Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DISC BRAKE WITH HOLE PIN
FILL RESERVOIR WITH BRAKE FLUID (See BRAKE FLUID )
BLEED BRAKE LINE (See Step 3 in BLEEDING )
BLEED BRAKE ACTUATOR ASSEMBLY (See Step 4 in BLEEDING )
INSPECT FLUID LEVEL IN RESERVOIR (See Step 5 in BLEEDING )
INSPECT FOR BRAKE FLUID LEAKAGE
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
