Brake Pedal: Components

Fig 1: Brake Pedal Replacement Components With Torque Specifications (1 Of 4)
G04047754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Brake Pedal Replacement Components With Torque Specifications (2 Of 4)
G04047755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Brake Pedal Replacement Components With Torque Specifications (3 Of 4)
G04047756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

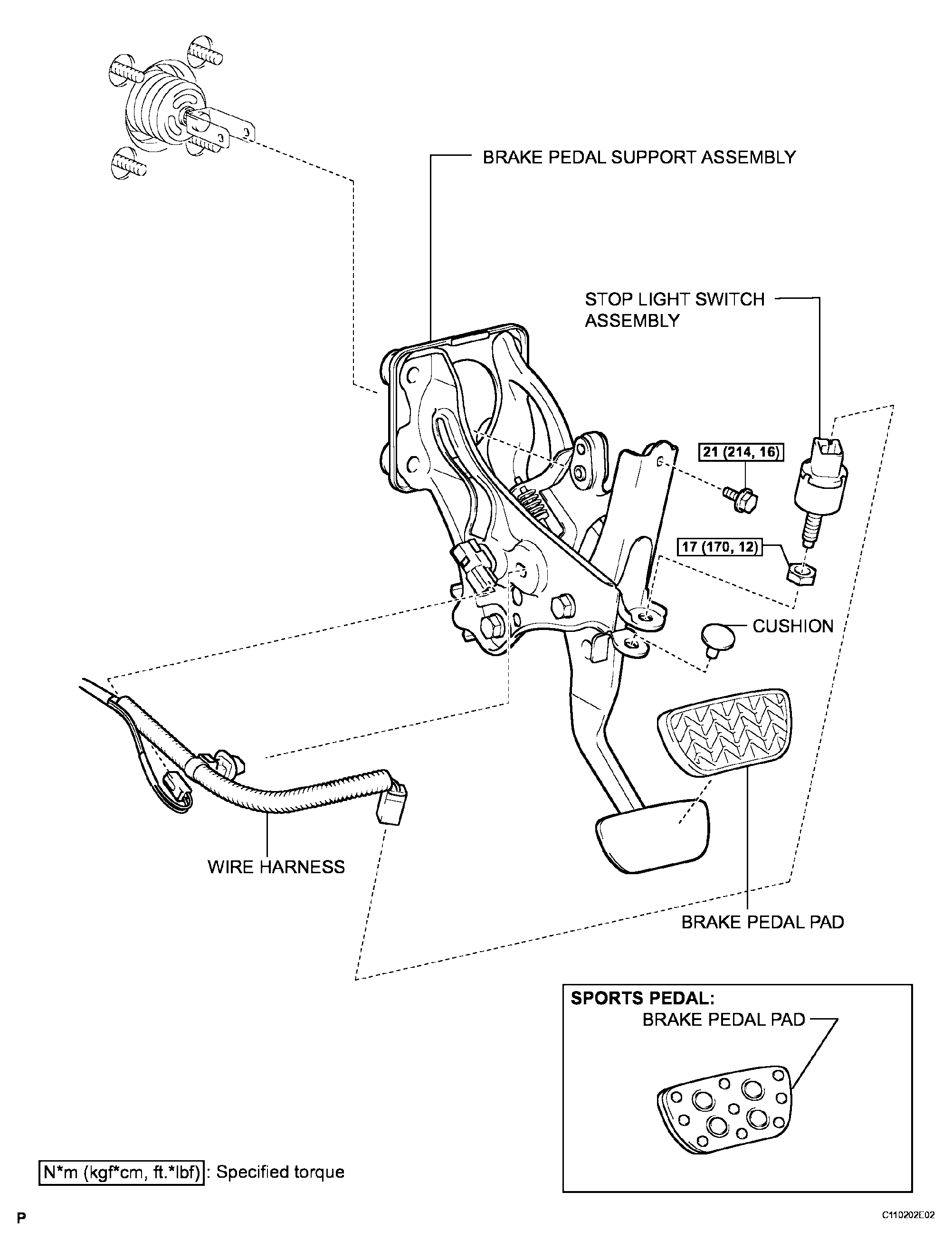

Fig 4: Brake Pedal Replacement Components With Torque Specifications (4 Of 4)
G04047757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
