Brake Master Cylinder: Components

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 2)
G04047767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

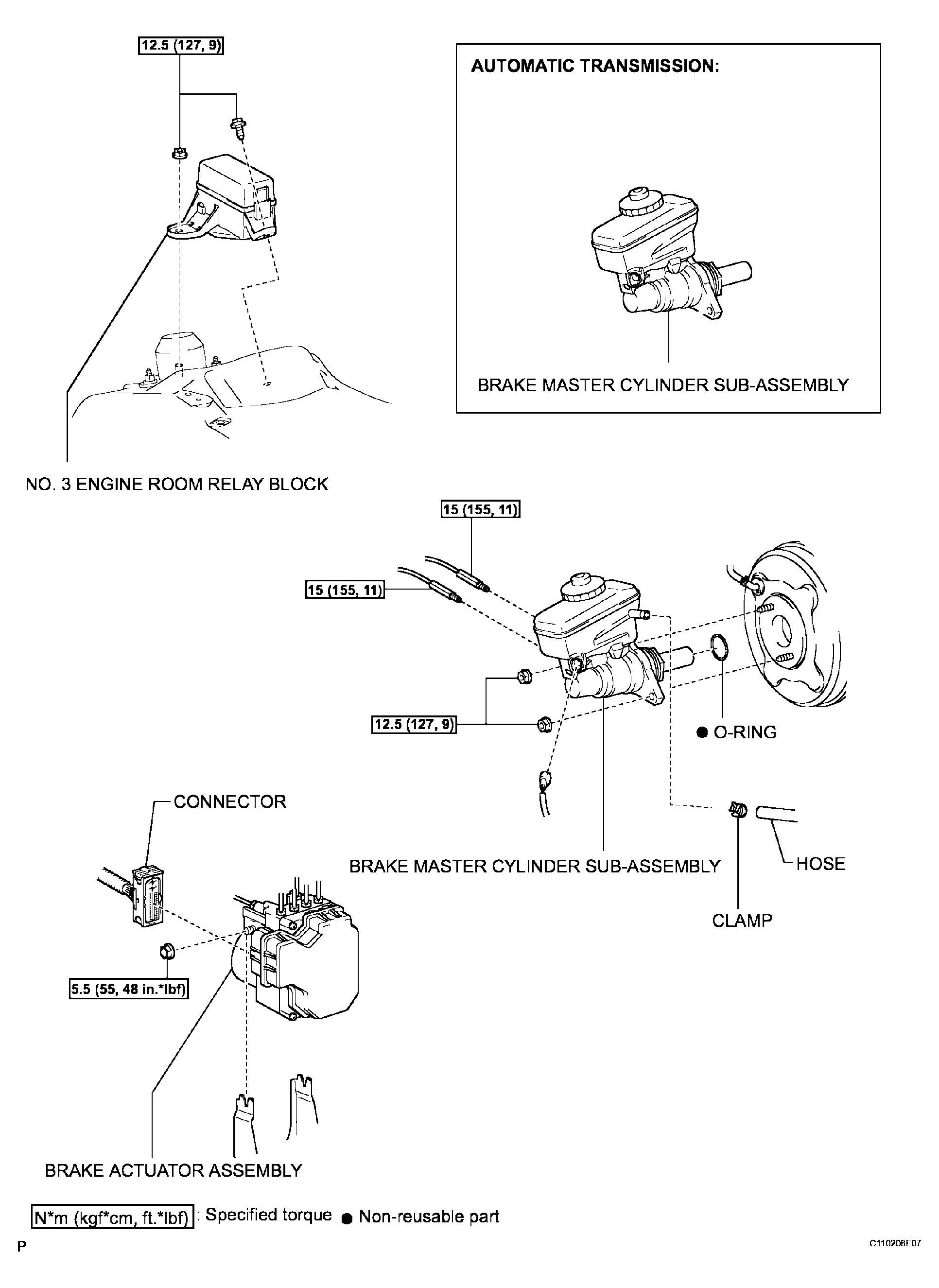

Fig 2: Brake Master Cylinder Replacement Components With Torque Specifications (2 Of 2)
G04047768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
