On-Vehicle Inspection

INSPECT FLUID LEVEL IN RESERVOIR
1. Check the fluid level.
  If brake fluid level is lowered, check for leakage and inspect the disc brake pad. If necessary, refill the reservoir with brake fluid after repair and replacement.

  Fluid:

  SAE J1703 or FMVSS No. 116 DOT 3

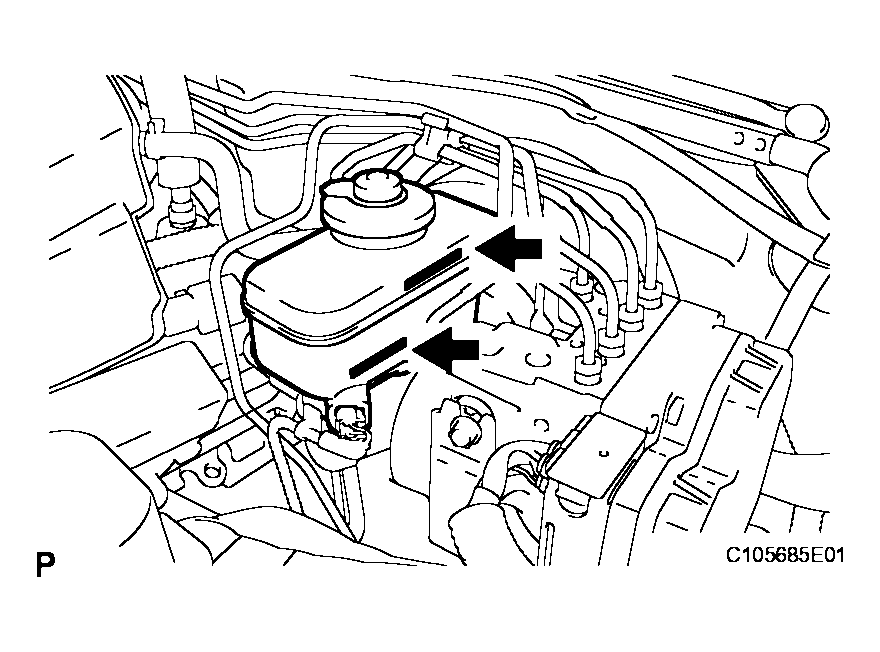

Fig 1: Checking Fluid Level

G04047739

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
