Brake Booster: Components

Fig 1: Brake Booster Replacement Components With Torque Specifications (1 Of 3)
G04047779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Brake Booster Replacement Components With Torque Specifications (2 Of 3)
G04047780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

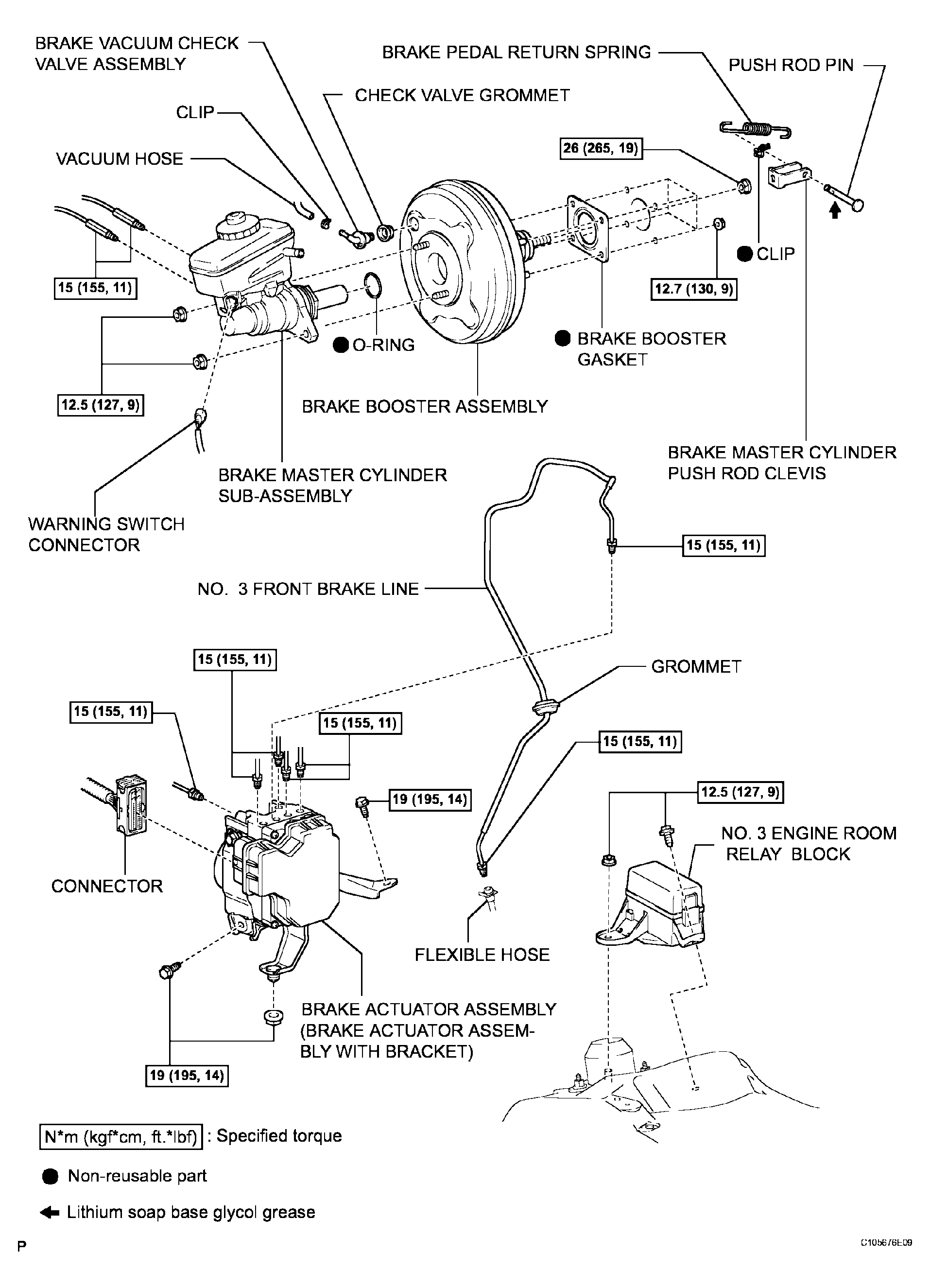

Fig 3: Brake Booster Replacement Components With Torque Specifications (3 Of 3)
G04047781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
