FRONT SEAT ASSEMBLY (for Manual Seat): Reassembly

  1. INSTALL VERTICAL ADJUSTER SPACER
    1. Engage the clip and install the vertical adjuster spacer.
  2. INSTALL SEAT POSITION AIRBAG SENSOR (for Driver Side) (See  REASSEMBLY   )

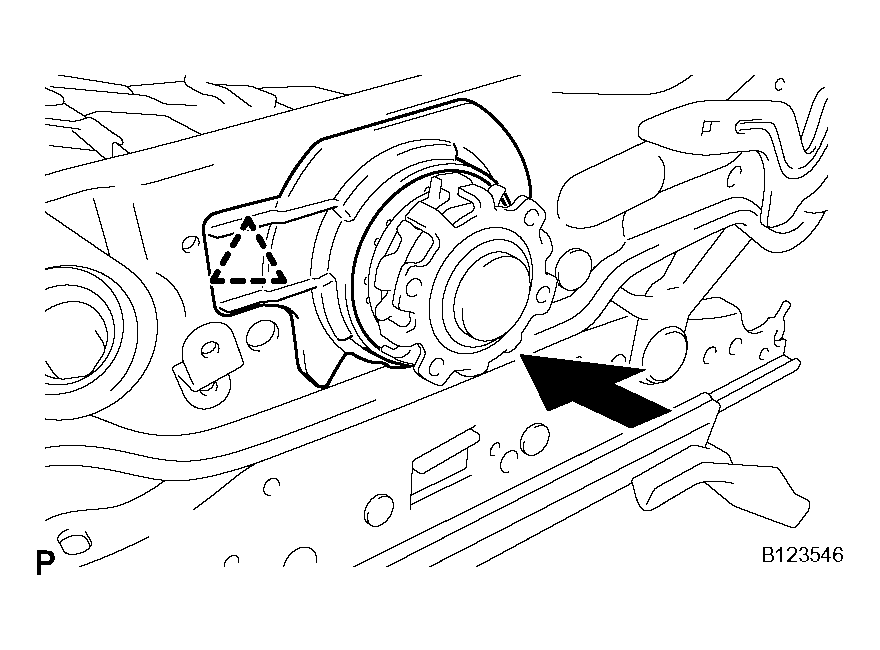

    Fig 1: Identifying Vertical Adjuster Spacer
    G04051102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT SEAT CUSHION SHIELD LOWER LH
    1. Engage the claw and install the seat cushion shield lower LH.
  4. INSTALL FRONT SEAT CUSHION SHIELD LOWER RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 2: Identifying Seat Cushion Shield Lower LH
    G04051103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL RECLINING ADJUSTER INSIDE COVER LH
    1. Install the reclining adjuster inside cover LH with the screw.
  6. INSTALL RECLINING ADJUSTER INSIDE COVER RH

    HINT:

    Use the same procedures described for the LH side.

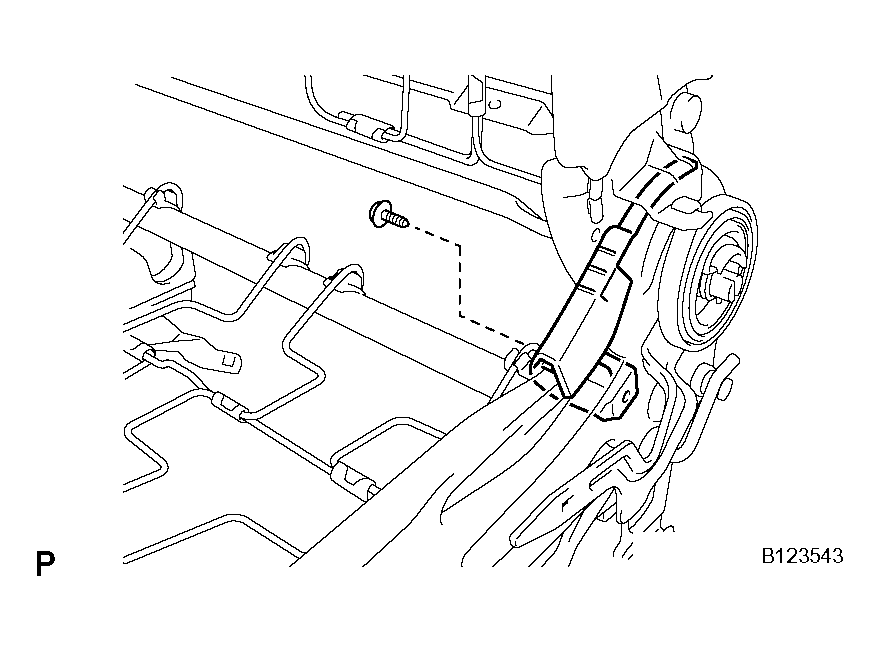

    Fig 3: Identifying Reclining Adjuster Inside Cover LH With Screw
    G04051104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL SEAT RECLINING ADJUSTER INSIDE COVER LH
    1. Engage the claw.
    2. Install the reclining adjuster inside cover LH with the screw.
  8. INSTALL SEAT RECLINING ADJUSTER INSIDE COVER RH

    HINT:

    Use the same procedures described for the LH side.

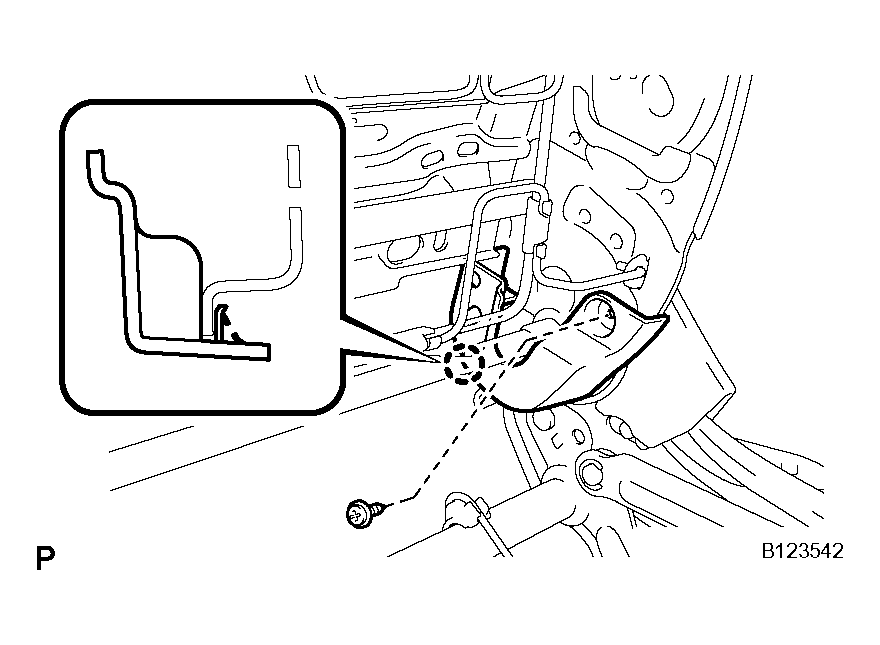

    Fig 4: Identifying Reclining Adjuster Inside Cover LH With Screw
    G04051105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT SEAT BACK HEATER ASSEMBLY (w/ Seat Heater System)
    1. Using a tacker, install the front seatback heater to the end of the seat cover with the tack pins.
    Fig 5: Identifying Front Seatback Heater To End Of Seat Cover With Tack Pins
    G04051106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL FRONT SEATBACK CUSHION COVER
    1. Using hog ring pliers, install the front seatback cover to the front seatback pad with new hog rings.
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, take care to minimize wrinkles as much as possible.
  11. INSTALL FRONT SEATBACK COVER WITH PAD

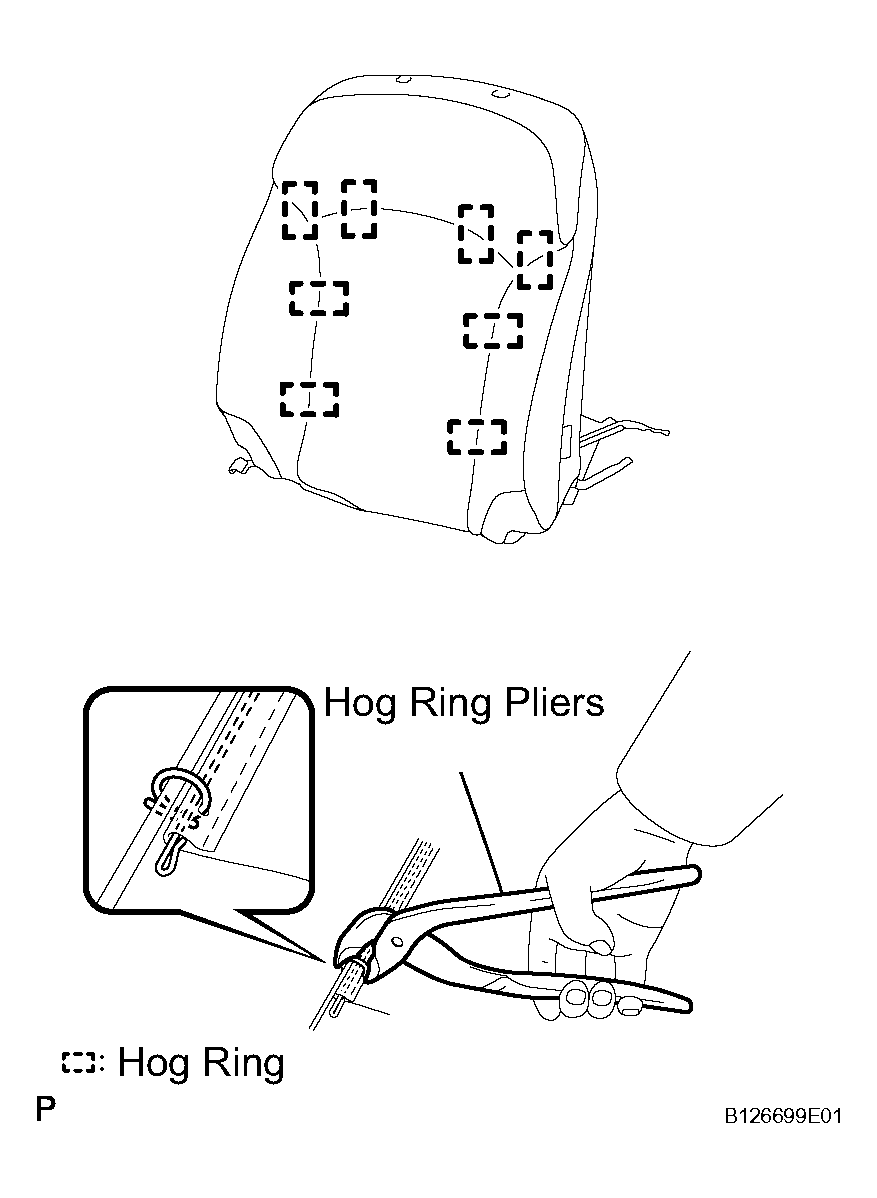

    Fig 6: Identifying Front Seatback Cover To Front Seatback Pad With New Hog Rings
    G04051107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL FRONT SEAT HEADREST SUPPORT ASSEMBLY
    1. Engage the 4 claws and install the front seat headrest support assemblies.
    Fig 7: Identifying Claws And Front Seat Headrest Support Assemblies
    G04051108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)
    1. Using a tacker, install the front seat cushion heater to the end of the seat cover with the tack pins.
    Fig 8: Identifying Tack Pin Locations
    G04058179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL FRONT SEAT CUSHION COVER
    1. Using hog ring pliers, install new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.

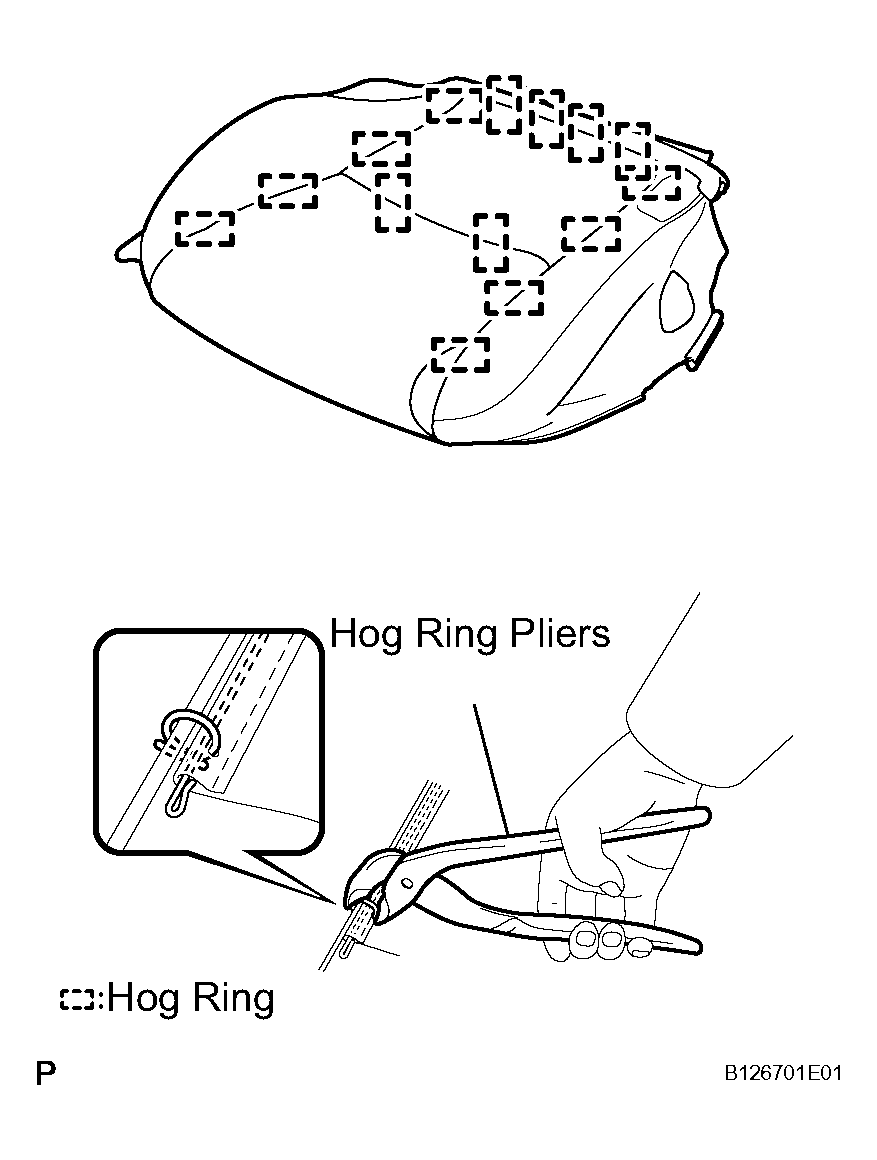

      Fig 9: Identifying Hog Rings
      G04051110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using hog ring pliers, install the front seat cushion cover with new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.

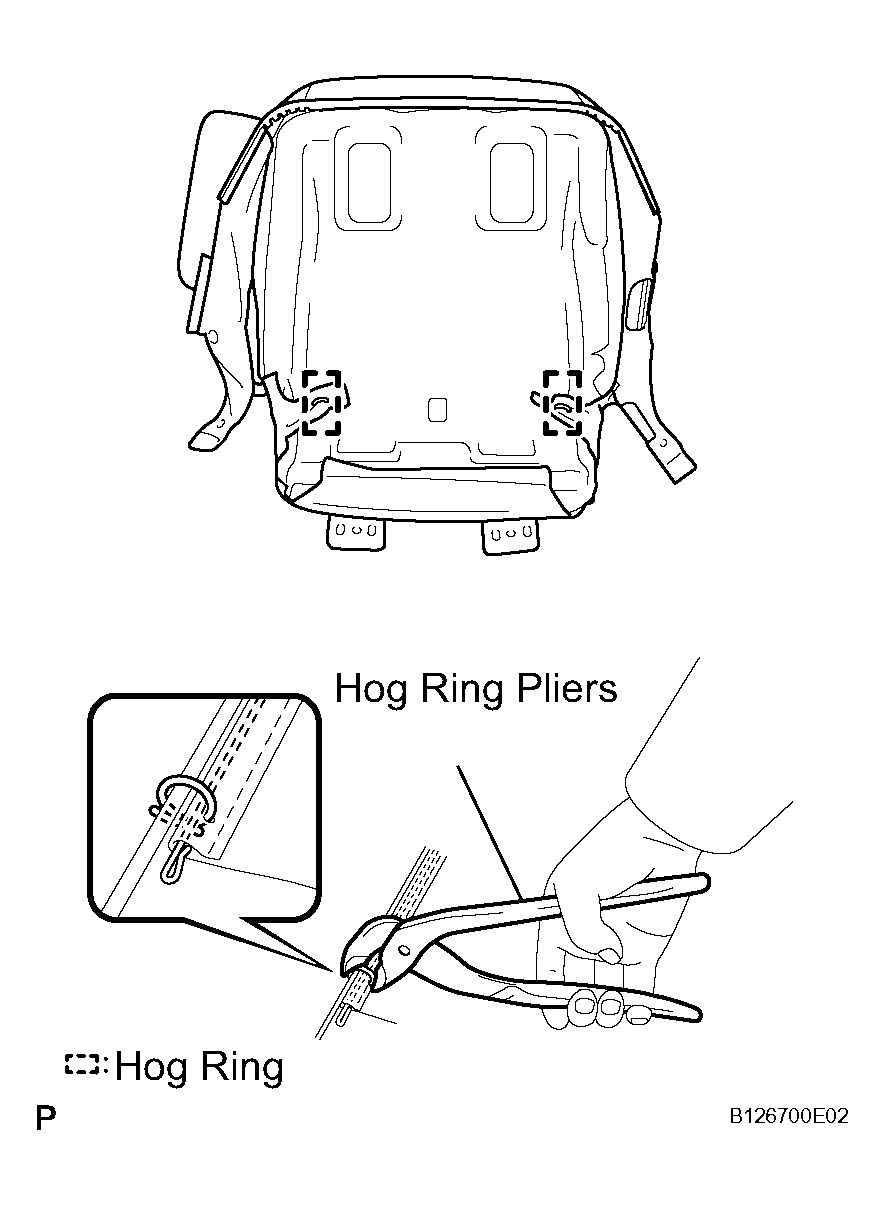

    Fig 10: Identifying Front Seat Cushion Cover With New Hog Rings
    G04051111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FRONT SEAT CUSHION COVER WITH PAD
    1. Install the hooks and front seat cushion cover with pad.

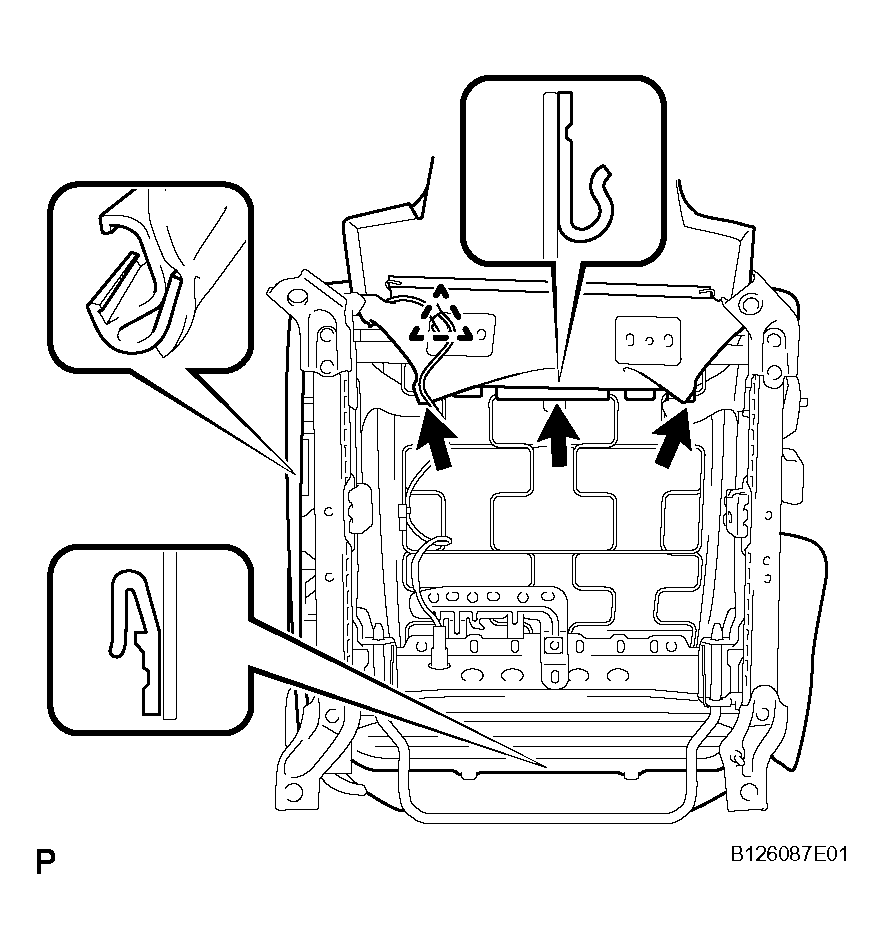

      Fig 11: Identifying Hooks And Front Seat Cushion Cover With Pad
      G04051112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Passenger seat only:
      1. Install the seat position airbag sensor connector.

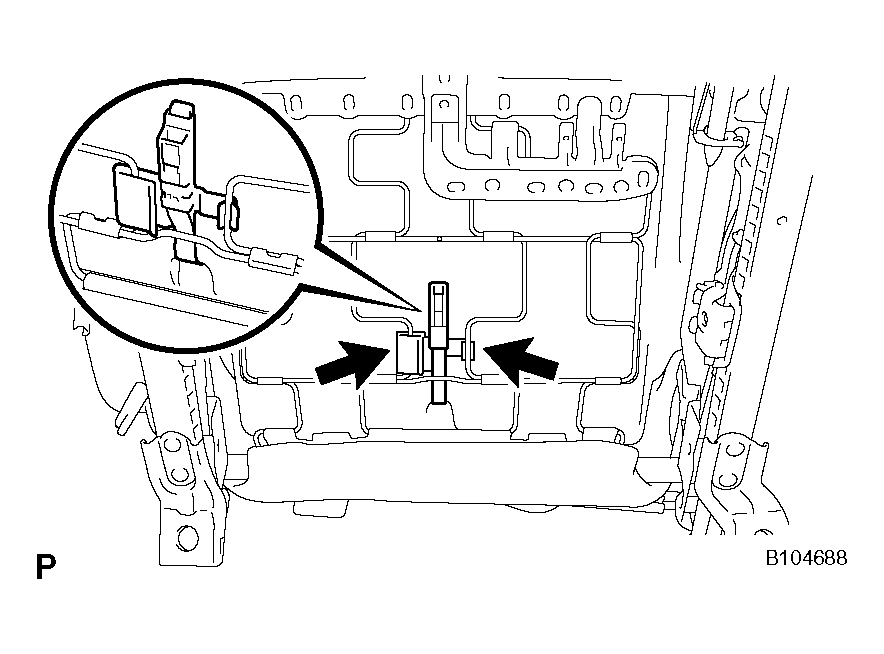

      Fig 12: Identifying Seat Position Airbag Sensor Connector
      G04051113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL FRONT SEAT INNER CUSHION SHIELD
    1. Engage the 2 claws and clip.
    2. Install the front seat inner cushion shield with the screw.
  17. INSTALL FRONT SEAT INNER BELT ASSEMBLY (See  INSTALLATION  )

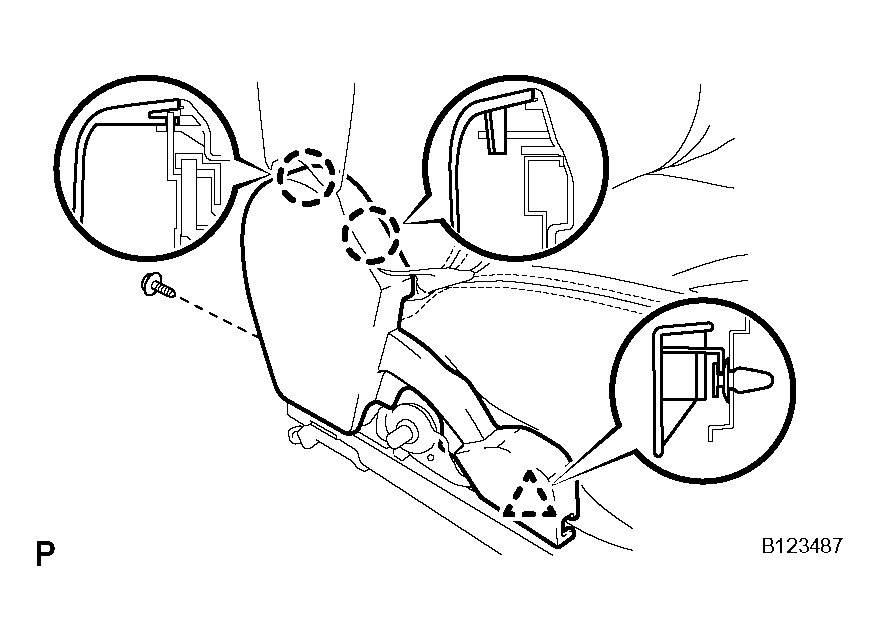

    Fig 13: Identifying Front Seat Inner Cushion Shield With Screw
    G04051114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL FRONT SEAT CUSHION SHIELD (for Driver Seat)
    1. Engage the claw and clip.
    2. Install the front seat cushion shield with the screw.

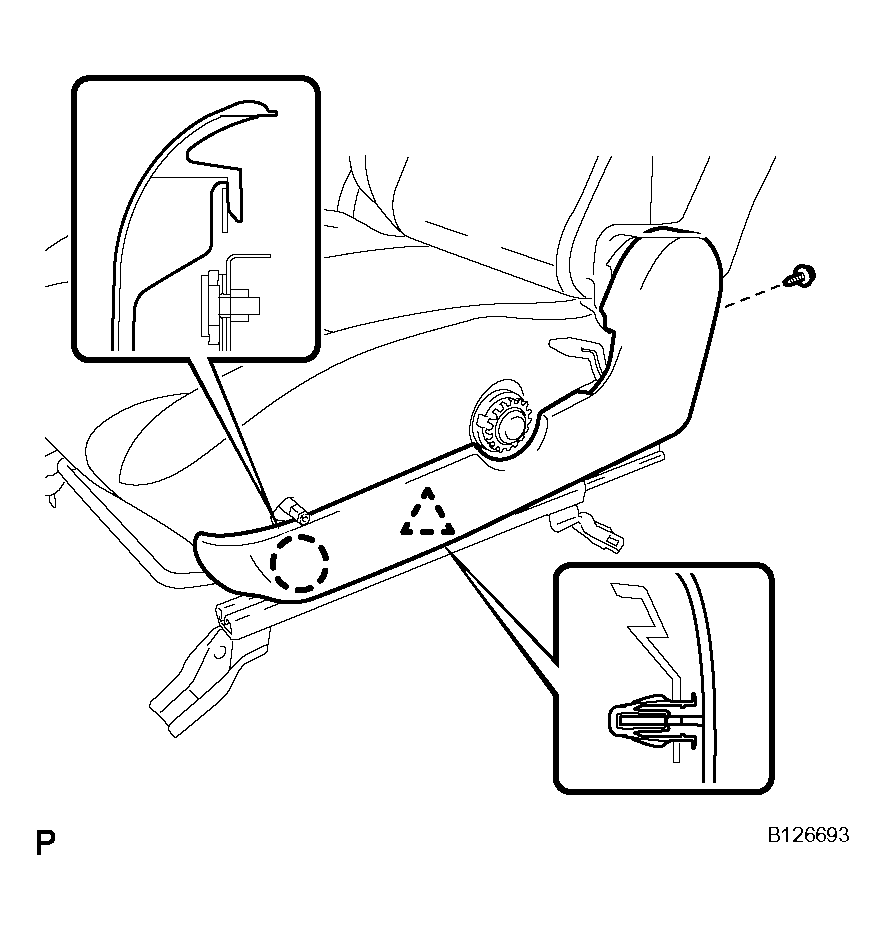

    Fig 14: Identifying Front Seat Cushion Shield With Screw
    G04051115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL RECLINING ADJUSTER RELEASE HANDLE
    1. Engage the claw and install the reclining adjuster release handle.
    Fig 15: Identifying Claw And Reclining Adjuster Release Handle
    G04051116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL VERTICAL ADJUSTING HANDLE (for Driver Seat)
    1. Install the vertical adjusting handle with the 2 screws.
    Fig 16: Identifying Vertical Adjusting Handle With 2 Screws
    G04051117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL VERTICAL SEAT ADJUSTER KNOB CAP (for Driver Seat)
    1. Engage the 3 claws and install the vertical seat adjuster knob cap.
  22. INSTALL VERTICAL SEAT ADJUSTER KNOB (for Driver Seat)

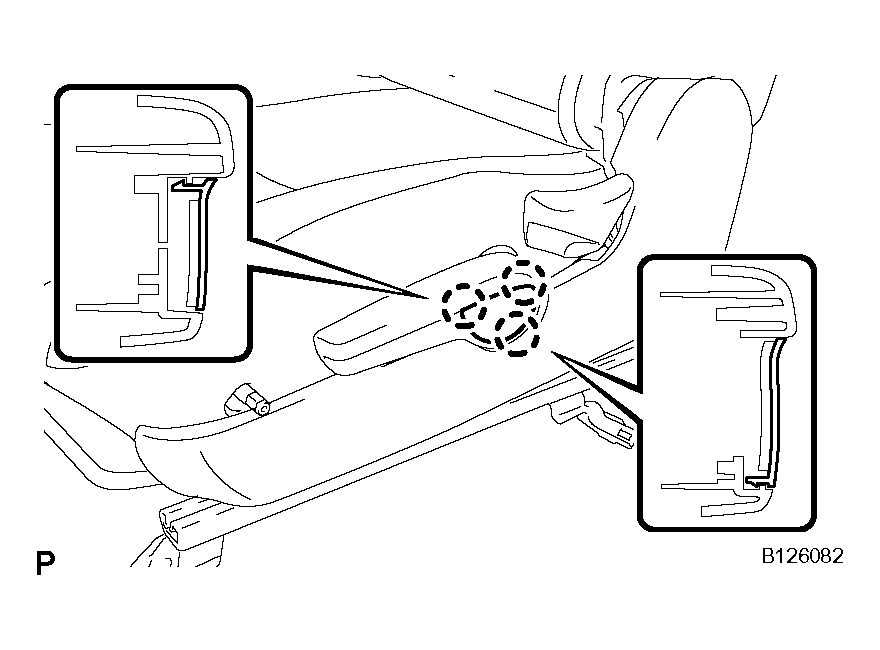

    Fig 17: Identifying Claws And Vertical Seat Adjuster Knob Cap
    G04051118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
