Rear Door Belt Molding: Removal

  1. REMOVE REAR DOOR BELT MOLDING ASSEMBLY
    1. Fully open the rear door glass.
    2. Put protective tape on the door below the rear door belt molding assembly.
    3. Using a molding remover, disengage the 5 clips and remove the rear door belt molding assembly.

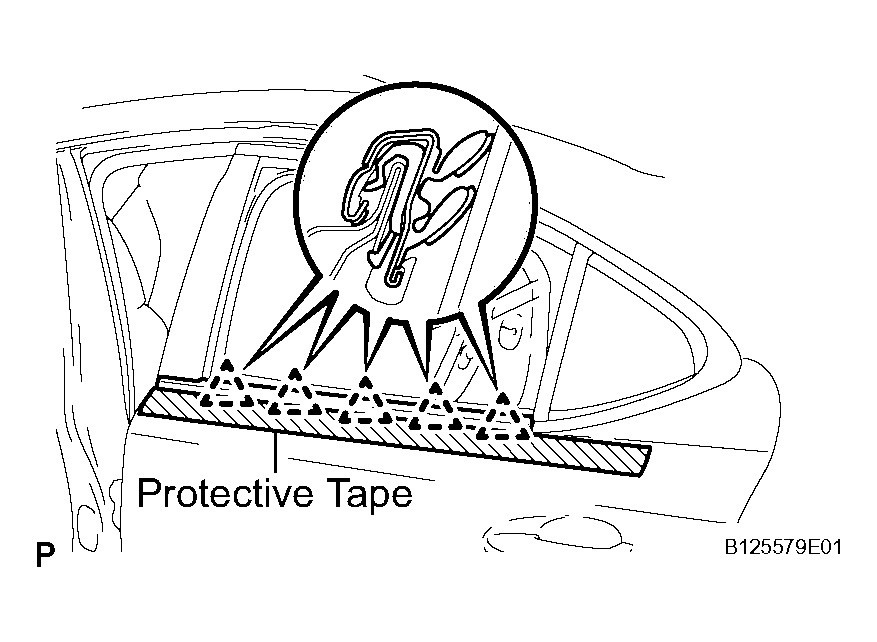

    Fig 1: Removing Rear Door Belt Molding Assembly
    G04051573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
