Rear Side Speaker: Removal

  1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG (See  DISASSEMBLY  )
  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (See  DISASSEMBLY  )
  3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY (See  DISASSEMBLY  )
  4. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP (See  DISASSEMBLY  )
  5. REMOVE REAR SPEAKER ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 3 bolts and the rear speaker assembly.

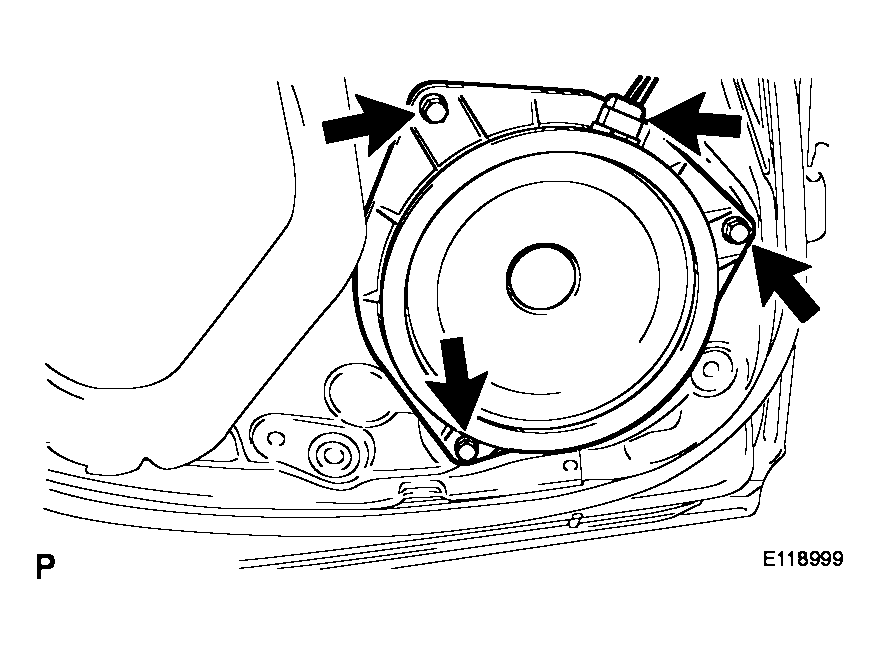

      Fig 1: Identifying Bolts And Rear Speaker Assembly
      G04050229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not touch the cone part of the speaker.
  6. REMOVE REAR NO. 2 SPEAKER ASSEMBLY
    1. Disengage the speaker connector clamp.
    2. Disengage the 3 claws and remove the rear No. 2 speaker assembly.

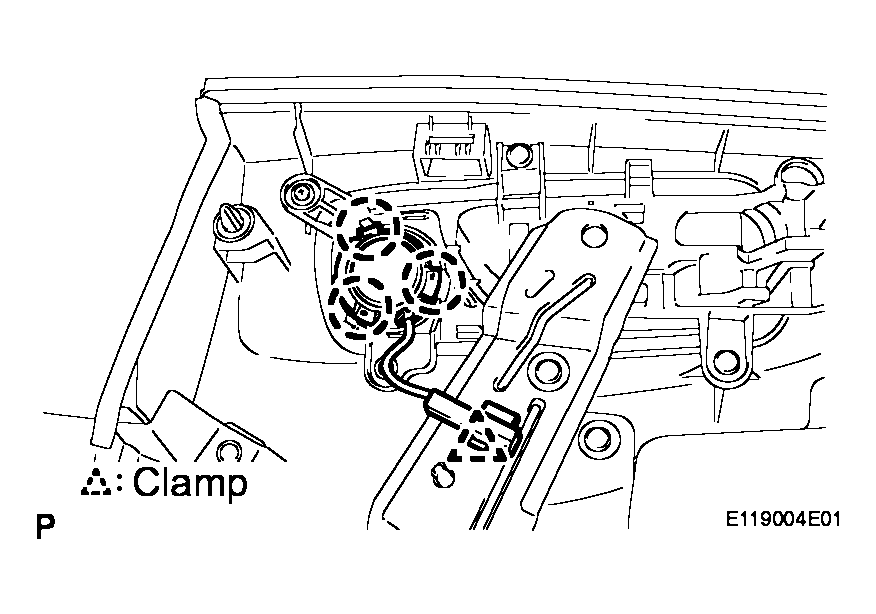

      Fig 2: Identifying Rear No. 2 Speaker Assembly And Disengaging Claws
      G04050230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not touch the cone part of the speaker.
  7. REMOVE REAR NO. 3 SPEAKER ASSEMBLY (w/o Front Center Speaker)
    1. Disconnect the connector.
    2. Remove the 2 bolts and the rear No. 3 speaker assembly.
      NOTE: Do not touch the cone part of the speaker.

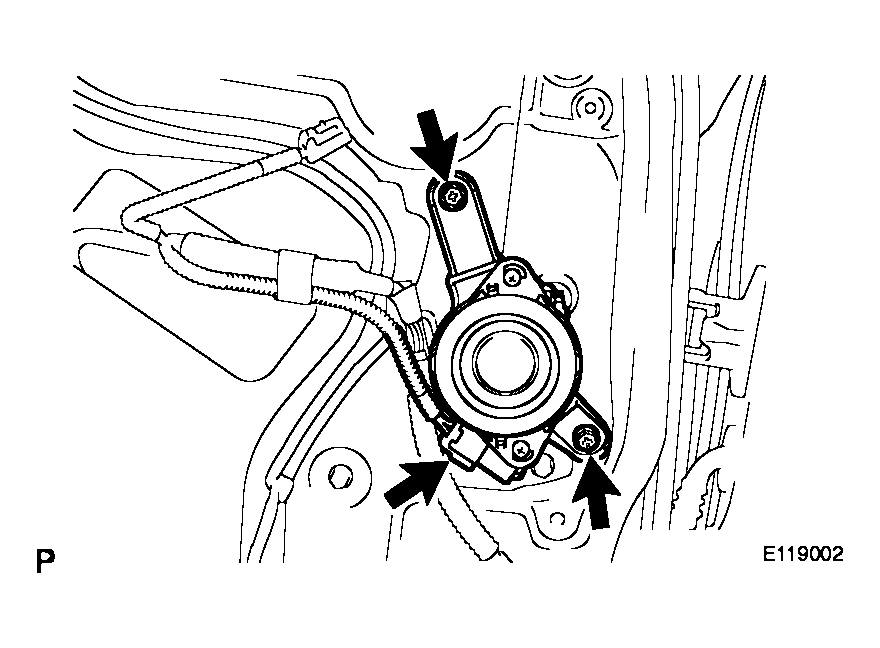

    Fig 3: Identifying Bolts And Rear No. 3 Speaker Assembly
    G04050231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
