Rear Side Speaker: Installation

INSTALL REAR SPEAKER ASSEMBLY

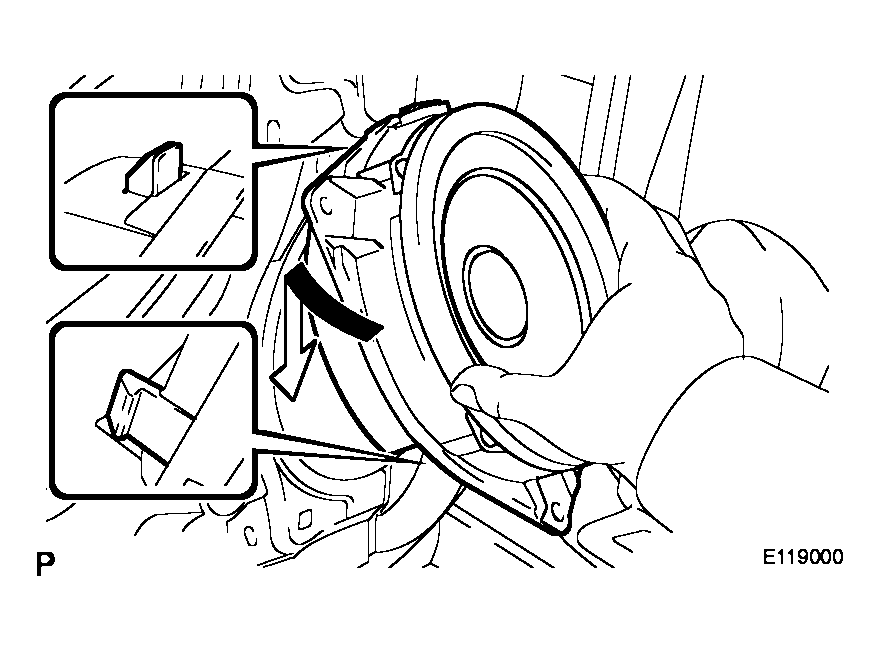

1. Engage the 2 claws as shown in the illustration to temporarily install the rear speaker assembly.

  Fig 1: Identifying Rear Speaker Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

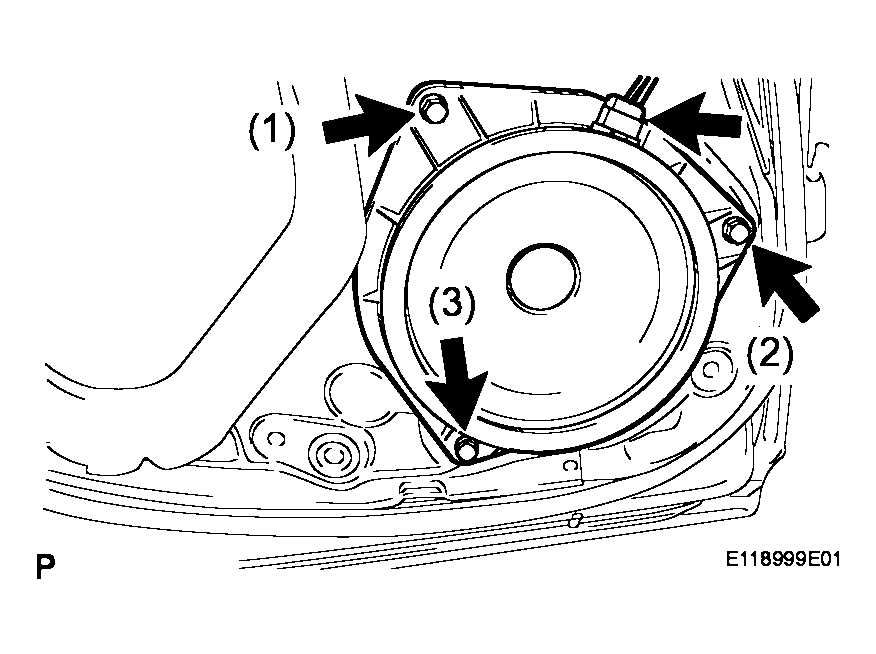

2. Install the rear speaker assembly with the 3 bolts.
  HINT:

  Install the bolts in the order shown in the illustration.
3. Connect the connector.
Fig 2: Identifying Rear Speaker Assembly With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 2 SPEAKER ASSEMBLY

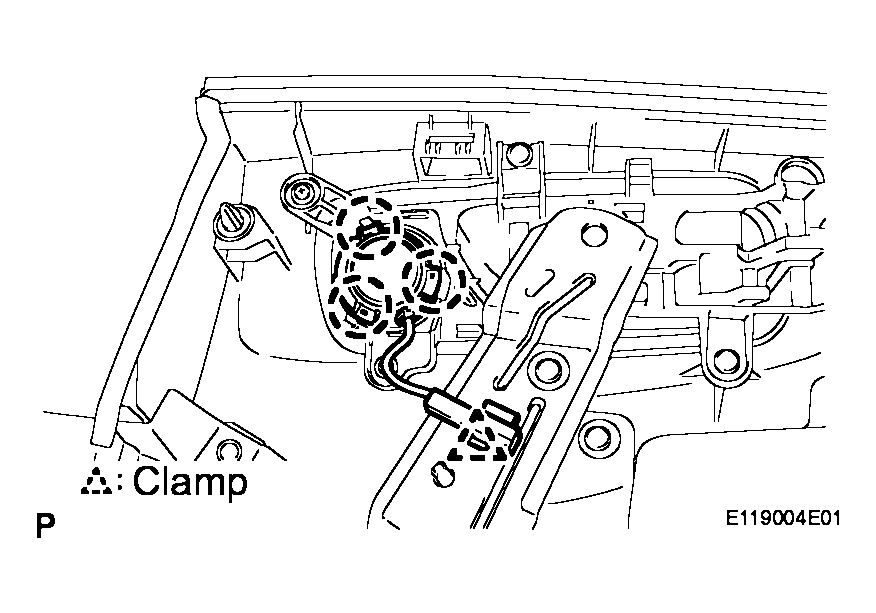

1. Engage the 3 claws and install the rear No. 2 speaker assembly.
2. Engage the speaker connector clamp.
Fig 3: Identifying Speaker Connector Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 3 SPEAKER ASSEMBLY (w/o Front Center Speaker)

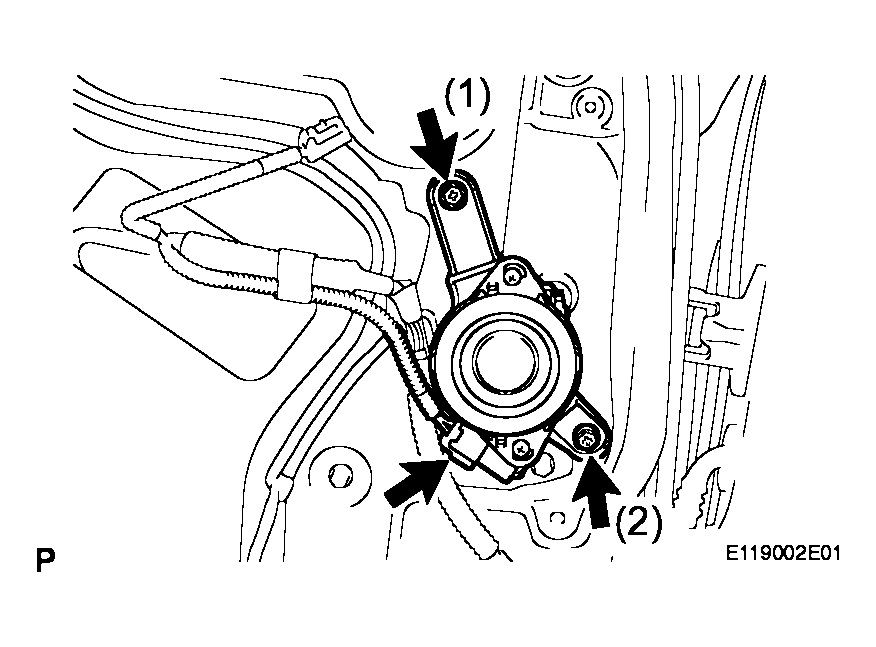

1. Install the rear No. 3 speaker assembly with the 2 bolts.
  HINT:

  Install the bolts in the order shown in the illustration.
2. Connect the connector.
Fig 4: Identifying Rear No. 3 Speaker Assembly With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR INNER GLASS WEATHERSTRIP (See REASSEMBLY )
INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY (See REASSEMBLY )
INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (See REASSEMBLY )
INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG (See REASSEMBLY )
