Seat Heater (w/Climate Control Seat)

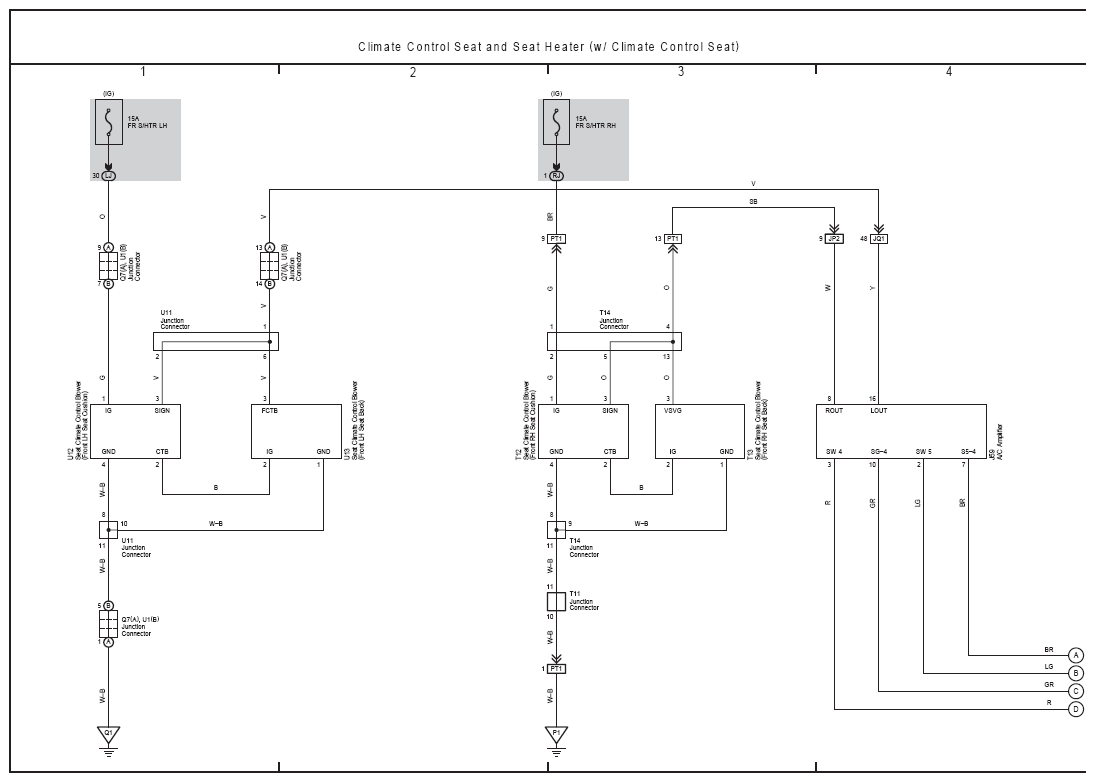

Fig 1: Climate Control Seat And Seat Heater (W/ Climate Control Seat) Wiring Diagram (1 Of 2)
G08927979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

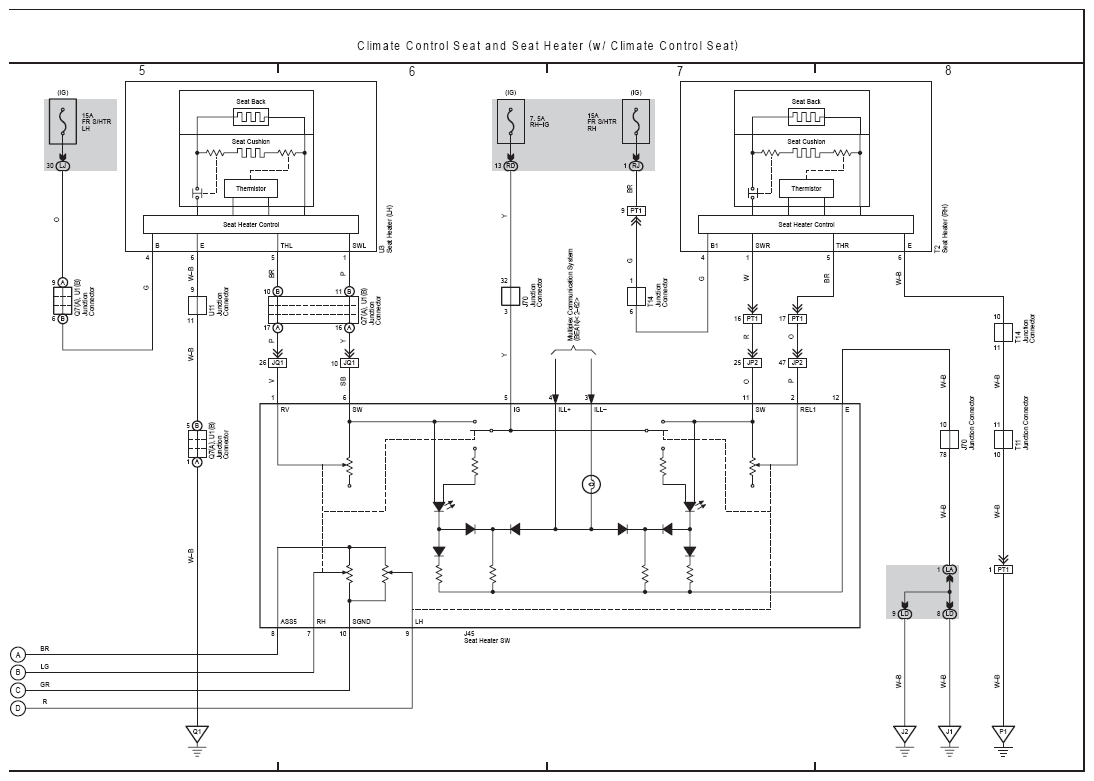

Fig 2: Climate Control Seat And Seat Heater (W/ Climate Control Seat) Wiring Diagram (2 Of 2)
G08927980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
