Overall Electrical Wiring Diagram: SRS

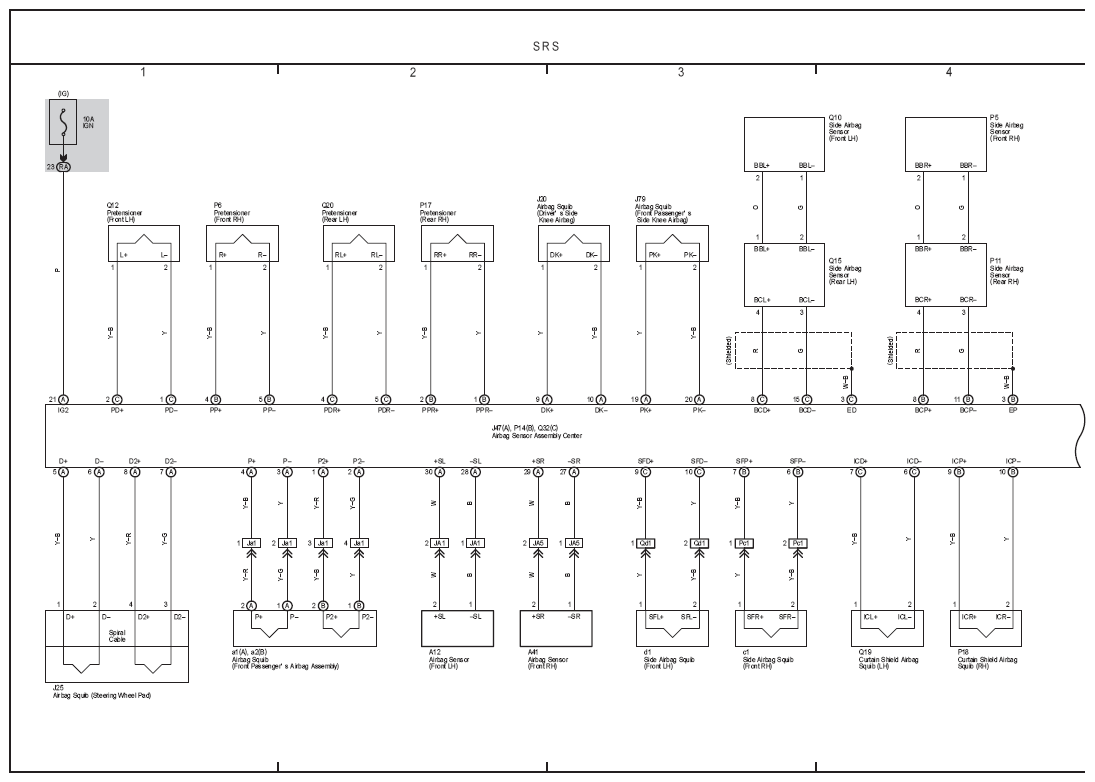

Fig 1: SRS Wiring Diagram (1 Of 2)
G08927957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

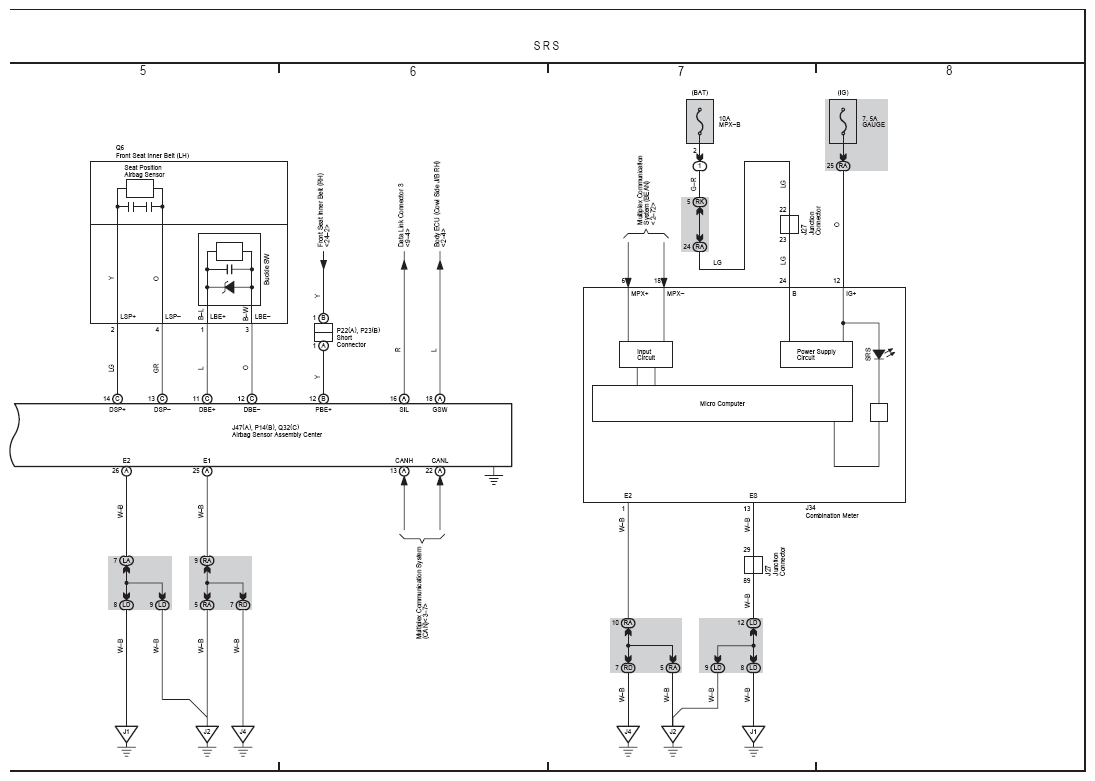

Fig 2: SRS Wiring Diagram (2 Of 2)
G08927958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
