Remote Control Mirror (w/o Seat Position Memory)

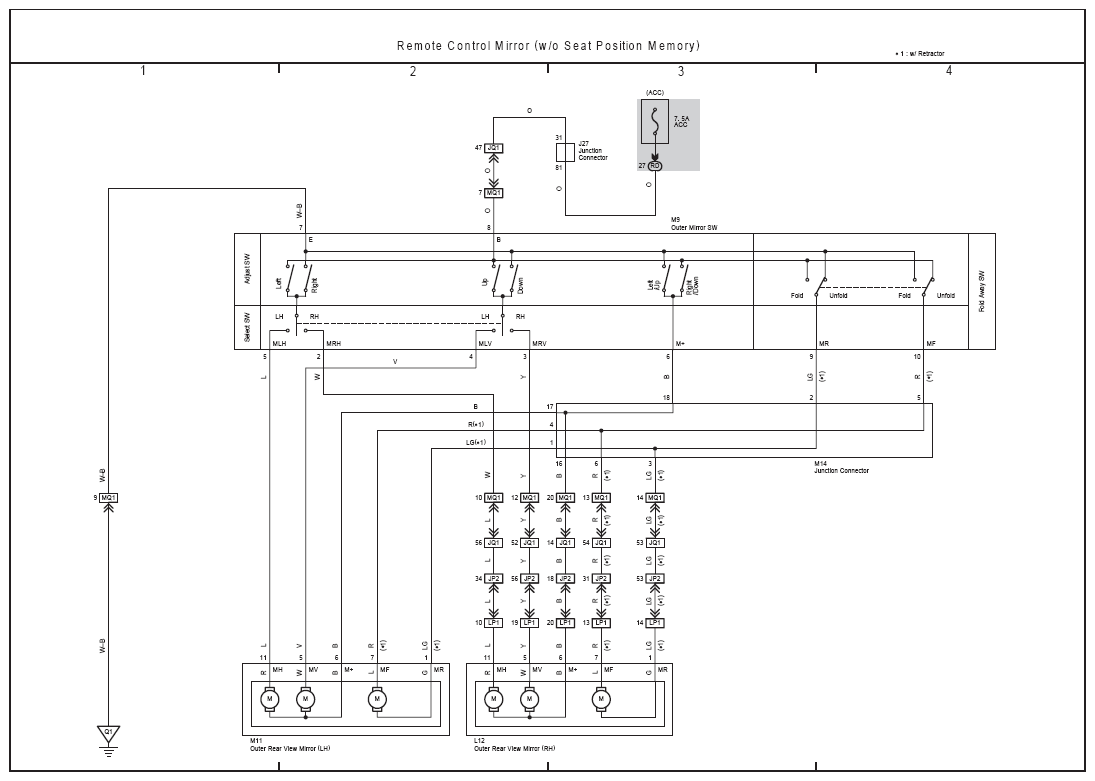

Fig 1: Remote Control Mirror (w/o Seat Position Memory) Wiring Diagram

G08927975

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
