Power Seat (Front Passenger's Seat w/o Seat Position Memory)

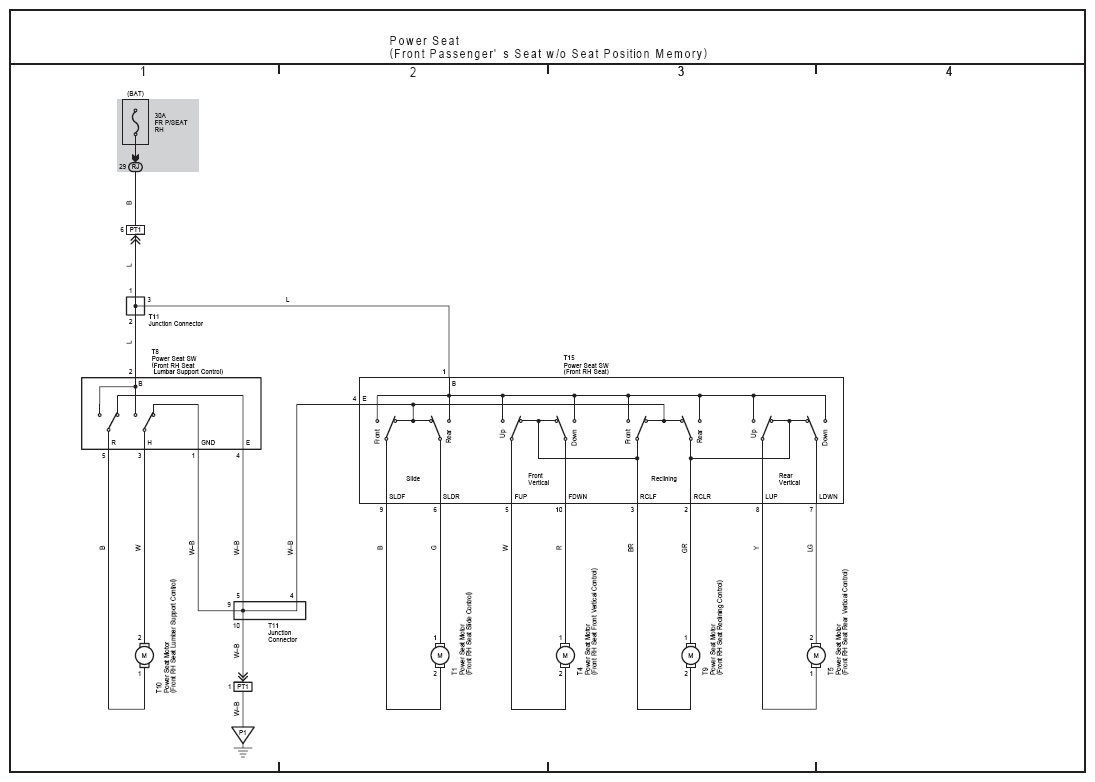

Fig 1: Power Seat (Front Passenger's Seat W/O Seat Position Memory) Wiring Diagram

G08927978

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
