Power Seat (Driver's Seat w/Seat Position Memory) And Power Seat (Front Passenger's Seat w/Seat Position Memory)

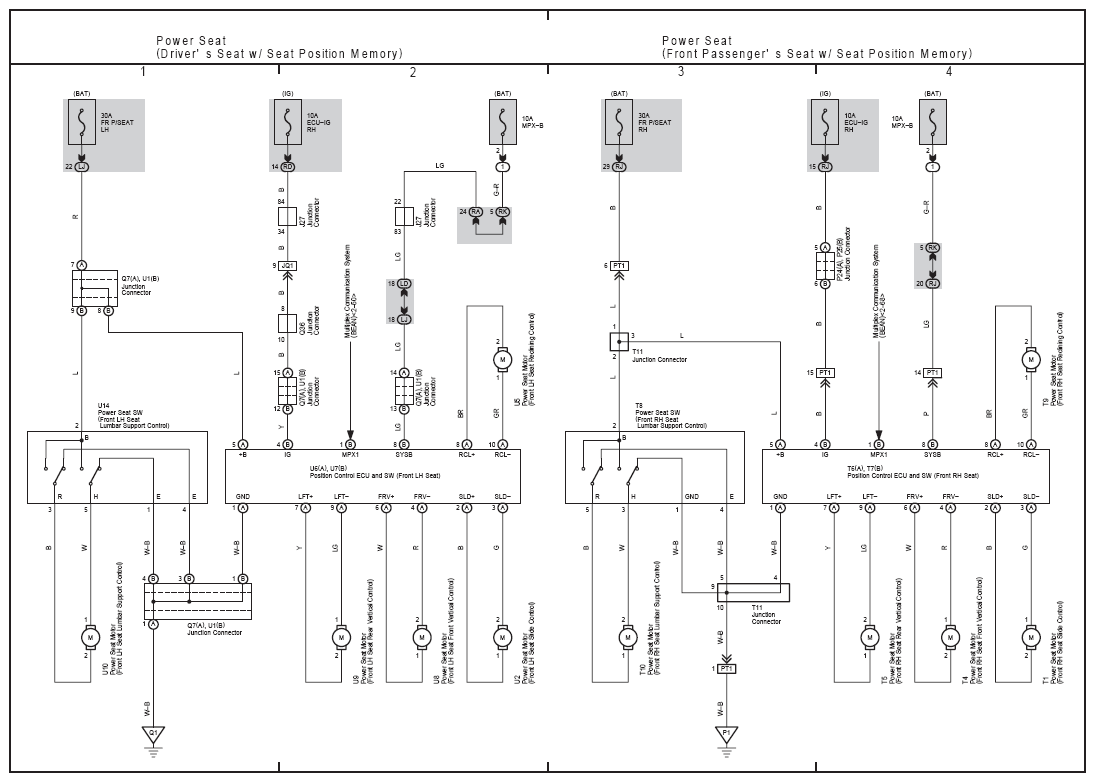

Fig 1: Power Seat (Driver's Seat W/ Seat Position Memory And Front Passenger's Seat W/ Seat Position Memory) Wiring Diagram
G08927976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
