Multiplex Communication System (CAN)

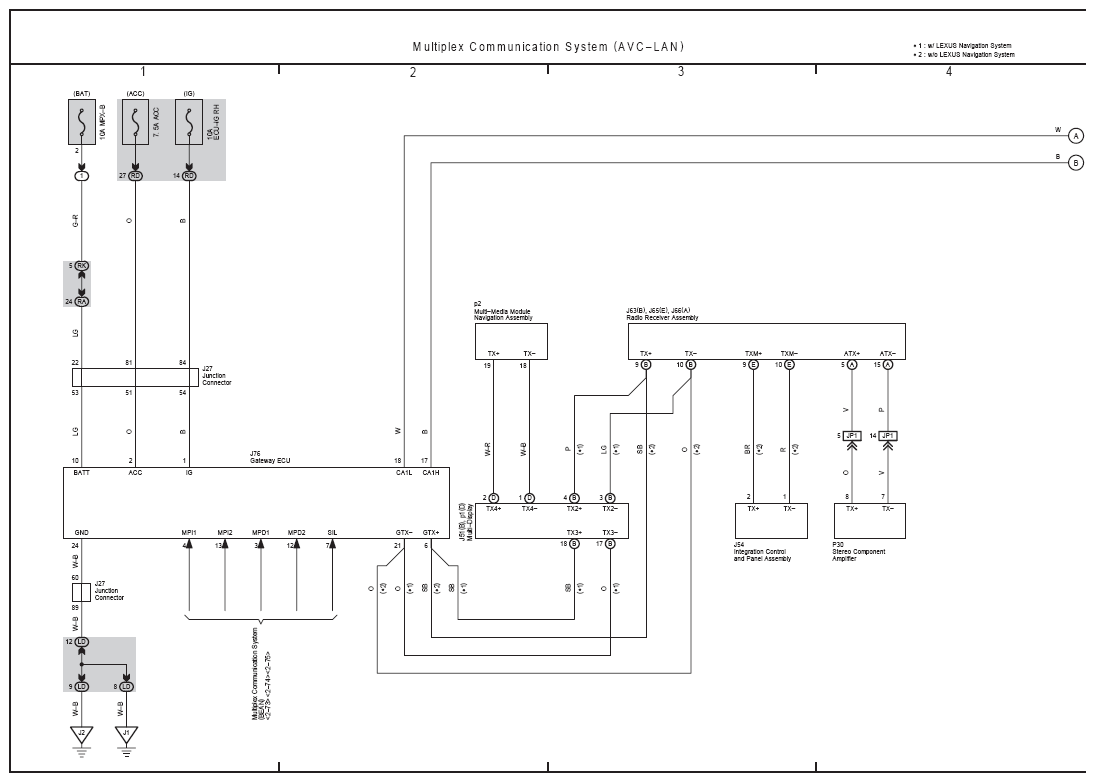

Fig 1: Multiplex Communication System (AVC-LAN And CAN) Wiring Diagram (1 Of 2)
G08927932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

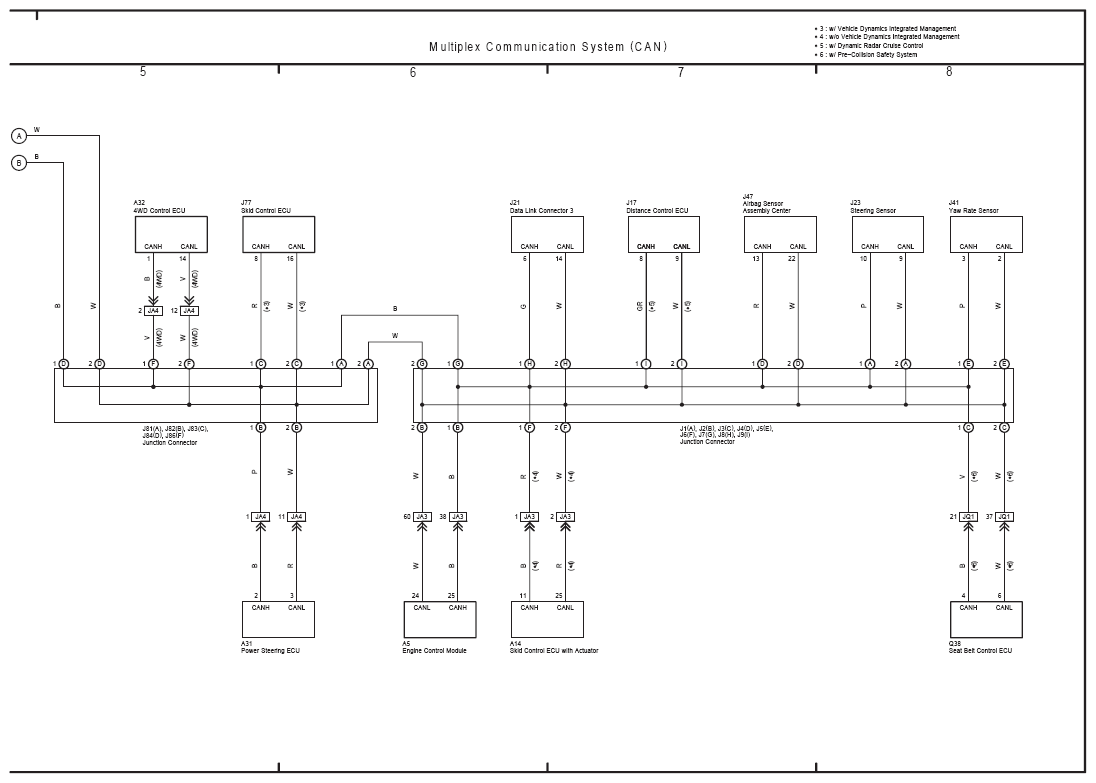

Fig 2: Multiplex Communication System (AVC-LAN And CAN) Wiring Diagram (2 Of 2)
G08927933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
