How To Read This Section

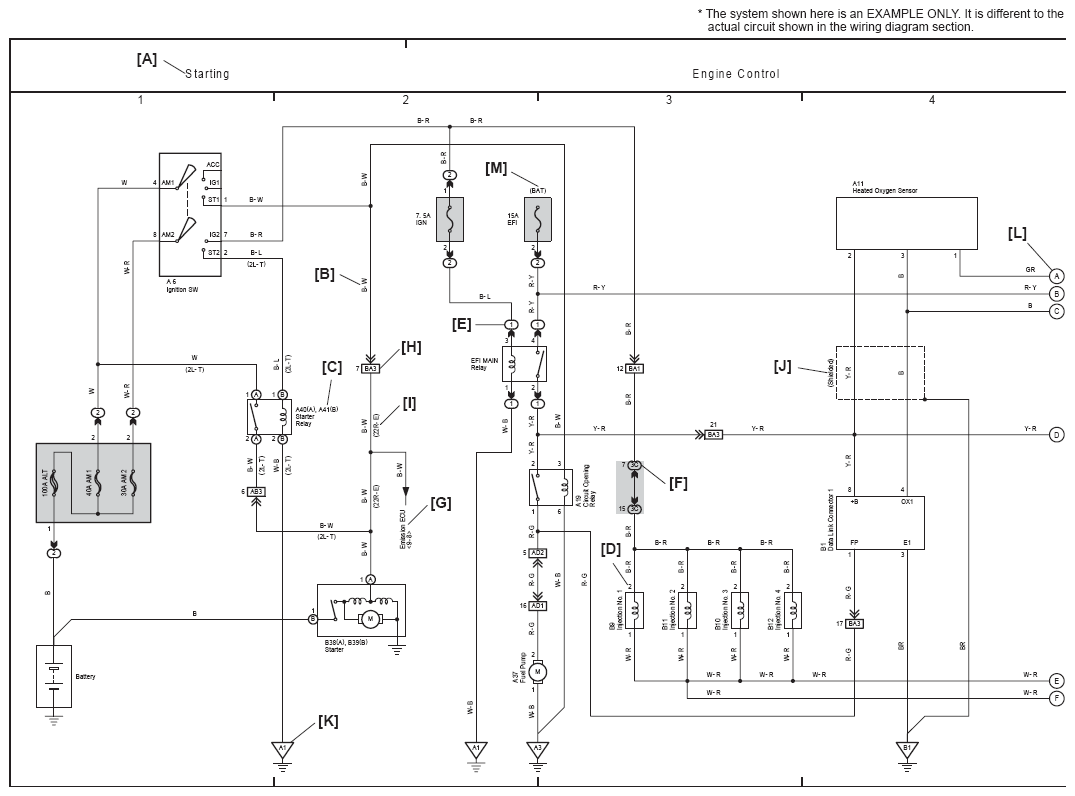

Fig 1: Electrical Wiring Diagram Example
G08927901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

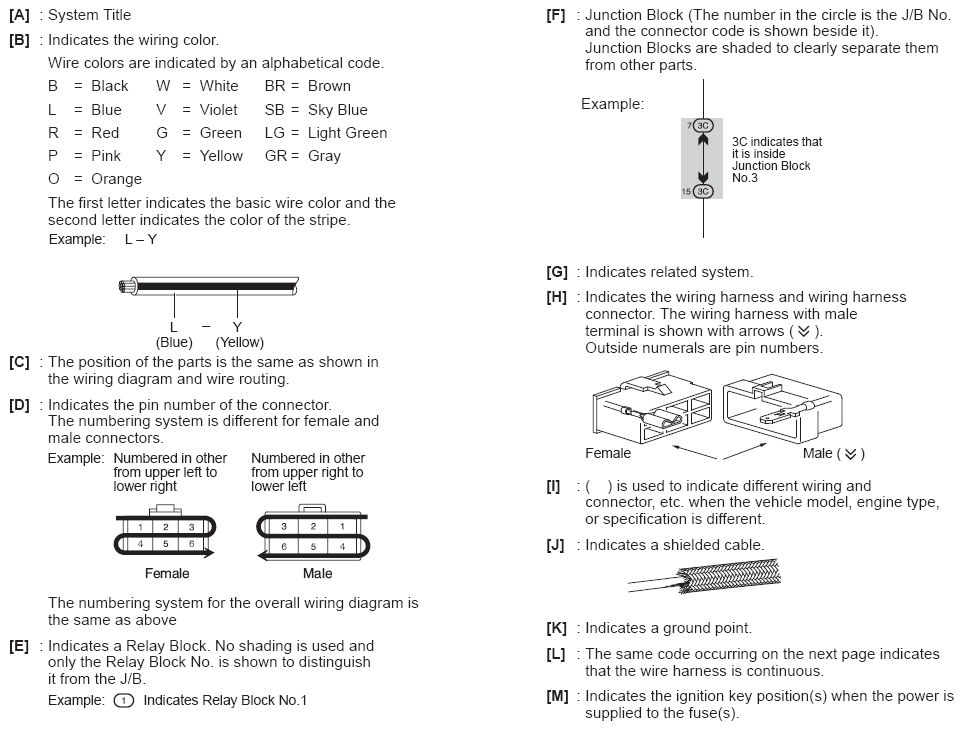

Fig 2: Electrical Wiring Diagram Example Legends
G08927902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
