Home >> Lexus >> 2006 >> IS 250 RWD, Automatic >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Garage Door Opener And Automatic Glare-Resistant EC Mirror And Compass

Garage Door Opener And Automatic Glare-Resistant EC Mirror And Compass

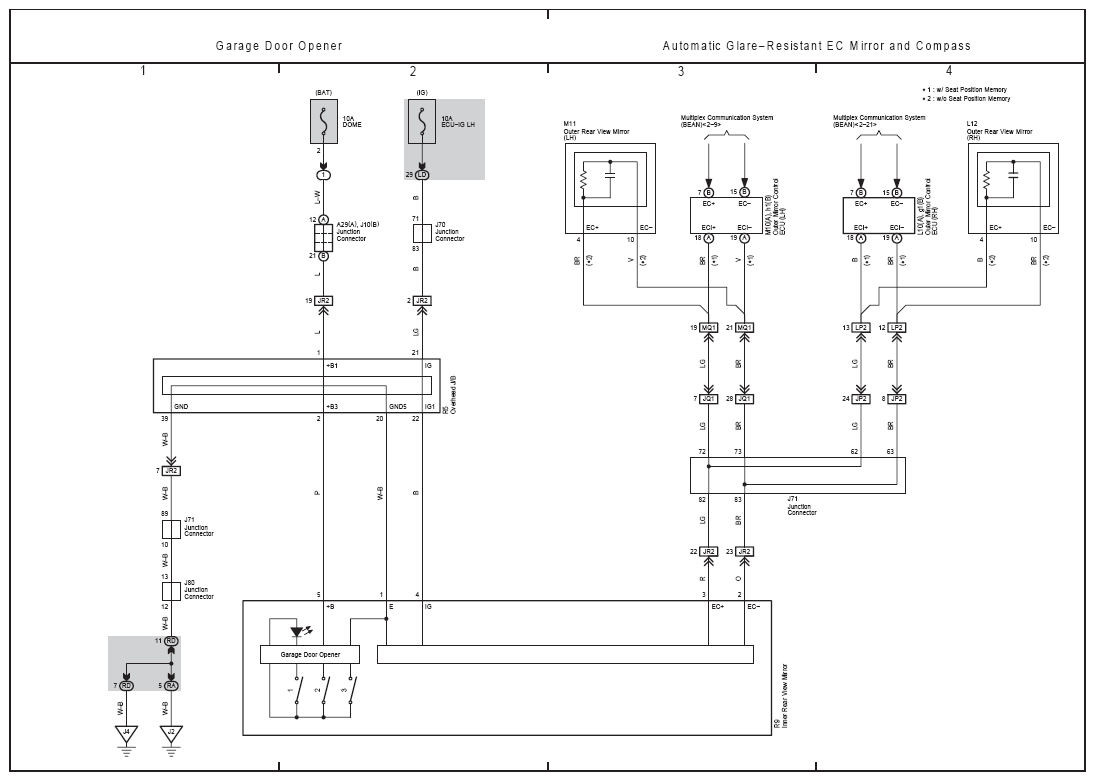

Fig 1: Garage Door Opener And Automatic Glare-Resistant EC Mirror And Compass Wiring Diagram
G08927971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
