Engine/Cruise Control (4GR-FSE), Dynamic Radar Cruise Control (4GR-FSE)

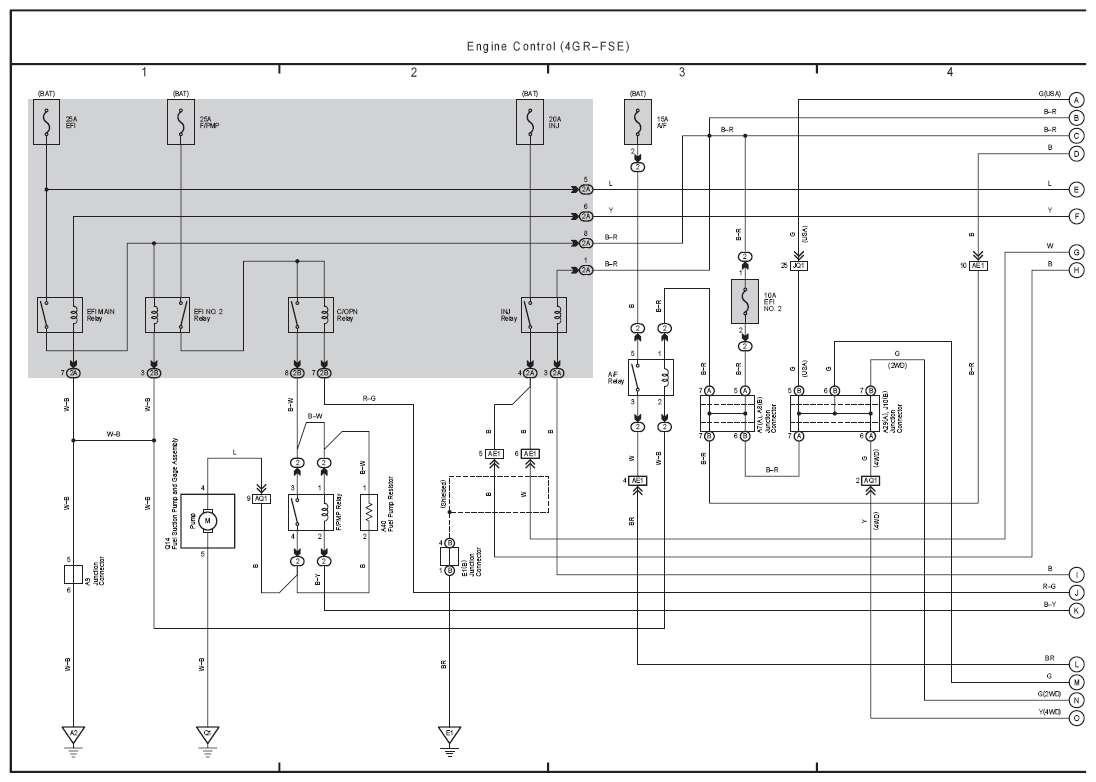

Fig 1: Engine Control (4GR-FSE) Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

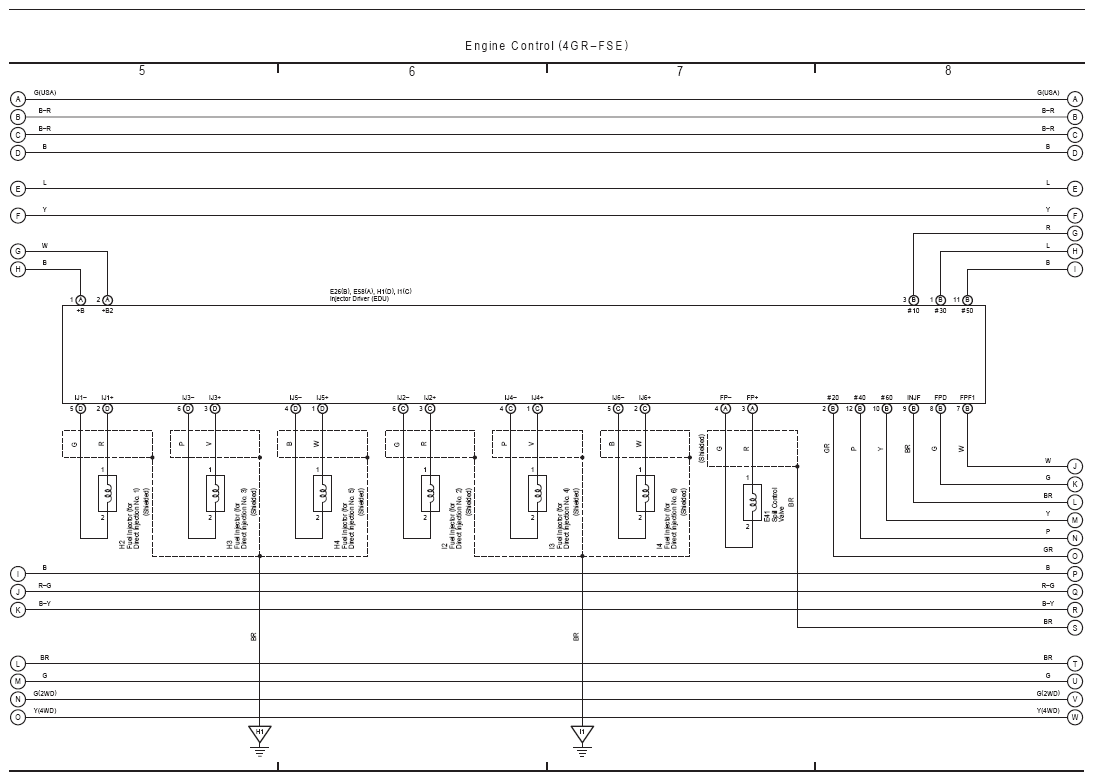

Fig 2: Engine Control (4GR-FSE) Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

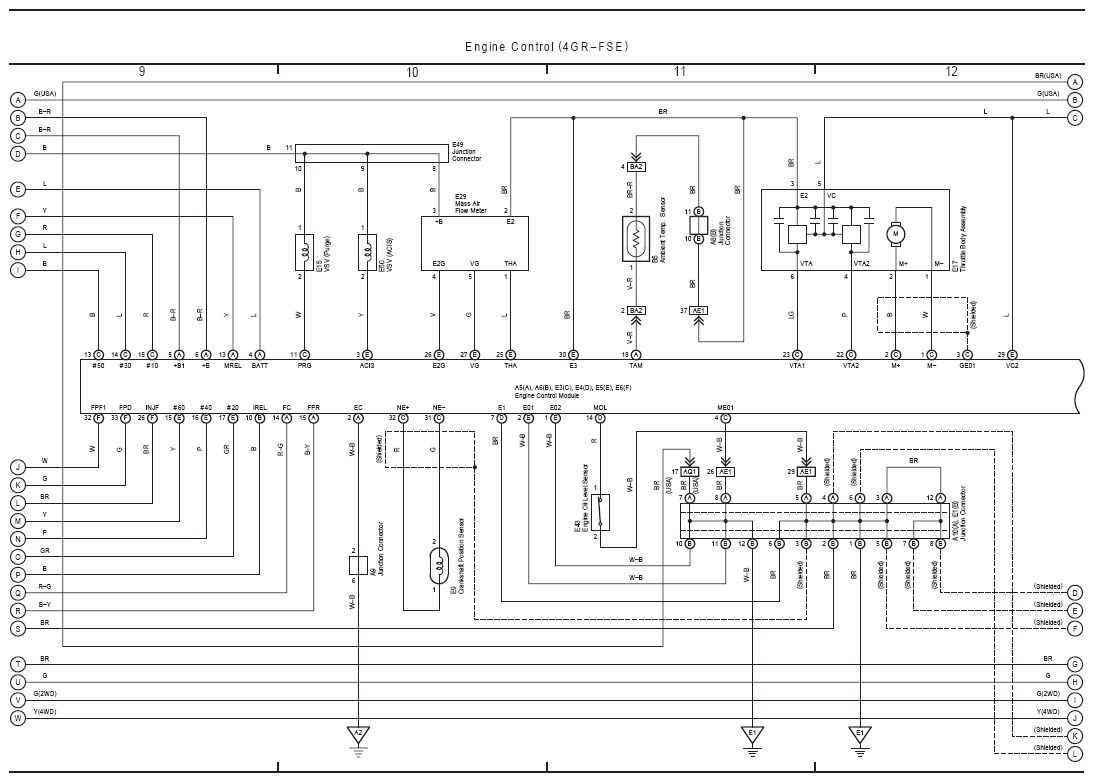

Fig 3: Engine Control (4GR-FSE) Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

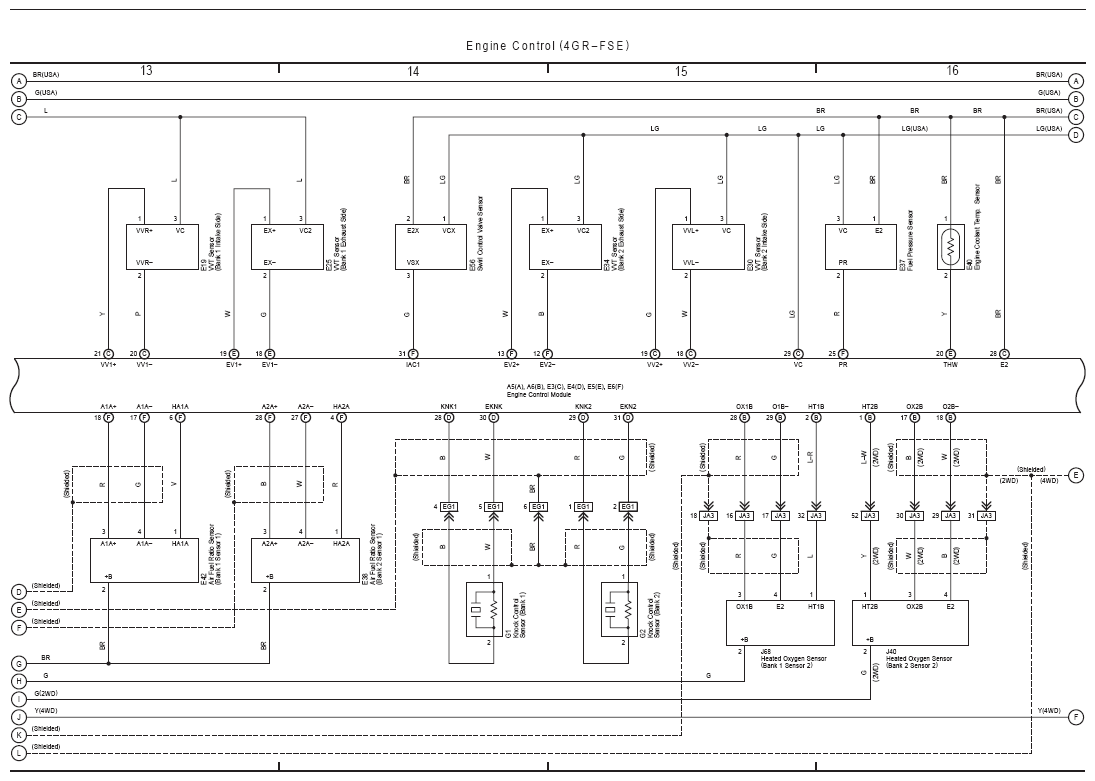

Fig 4: Engine Control (4GR-FSE) Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

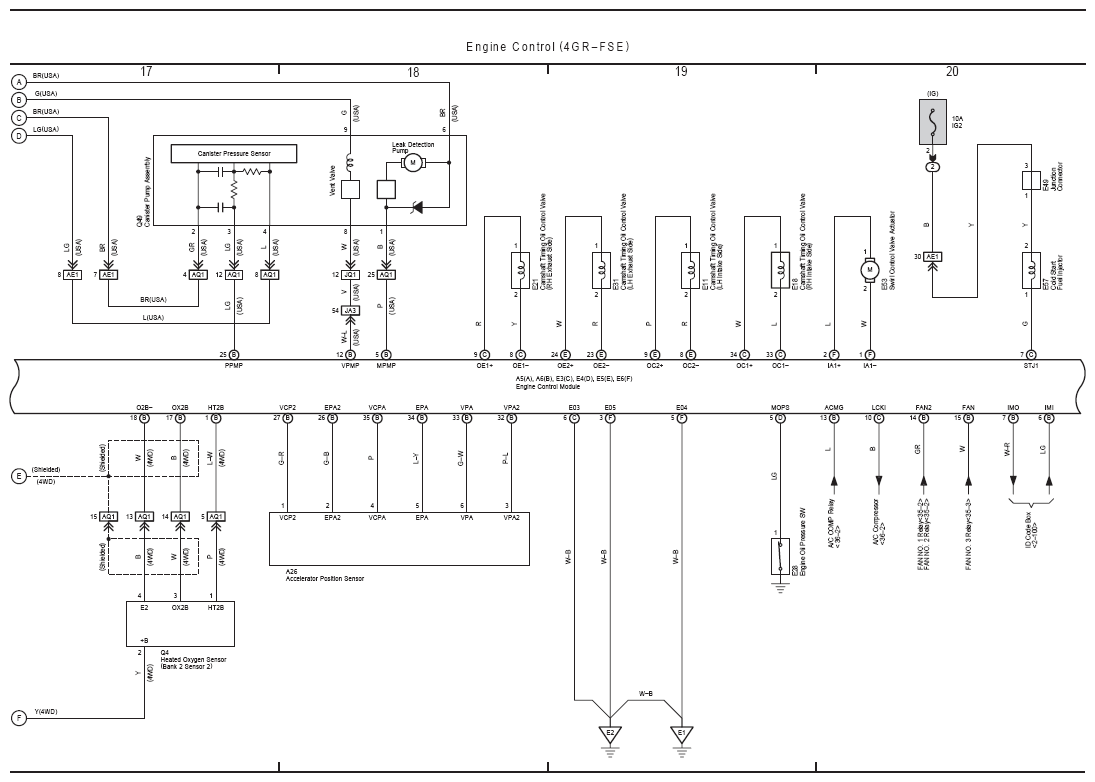

Fig 5: Engine Control (4GR-FSE) Wiring Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

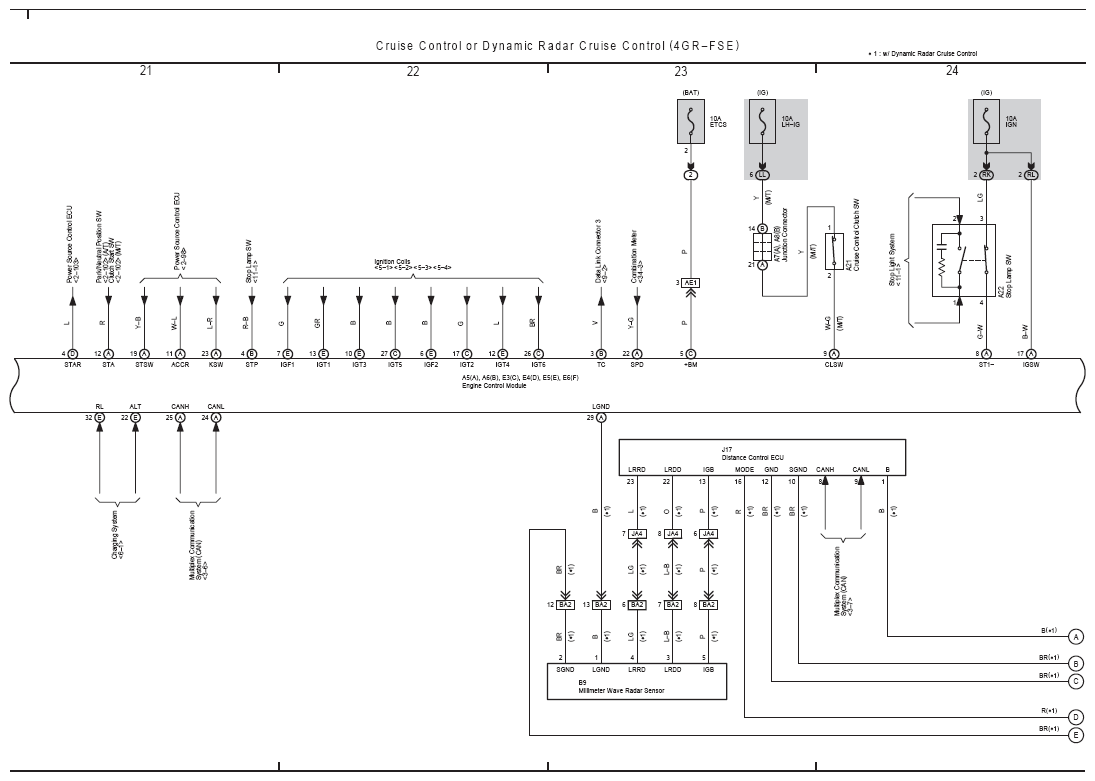

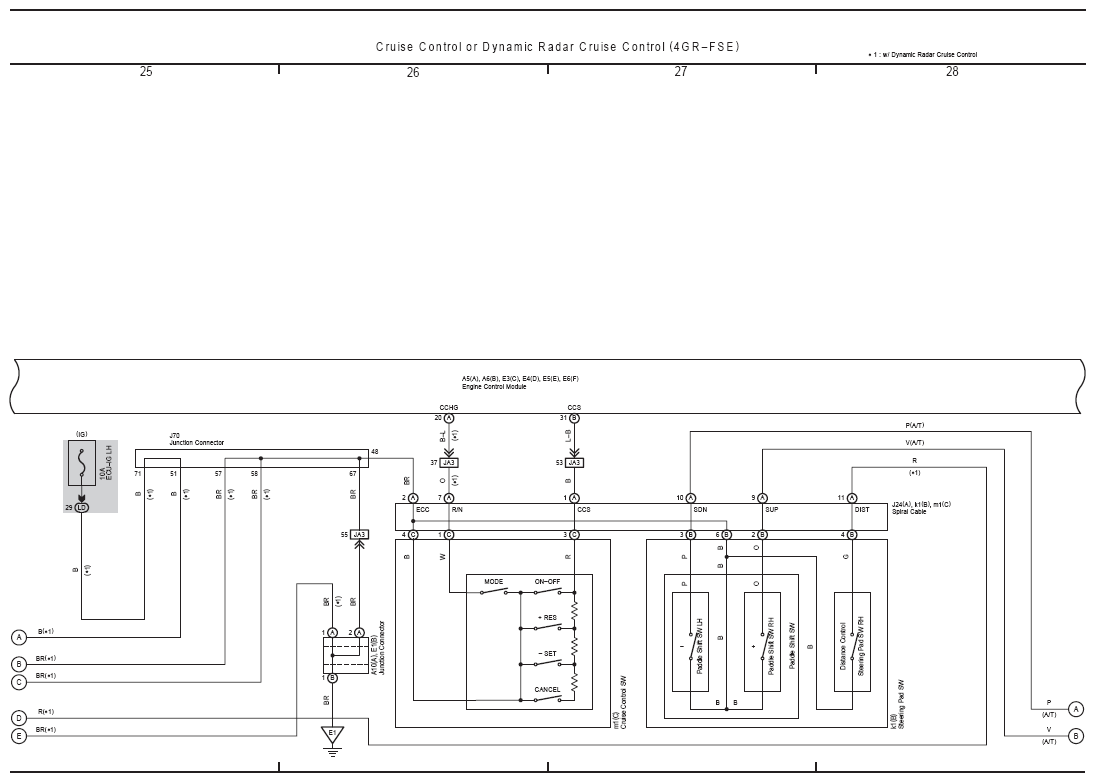

Fig 6: Cruise Control Or Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (1 Of 2)

Fig 7: Cruise Control Or Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (2 Of 2)

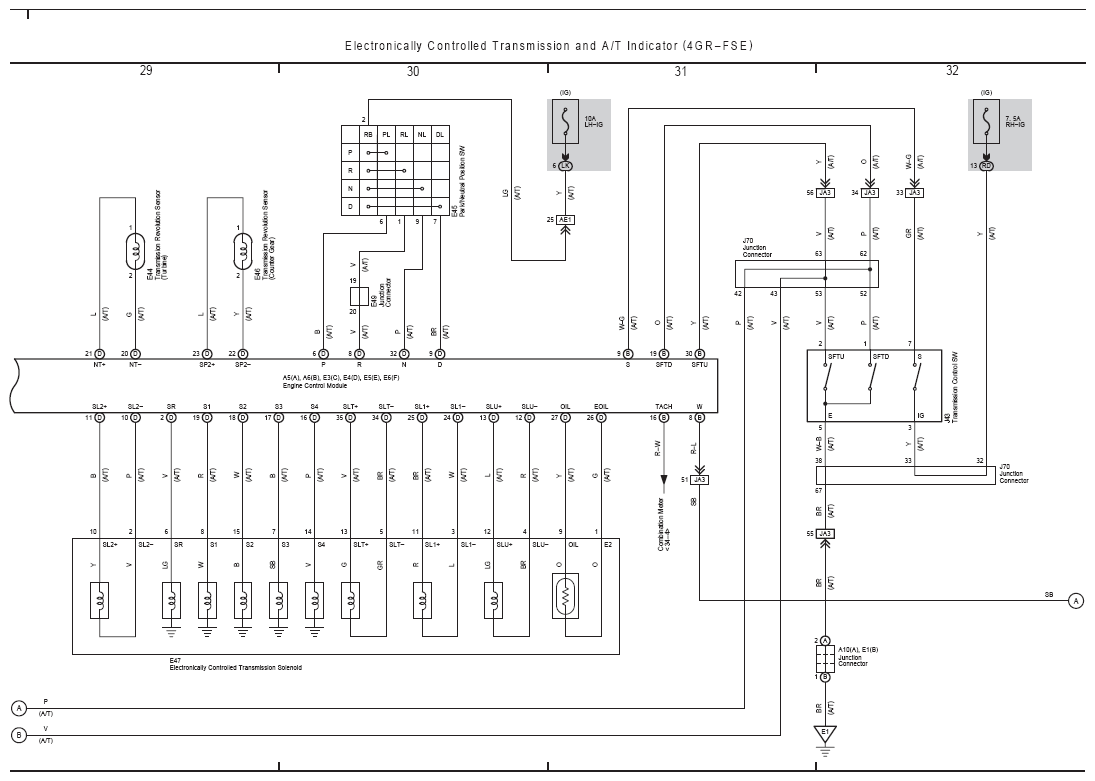

Fig 8: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) Wiring Diagram (1 Of 2)

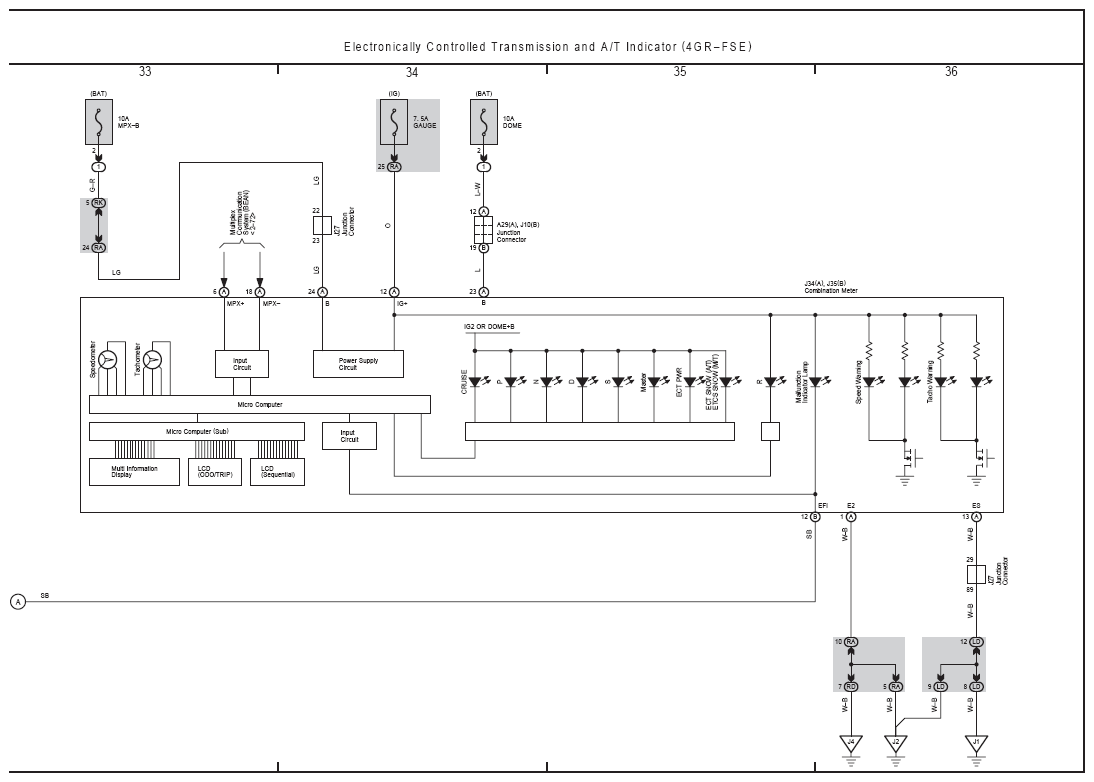

Fig 9: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) Wiring Diagram (2 Of 2)
