Electric Tension Reducer, Cigarette Lighter, Power Outlet

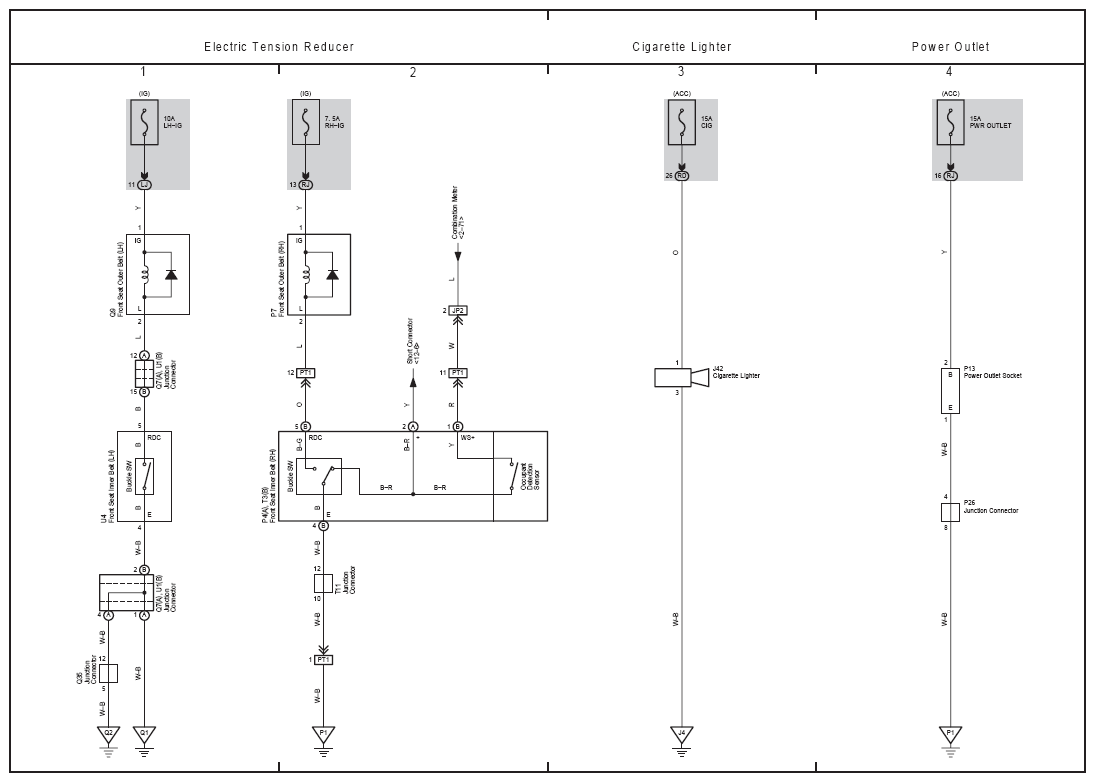

Fig 1: Electric Tension Reducer, Cigarette Lighter Wiring Diagram

G08927974

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
