Audio System, Lexus Navigation System And Lexus Parking Assist (Rear View Monitor)

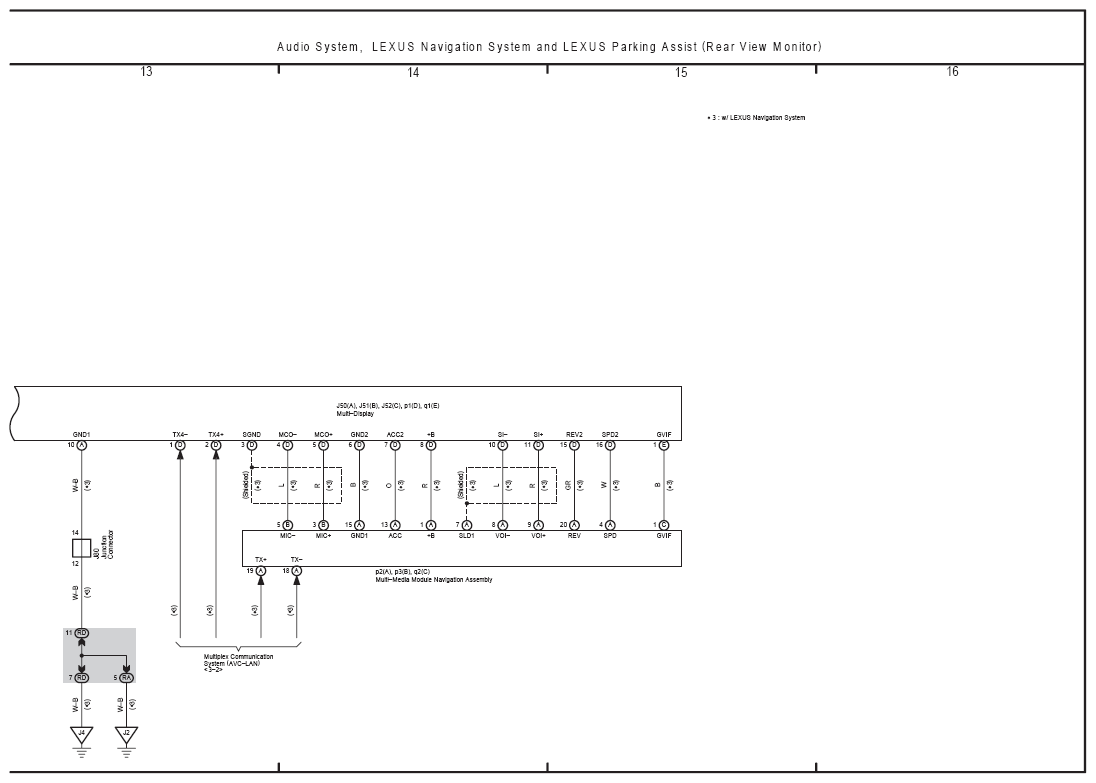

Fig 1: Audio System, Lexus Navigation System And Lexus Parking Assist (Rear View Monitor) Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

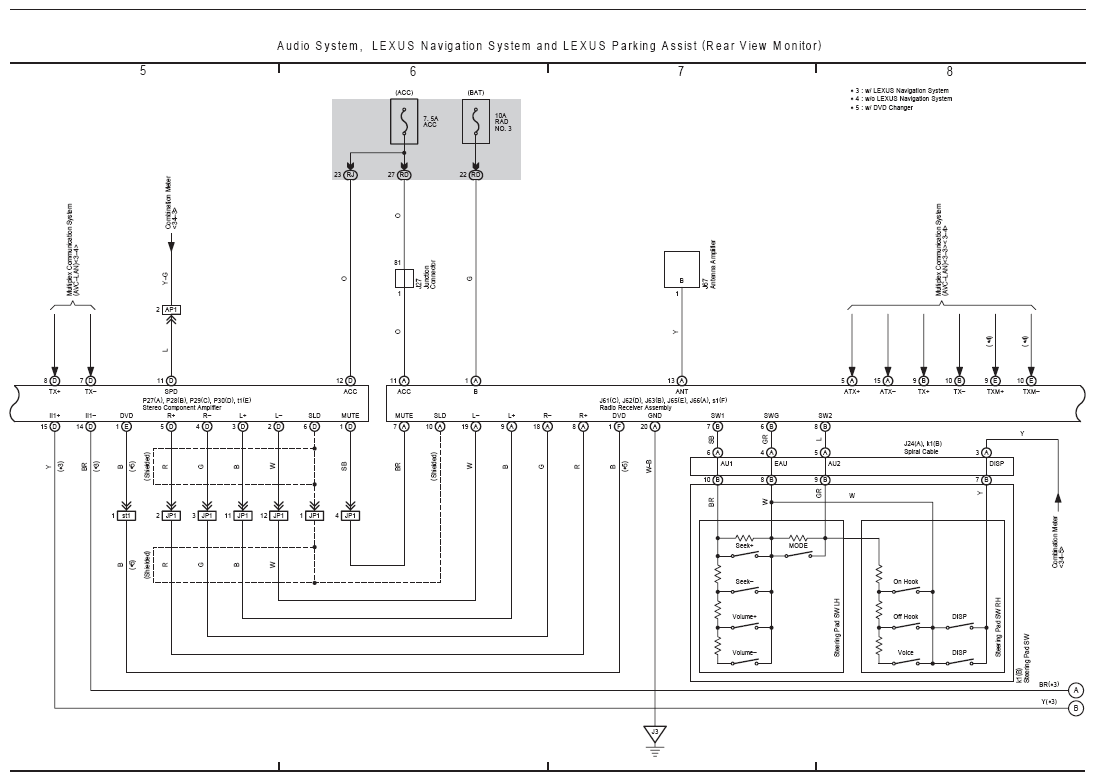

Fig 2: Audio System, Lexus Navigation System And Lexus Parking Assist (Rear View Monitor) Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

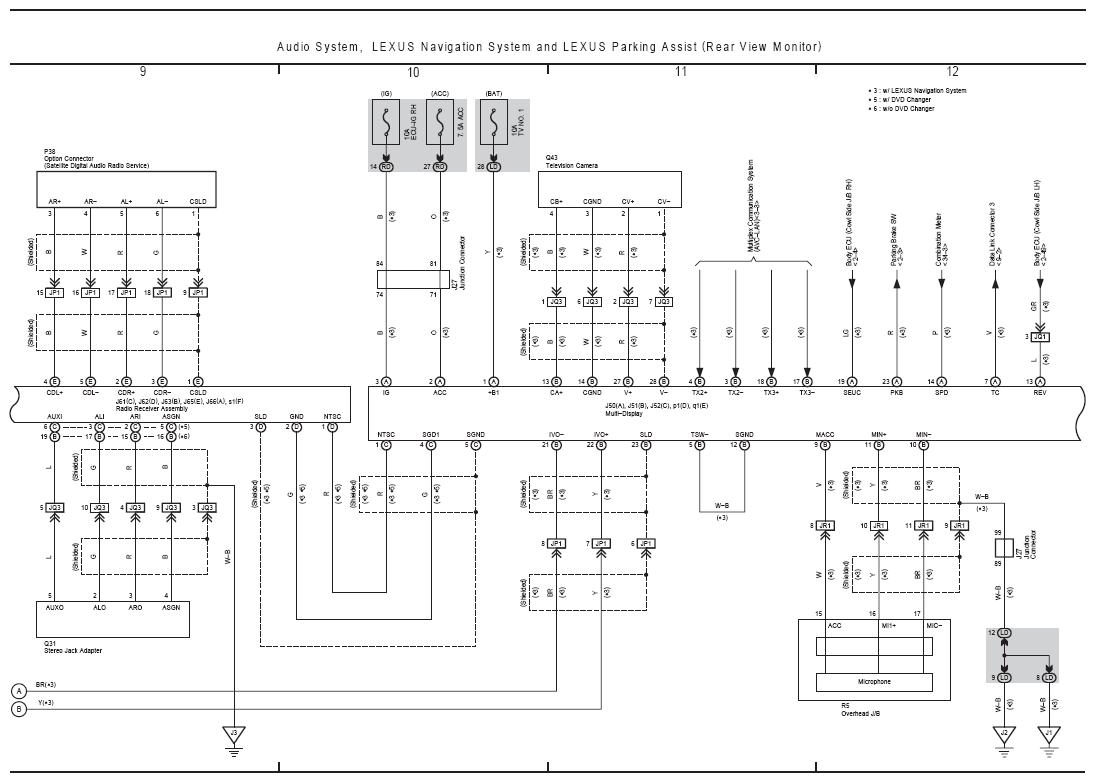

Fig 3: Audio System, Lexus Navigation System And Lexus Parking Assist (Rear View Monitor) Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

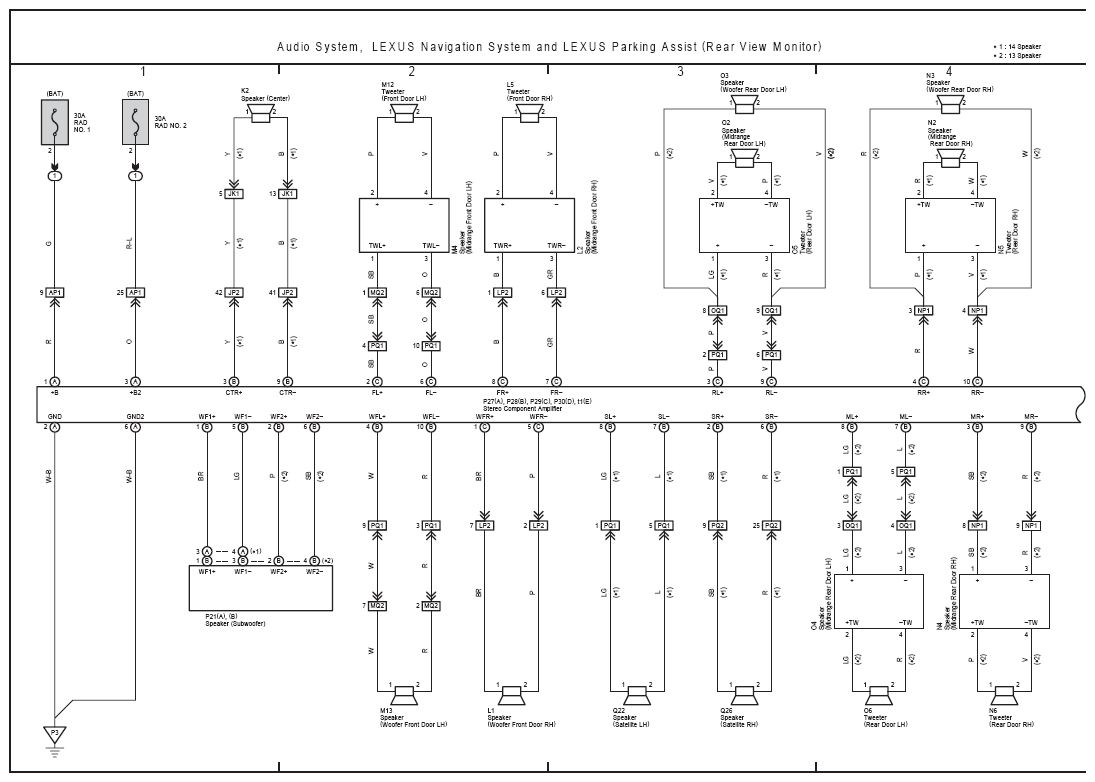

Fig 4: Audio System, Lexus Navigation System And Lexus Parking Assist (Rear View Monitor) Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
