ABS, TRAC And VSC

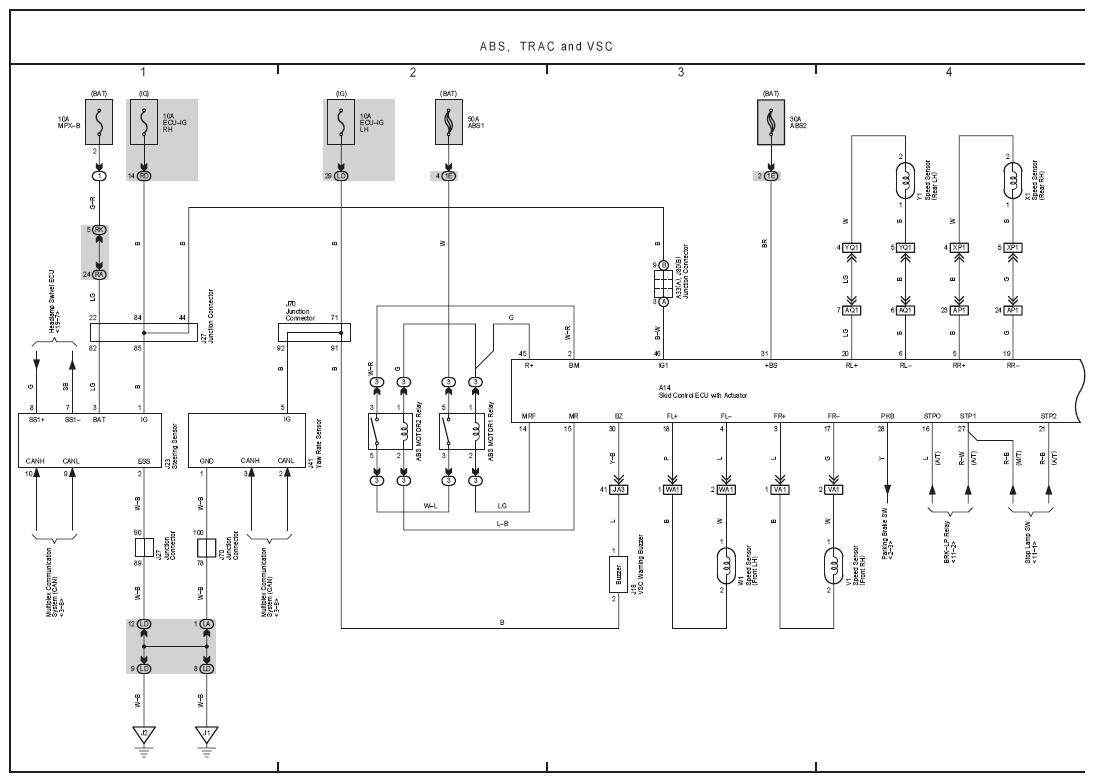

Fig 1: ABS, TRAC And VSC Wiring Diagram (1 Of 2)
G08927963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

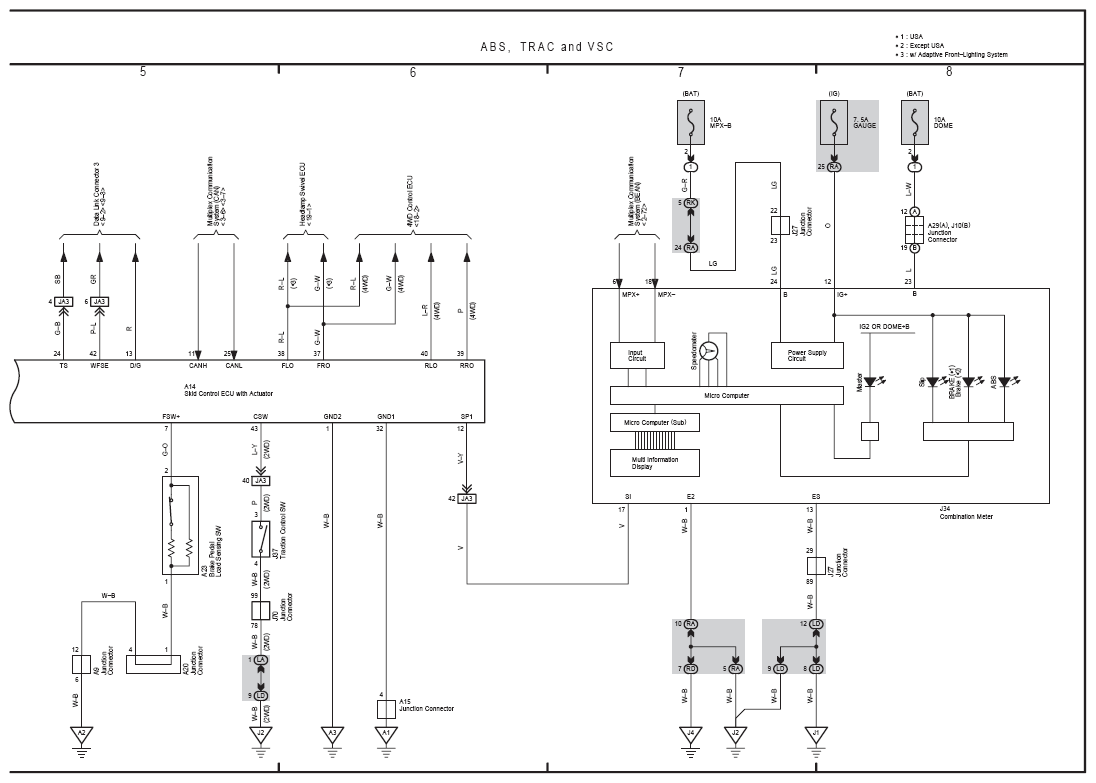

Fig 2: ABS, TRAC And VSC Wiring Diagram (2 Of 2)
G08927964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
