Overall Electrical Wiring Diagram: 4WD

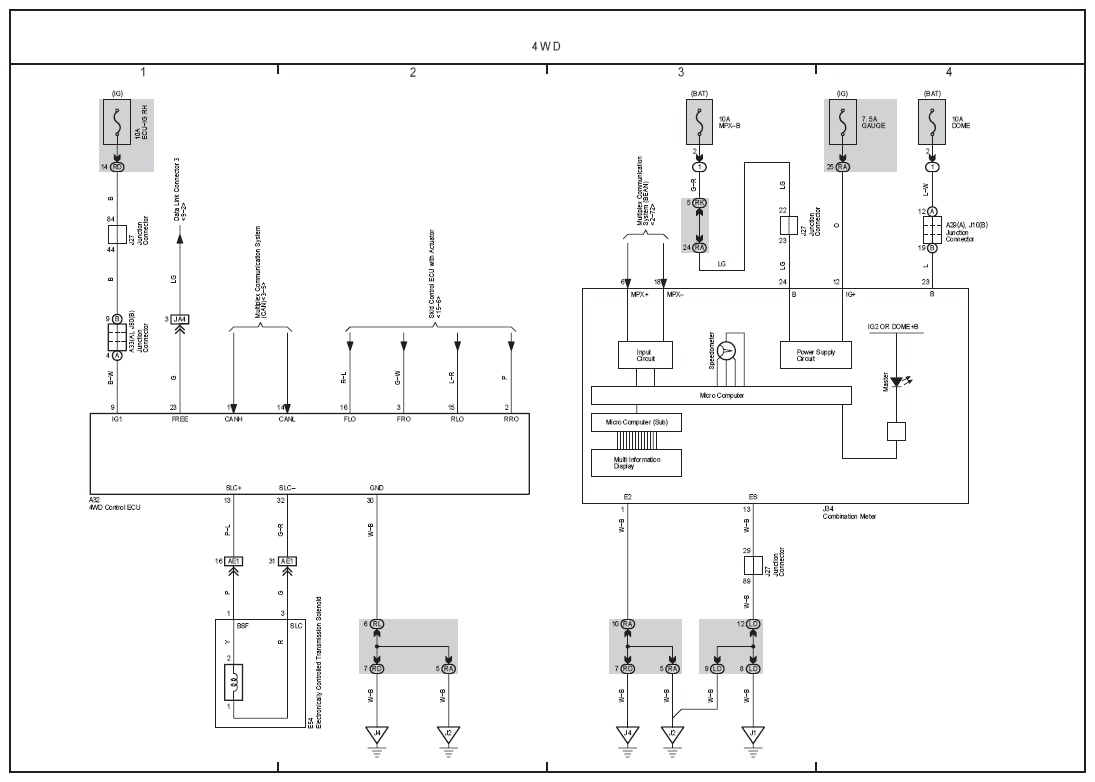

Fig 1: 4WD Wiring Diagram

G08927967

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
