Position of Parts in Engine Compartment: [4GR-FSE]

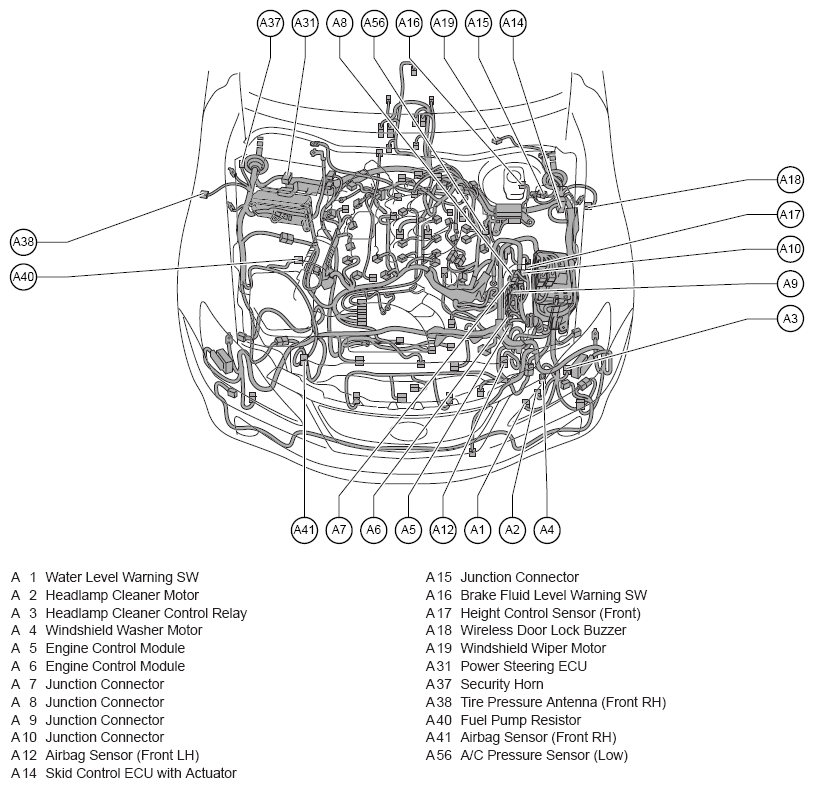

Fig 1: Engine Compartment Parts - 4GR-FSE (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

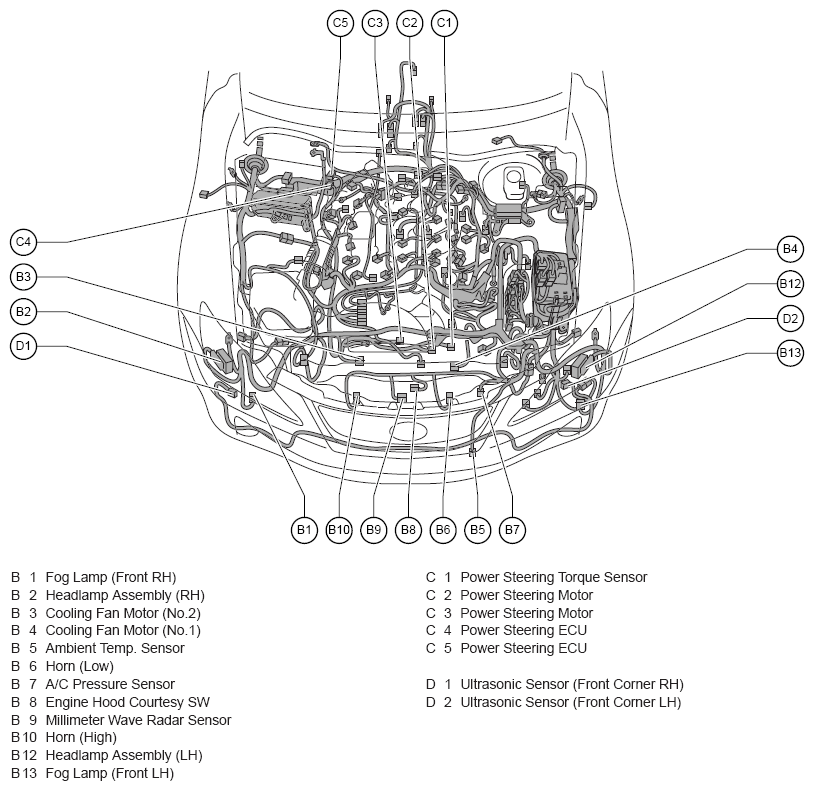

Fig 2: Engine Compartment Parts - 4GR-FSE (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

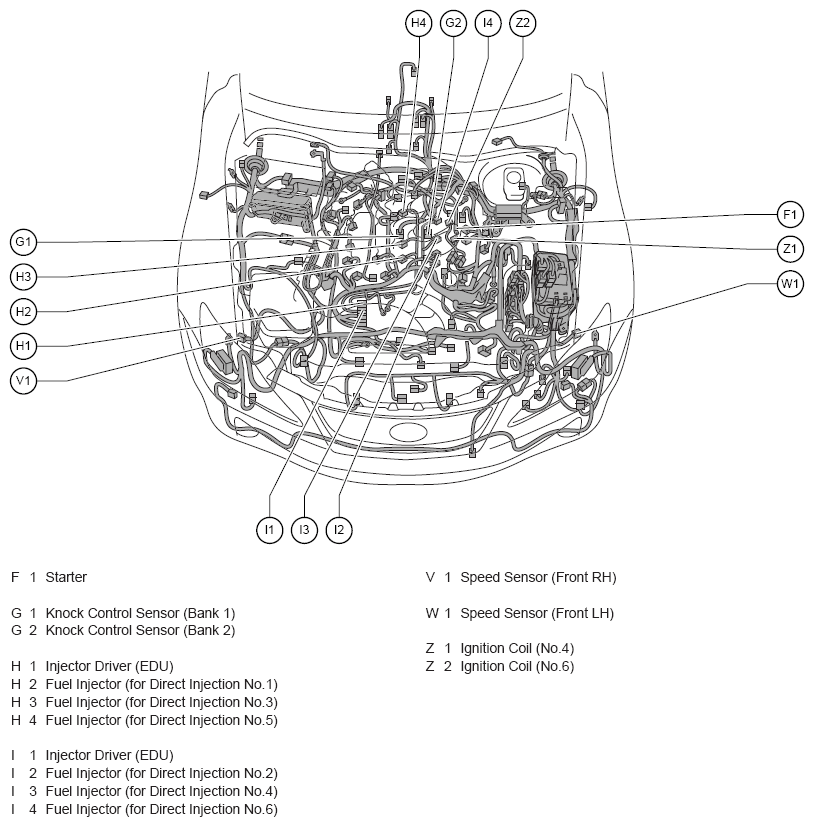

Fig 3: Engine Compartment Parts - 4GR-FSE (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

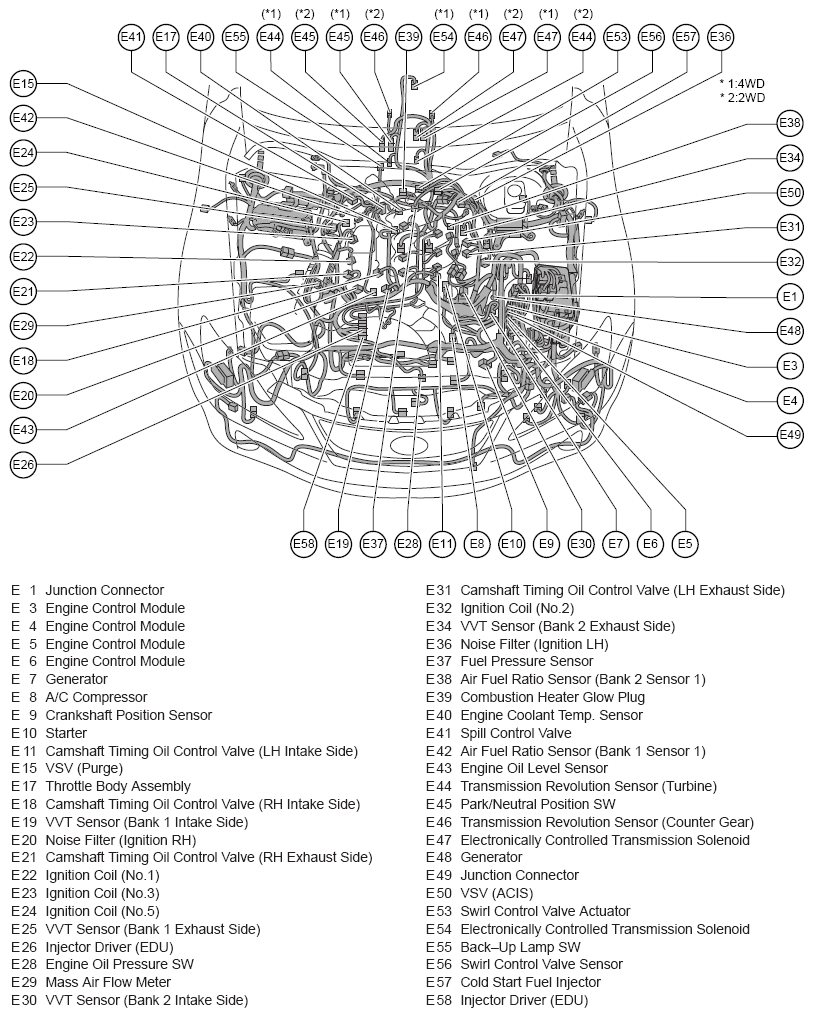

Fig 4: Engine Compartment Parts - 4GR-FSE (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
