: Location of Connector Joining Wire Harness and Wire Harness: [4GR-FSE]

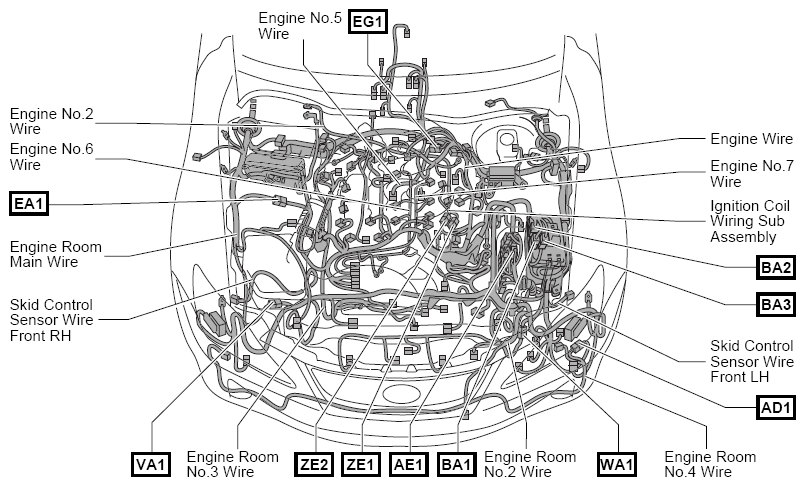

Fig 1: Locating Wiring Harnesses (4GR-FSE)

G08927056

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
