: Location of Connector Joining Wire Harness and Wire Harness; : Location of Ground Points

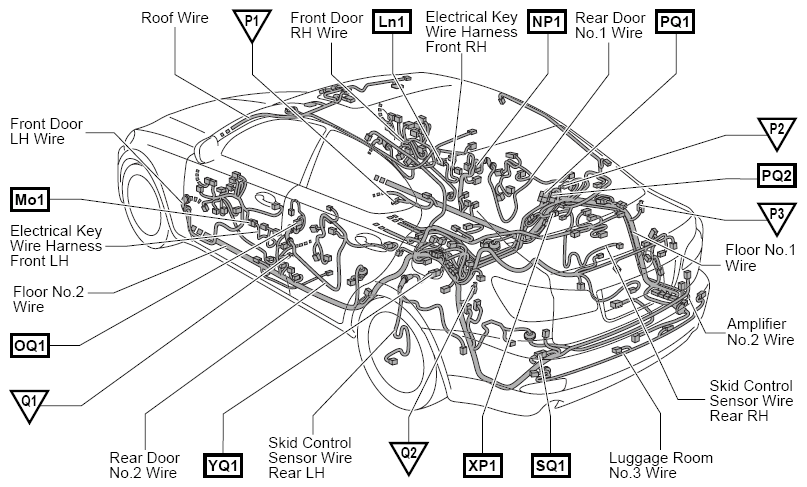

Fig 1: Locating Wiring Harness & Ground Points

G08927060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
