REAR PROPELLER SHAFT ASSEMBLY (for 4GR-FSE): Reassembly

1. INSTALL NO. 1 CENTER SUPPORT BEARING ASSEMBLY
   1. Set the No. 1 center support bearing assembly and 2 center support bearing washers on the intermediate shaft assembly as shown in Fig 1.
      Fig 1: Installing Center Support Bearing Washers

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Be sure to install the bearing in the correct direction.
   2. Align the matchmarks on the universal joint flange and intermediate shaft assembly, and place the universal joint flange on the intermediate shaft assembly.
   3. Install the intermediate shaft washer to the intermediate shaft assembly.
   4. Hold the intermediate shaft assembly in a vise between aluminum plates.
      Fig 2: Aligning Matchmarks On Universal Joint Flange & Intermediate Shaft Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not overtighten the vise.
   5. Using SST to hold the universal joint flange, press the No. 1 center support bearing assembly into the position by tightening a new nut.

      SST 09330-00021

      Torque: 182 N*m (1,850 kgf*cm, 134 ft.*lbf)

   6. Loosen the nut.
   7. Tighten the nut again.

      Torque: 69 N*m (700 kgf*cm, 51 ft.*lbf)

      Fig 3: Holding Universal Joint Flange Using SST

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   8. Using a chisel and a hammer, stake the nut.
   Fig 4: Staking Nut Using Chisel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL PROPELLER SHAFT ASSEMBLY

1. Align the matchmarks on the intermediate shaft flange and the propeller shaft flange, and install the shaft with the 4 bolts, washers and nuts.

Torque: 74 N*m (750 kgf*cm, 54 ft.*lbf)

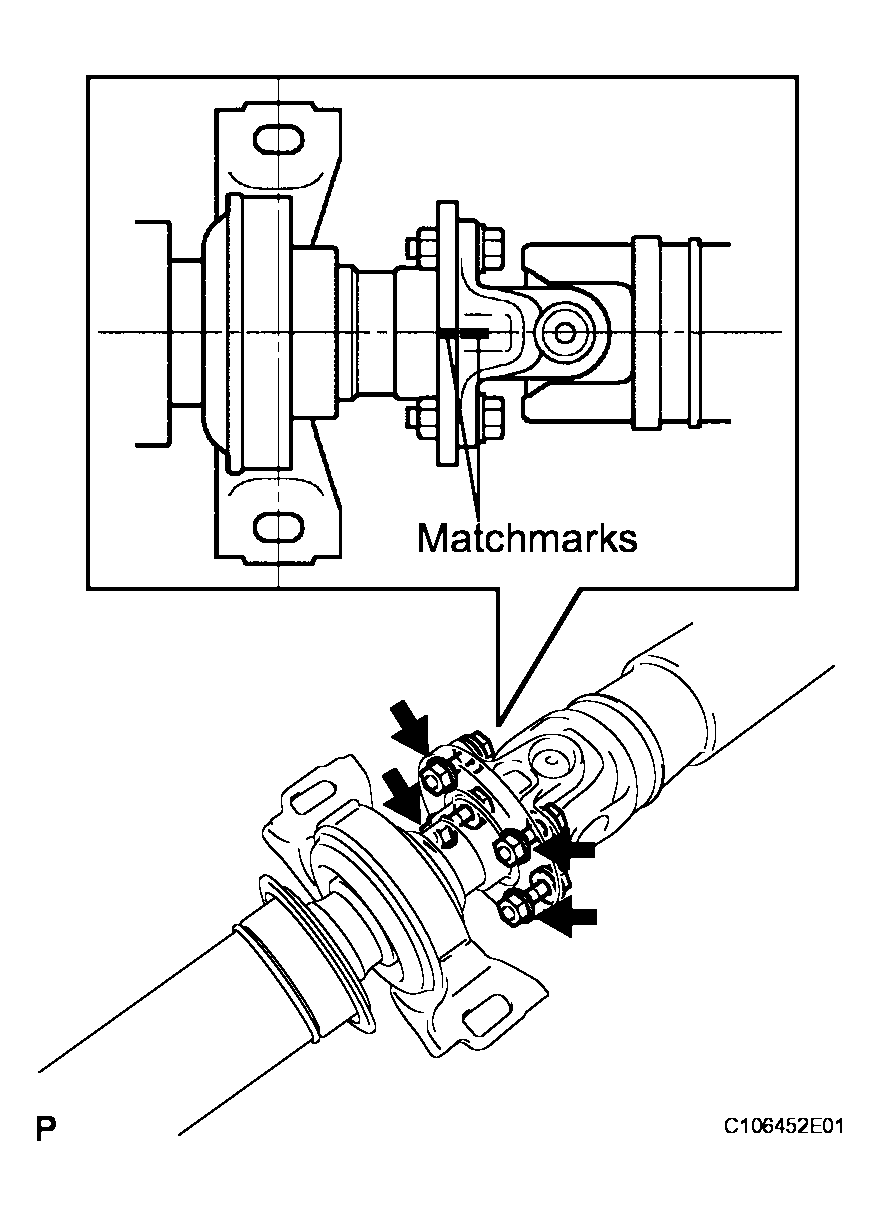

Fig 5: Installing Shaft With Bolts, Washers & Nuts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
